For the handling of metal chips (such as turning chips, milling chips) and metal shavings (long, coiled, and fluffy), a complete lifting, tilting, and baling solution must address four core issues: safety, efficiency, environmental protection, and automation.

Below is a systematic solution design, divided into several key sections:

I. Core Challenge Analysis
Safety Risks: Metal chips are sharp and can cause cuts; long, coiled shavings tend to entangle equipment; there is a risk of metal dust explosions (especially for aluminum, magnesium, etc.) during dumping and compression.
Material Characteristics: Fluffy, bulky, low density, poor flowability, making direct baling highly inefficient.
Process Flow: The need to transform dispersed, loose material into high-density, regular blocks for easy transportation and smelting.

II. Overall Process Flow
The typical process chain is:
Collection → Lifting/Transfer → Preprocessing → Tilting and Feeding → Compression and Baling → Finished Product Output

III. Detailed Step-by-Step Solution

>Collection: Metal chips or shavings produced during machining are conveyed via a drag chain conveyor into designated carts.

>Core Lifting and Tilting Feeding System

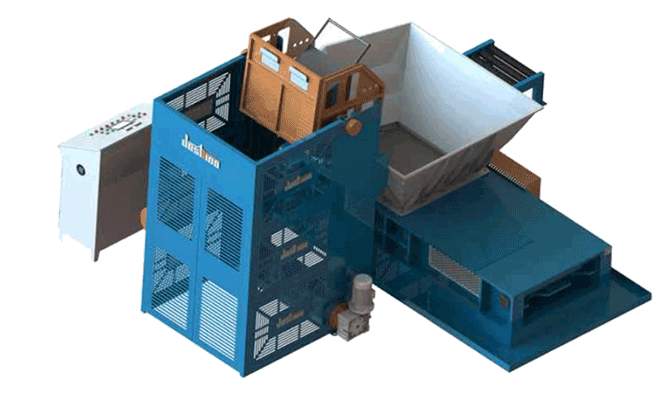

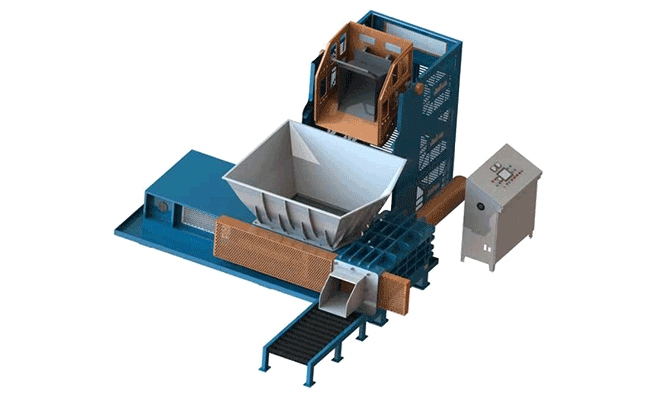

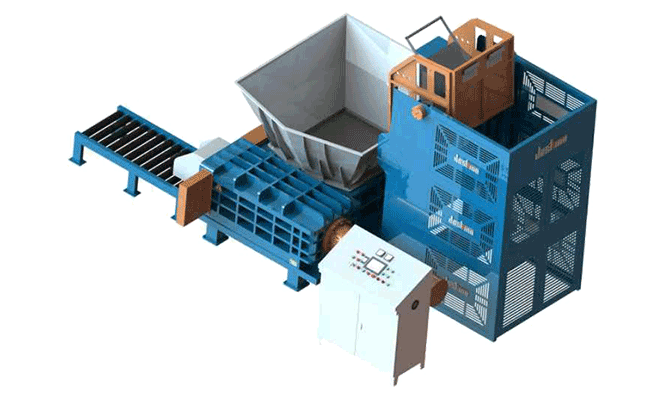

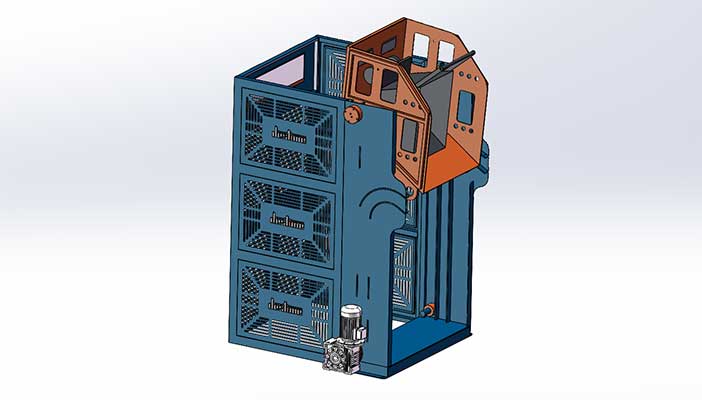

Solution: Skip Hoist

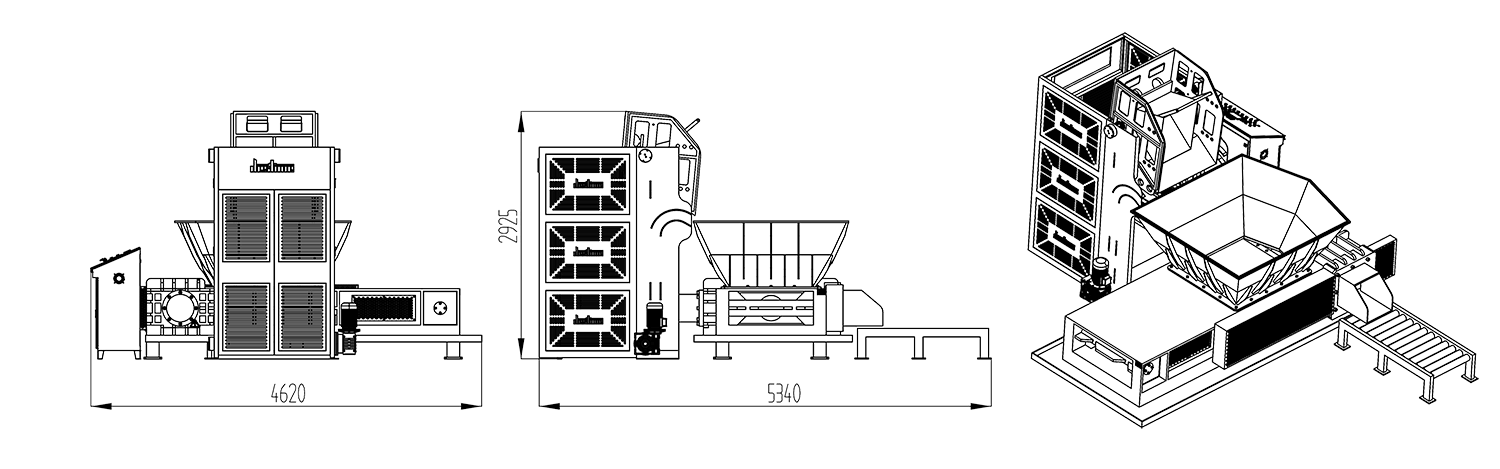

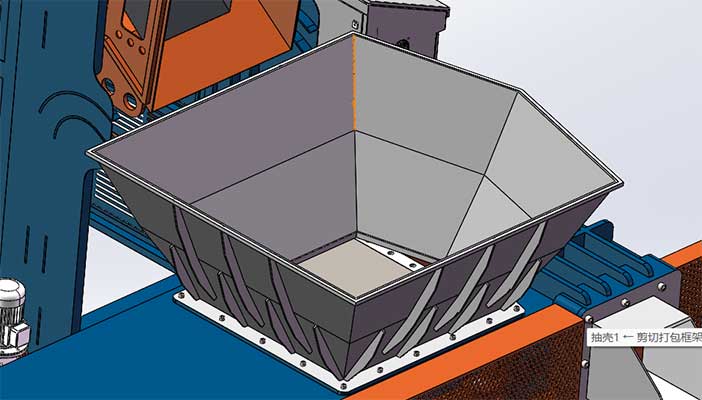

Process: Collected metal chips are deposited into designated carts; the carts filled with metal chips or shavings are pushed into the lifting and tilting system; this system lifts and tilts the carts to discharge the material into a shear baler with a feed hopper.

>Compression and Baling
Equipment: Hydraulic shear baler specifically designed for metal chips.
Side-Ejection Type: Common, where the compressed blocks are ejected from the side.
Key Parameters: Pressure (typically 200-600 tons), bale size (compatible with smelter furnace openings), compression ratio, degree of automation.

>Finished Product Output and Transfer

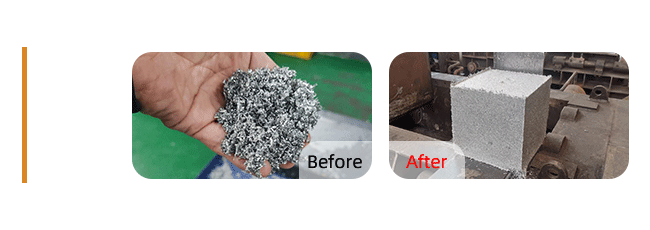

The compressed metal blocks (density up to 1-3 tons/cubic meter) are rolled out via a discharge table; they can slide down by gravity via a ramp or be transferred using a simple drag chain conveyor/pallet truck.

IV. Core Advantages and Considerations of the Solution
Advantages

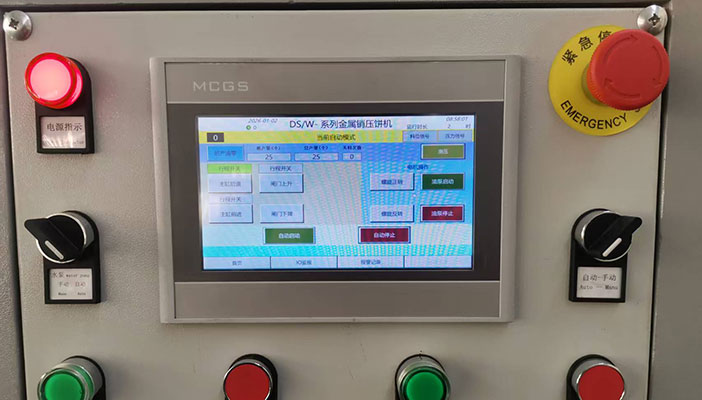

Fully Automated Process: Reduces manual contact with sharp metal chips, significantly improving safety.
Efficient Volume Reduction: Through pre-pressing and main compression, volume is reduced to 1/3–1/10, greatly saving transportation and storage costs.
Clean and Environmentally Friendly: Enclosed or semi-enclosed systems minimize dust and oil spillage, improving workshop conditions.
Increased Material Value: Bales have uniform density and stable moisture/oil content, making them more desirable for steel mills/foundries and commanding higher prices.
Space Saving: Reduces the storage area required for loose chips.

Key Considerations

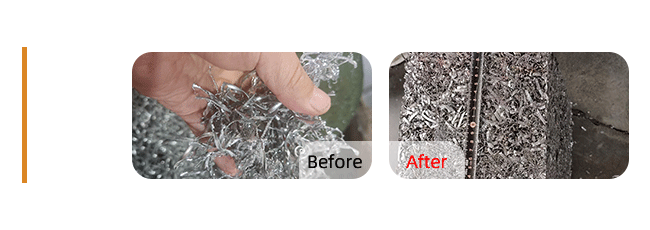

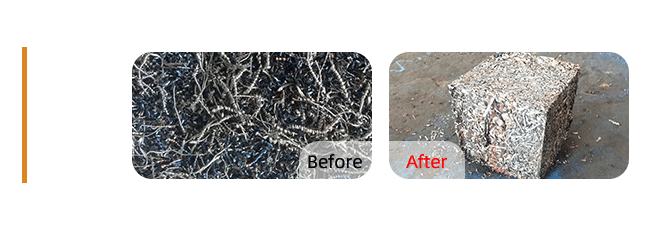

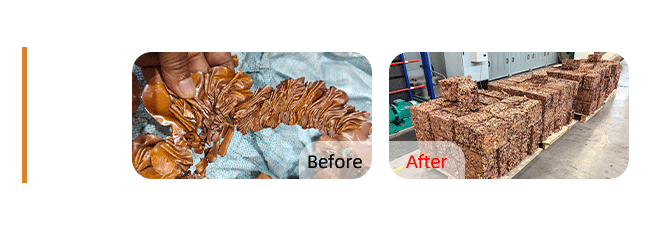

Material Segregation: Strongly recommend separating metal chips by material type (steel, iron, aluminum, copper, stainless steel). This is fundamental for enhancing recycling value and safety (explosion prevention).
Cooling and Fire Prevention: Hot chips generated from high-speed cutting require cooling before processing. Special explosion-proof and fire prevention designs are needed for aluminum-magnesium alloy chips.
Oil/Emulsion Handling: Wet chips may drip; oil collection tanks and filtration systems should be installed under the conveyor lines and baler. High oil content can affect bale quality.
System Compatibility: The flow rate of the hoist/conveyor must match the compression cycle of the baler to avoid clogging or idling. A buffer hopper is often necessary in the design.
Investment and Maintenance: This is a set of heavy-duty equipment with relatively high initial investment, requiring a professional maintenance team.

Conclusion
A successful metal chip lifting, tilting, and baling solution essentially involves designing a tailored material handling system. The core idea is preprocessing (pre-compression) and controlled tilting and feeding to overcome the challenges posed by the material's inherent characteristics. Before implementation, it is essential to communicate thoroughly with professional solid waste handling equipment suppliers, provide detailed material samples (type, shape, moisture content, output), and conduct on-site surveys to design the safest, most economical, and efficient solution.
