Overall Solution Flowchart

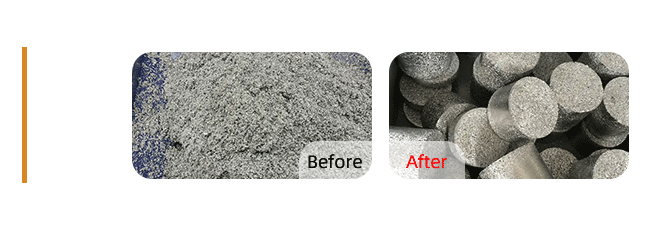

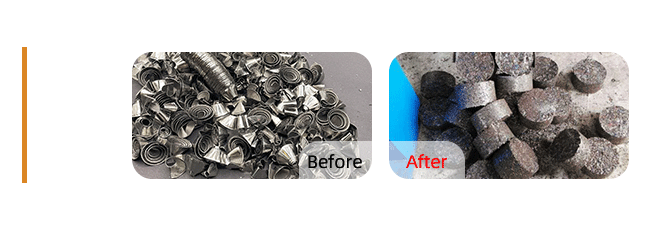

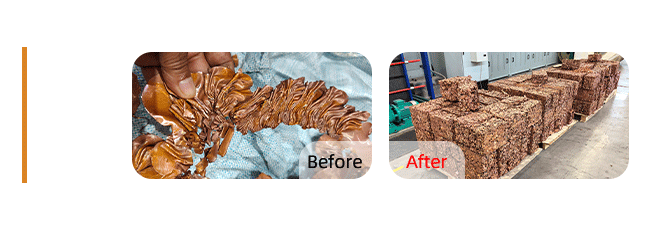

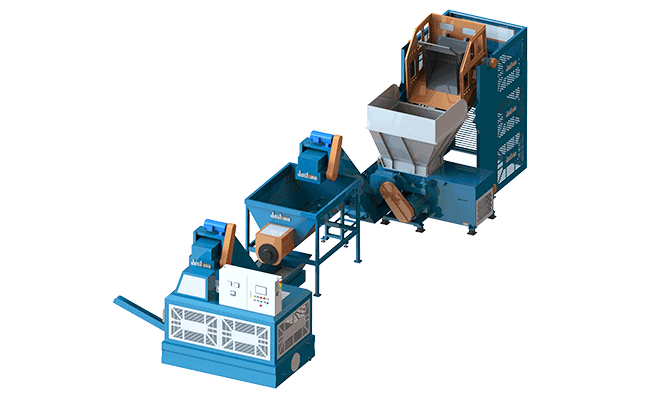

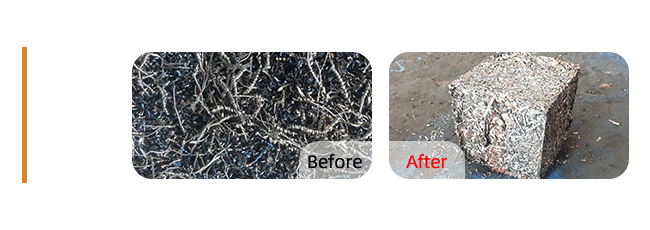

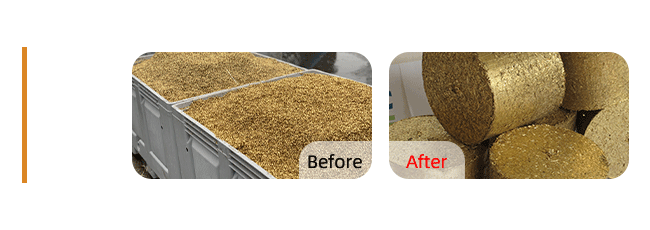

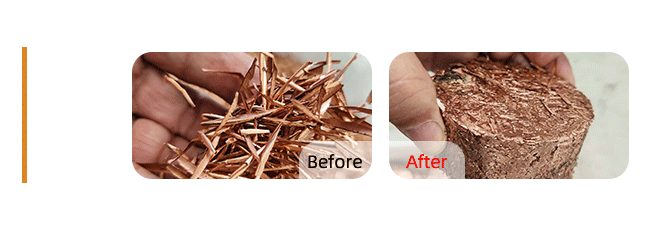

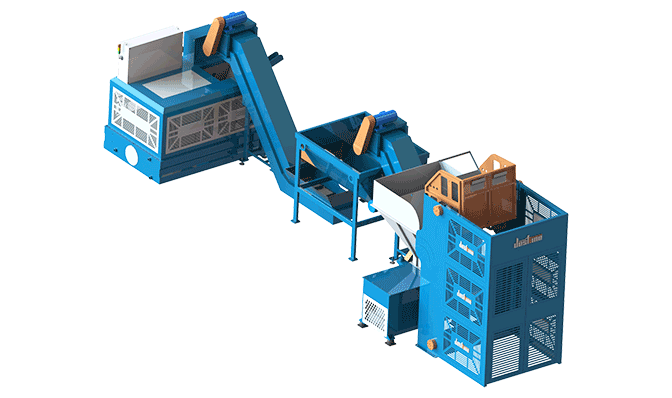

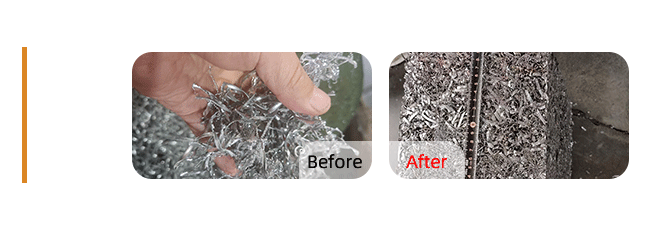

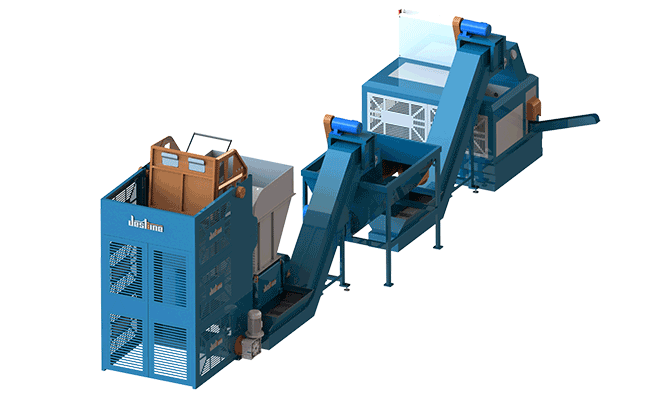

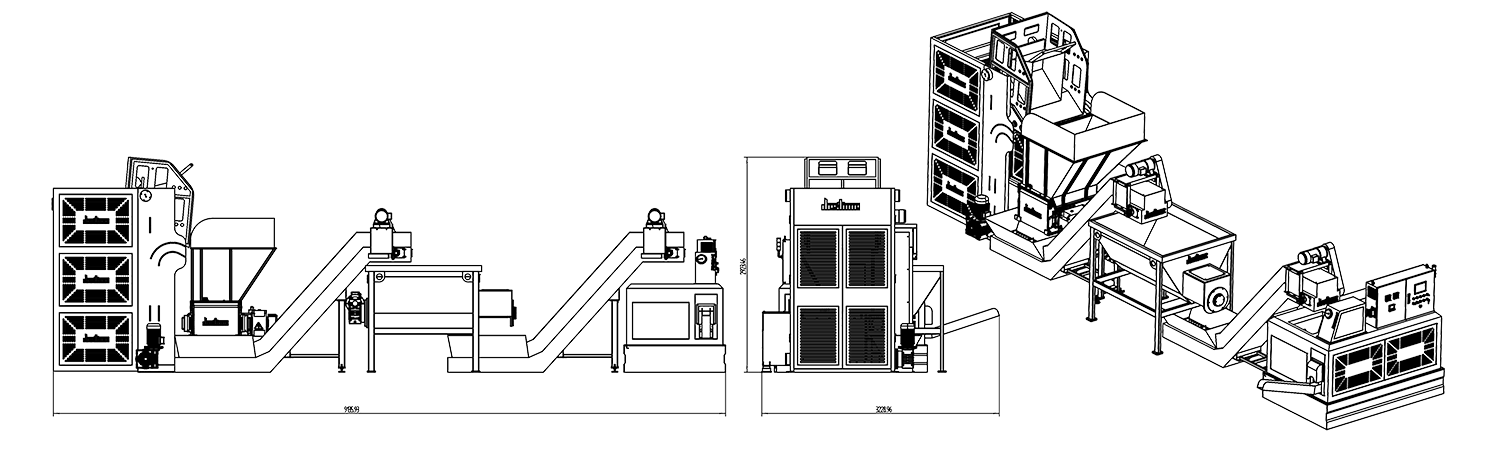

Metal Shavings Bin → Hydraulic Lifting and Flipping Machine → Inclined Loading → Heavy-Duty Metal Shredder → Crushed Shavings → Screw Conveyor/Elevator → Metal Press (Vertical or Horizontal) → High-Density Metal Briquettes → Automatic Discharge

Detailed Step-by-Step Explanation and Equipment Selection

Core Objective:

The metal shavings lifting, Flipping, shredding, and Briquetting solution transforms loose, tangled, and bulky metal shavings into high-density, regular, and easily transportable and smelting metal Briquettes through an automated process.

1.Lifting and Flipping Stage

Problem: Shavings are usually collected in large bins (hoppers), weighing a lot (up to several tons). Manual or forklift loading is inefficient and unsafe.

Solution: Hydraulic Lifting and Flipping Machine

Workflow:

-A forklift places the bin full of shavings onto the lifting platform of the Flipping machine.

-The hydraulic cylinder drives the platform to lift to the predetermined height (matching the shredder's feed inlet).

-The platform tilts forward or sideways (usually 110-130 degrees) to completely dump the shavings into the shredder's hopper.

Key Selection Points:

Load Capacity: Select according to the maximum weight of the hopper, allowing for a margin (e.g., 300kg, 500kg);

Flipping Angle: Ensure the hopper can be completely emptied;

Safety Devices: Must include a mechanical safety lock, fall arrestor, and emergency stop button.

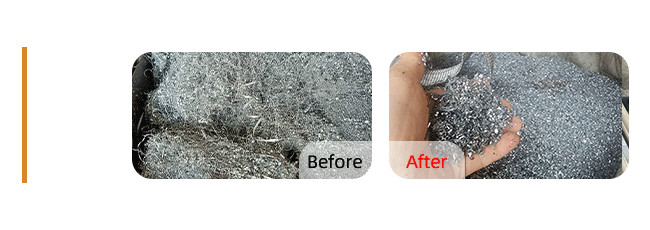

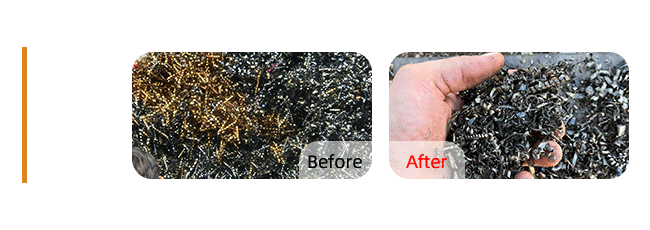

2.Shredding Stage

Problem: Long, clump-like shavings cannot be directly and efficiently pressed into Briquettes, easily jamming the press, and producing Briquettes with uneven density.

Solution: Heavy-duty single-shaft shredder

Key Selection Points:

Power: High-torque hydraulic motor or electric motor drive, with high torque to handle tangled materials;

Blade Material: Must be made of high-strength alloy tool steel, wear-resistant and impact-resistant;

Sealing and Bearings: Excellent dustproof design, suitable for metal shaving environments;

Intelligent Control: Equipped with automatic overload reversal and material blockage alarm functions.

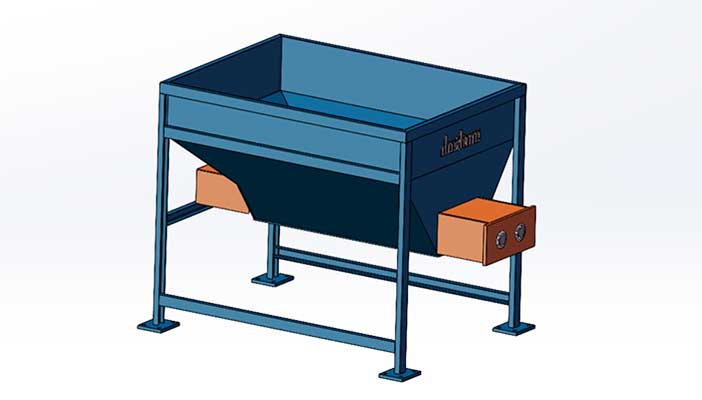

3.Conveying Stage

Problem: Shredded wood shavings need to be fed evenly and continuously into the patting machine.

Solution: Screw conveyor: Suitable for horizontal or small-angle conveying, good sealing to prevent shavings from spilling; Plate elevator: Suitable for scenarios requiring a larger vertical lifting angle.

Key Selection Points: Wear Resistance: The trough and screw blades need wear-resistant treatment (e.g., tungsten carbide coating); Matching Capacity: The conveying capacity needs to be slightly greater than the processing capacity of the shredder and patting machine.

4.Patting Forming Stage

Problem: Compacting the shavings into high-density, high-strength patties that are easy to stack and transport.

Solution: Metal Scrap Patting Machine

Type Selection: Vertical Patting Machine: Small footprint, cylindrical patties. Suitable for small to medium production capacity, easy maintenance.

Horizontal Patting Machine: Higher pressure, cuboid (brick-shaped) patties, easier to stack and store. Suitable for large-scale, continuous production.

Key Selection Considerations: Nominal Pressure: Typically requires 100-630 tons or higher; pressure determines cake density. Cake Size and Weight: Customized molds based on requirements; common cake weights range from 2-10 kg. Automation Level: Automatic weighing/metering feeding, automatic Briquetting and forming, automatic cake ejection. Hydraulic System: Stable and reliable, good pressure holding performance, energy-saving design (e.g., variable displacement pump).

Solution Advantages and Benefits Analysis

1.Safe and Efficient: Fully mechanized process, reducing manual handling, eliminating personal injury risks, and processing capacity can reach several tons per hour.

2.Increased Value: Reduced Transportation Costs: Volume compression ratio can reach 1:5 or even higher, greatly saving transportation space and costs; Increased Melting Profits: Less oxidation loss in pressed Briquettes (compared to loose shavings), uniform density, faster melting speed in the furnace, low energy consumption, and high yield.

3.Environmentally Friendly and Clean: Reduces cutting fluid dripping and metal shavings scattering, improves the workshop environment, and facilitates clean production.

4.Automation and Intelligence: Can be integrated with a PLC control system for one-button operation, fault monitoring, and output statistics.

Implementation Recommendations and Precautions

1.System Integration: It is recommended that the entire production line be designed and integrated by an experienced environmental protection equipment or resource recycling equipment manufacturer to ensure smooth connections between equipment and a unified control system.

2.Plant Requirements: Assess floor load-bearing capacity (especially the location of the shredder), vertical space (to meet the needs of the Flipping machine and elevator), and power capacity (for high-power equipment).

3.Cutting Fluid Treatment: If the shavings contain a lot of oil/cutting fluid, a centrifugal de-oiling machine or oil-draining conveyor section can be added after shredding to recover the oil, improve shred quality, and increase additional revenue.

4.Maintenance Plan: Shredder blades and shredder molds are core wear parts and require a regular inspection, grinding, and replacement plan.

5. Safety Training: Operators must receive comprehensive training, especially on equipment linkage, emergency stop, and lockout tagging procedures.

In summary, the "hydraulic Flipping feeding + heavy-duty shredding and crushing + automatic conveying and Briquetting molding" method is currently the most mature and efficient standardized solution for processing metal shavings. While the initial investment is high, it offers a rapid return on investment through improved operational efficiency, reduced overall costs, and increased sales revenue. It is a crucial component of modern machining workshops for achieving lean production and green manufacturing.

You can further refine the equipment parameters based on your company's specific raw material characteristics (material, length, oil content), average daily output, and factory conditions, and consult with professional manufacturers to obtain customized solutions.
