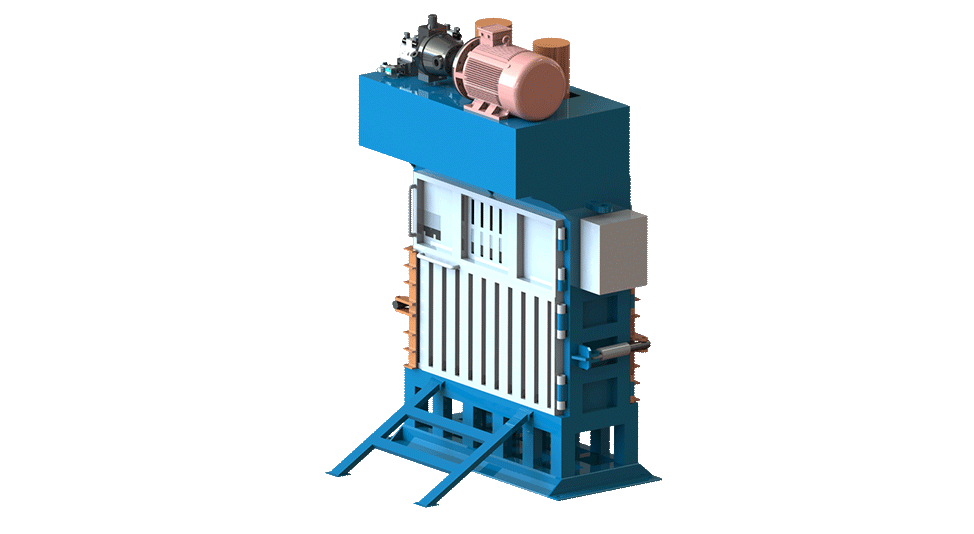

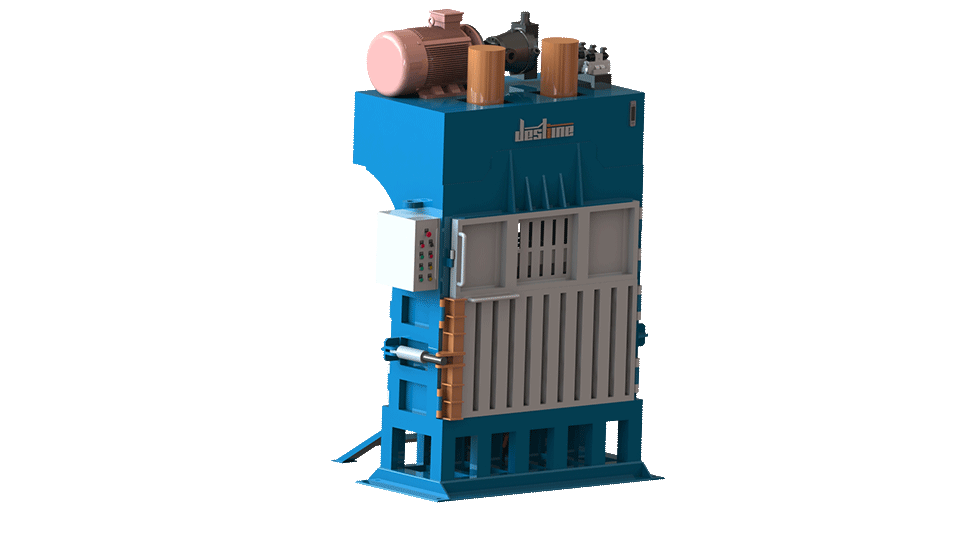

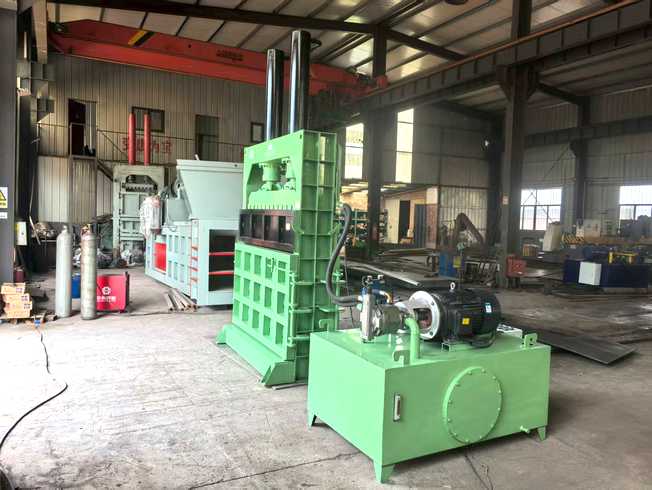

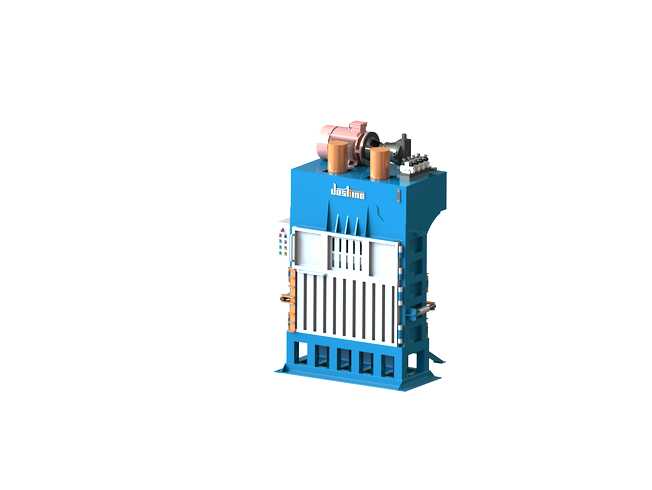

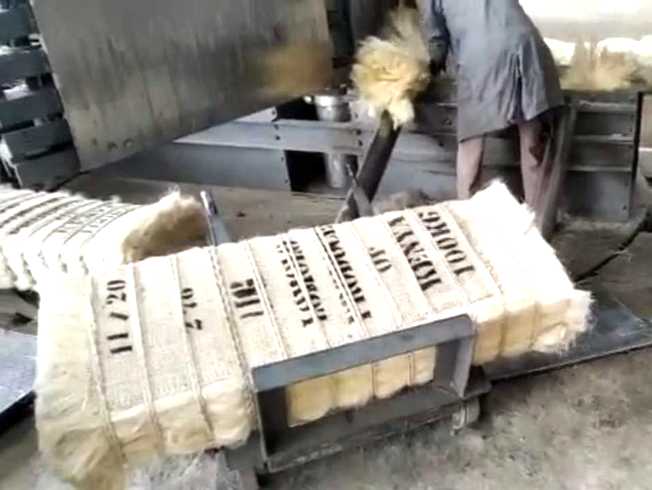

Vertical Natural Fiber Baler is a specialized machine designed to compress and bale natural fibers such as sisal fiber, coir fiber, and palm fiber into compact, manageable bundles for easier storage, transportation, and processing.

Model: DVD Series
Output Capacity: 8-10Bales/Hour
Application: Various of natural fiber such as sisal fiber, palm fiber, coir fiber, jute fiber etc..
Hotline:+86 188 1766 8272
Email:info@dersan.com
Video


Description


Vertical Natural Fiber Baler is a specialized machine designed to compress and bale natural fibers such as sisal fiber, coir fiber, and palm fiber into compact, manageable bundles for easier storage, transportation, and processing. These balers are commonly used in agricultural and industrial settings where natural fibers are harvested or processed.


Key Features of a Vertical Natural Fiber Baler:

1. Vertical Compression Design: Unlike horizontal balers, vertical balers load material from the top and compress it downward using a hydraulic ram; This design is ideal for handling bulky, fibrous materials that may be difficult to feed into horizontal systems.

2. High-Pressure Hydraulic System: Uses powerful hydraulic cylinders to compress loose fibers into dense bales (typically 100-200 kg or more); Ensures consistent bale density for better handling and transport efficiency.

3. Adjustable Bale Size & Density: Allows operators to customize bale dimensions and density based on end-use requirements (e.g., export standards, processing needs).

4. Durable Construction: Built with heavy-duty steel frames and wear-resistant components to withstand tough, abrasive natural fibers.

5. Easy Material Feeding:  Often includes a hopper or feeding chute at the top to allow manual or semi-automated loading of loose fibers.

6. Compact Footprint: Ideal for small to medium-scale operations where space is limited.


Advantages of Using a Vertical Natural Fiber Baler:

Reduces volume by up to 80%, saving storage and transport space;

Increases material value through standardized, market-ready bales;

Minimizes dust and fiber loss during handling;

Enhances safety and worker efficiency in processing facilities.


Considerations When Choosing a Vertical Natural Fiber Baler:

- Capacity: How much fiber per hour do you need to process?

- Bale Size & Weight: Must align with transport and buyer requirements.

- Power Source: Electric or diesel-powered? (Electric preferred for indoor use.)

- Maintenance Needs: Look for easy access to hydraulic systems and tie mechanisms.

- Safety Features: Emergency stop, guards, and proper training required.



Conclusion: Vertical natural fiber baler is an essential piece of equipment for anyone involved in the production, processing, or trade of sisal, coir, or palm fibers. It enhances operational efficiency, reduces logistics costs, and adds value to raw natural fiber products—making it a smart investment for sustainable agriculture and green manufacturing industries.



If you're looking to purchase or customize one, specify your fiber type, daily output, and bale specifications for optimal recommendations, we will suggest you best quote according to your requirement.


Parameters

Model

Chamber Size

Bale Size

Bale Weight

Motor Power

Machine Weight

DVD100

1530*360*1400mm

1530*360mm

100-220kg

22kw

3850kg

DVD120

1430*540*1400mm

1430*540mm

120-250kg

30kw

3970kg

DVD150

1350*750*1500mm

1350*750mm

150-300kg

37kw

4260kg

DVD200

1500*760*1500mm

1500*760mm

200-400kg

2*22kw

5520kg


Features

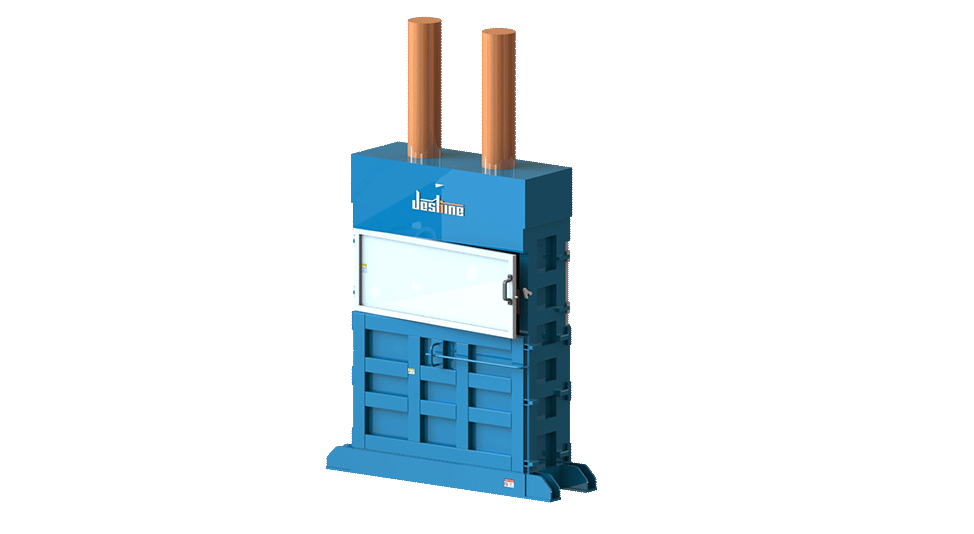

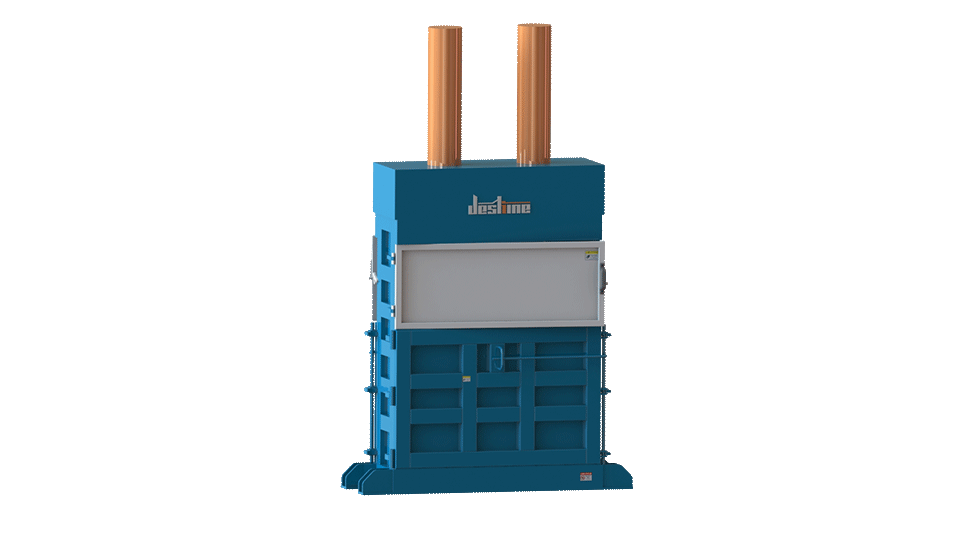

Double Door Design

Easy to Operate And Maintain

Famous Brand

HengYuan Oil Pump

Promise The Machine Run Smoothly




Application


FAQ



> How to install 100kg sisal fiber Baler?

For small baler , we will not disassemble it when shipping, you just need to add hydraulic oil and connect to the electrical power, then operate per user manual, that is OK, for bigger one, we will make detail marks when disassembling the machine, you just only need to assemble the machine per marks, that is alright; and you can contact with our technical team when you have any problems.



> What is pressing force of Hydraulic Baling Press Machine Coconut Fibre?

The pressing force of the  baler is different depends on different models, smaller machine has small pressing force, and bigger machines has big pressing force; and it is also determined by the material characteristics and bale density, our technical team will figure out and calculate the pressing force according to your requirements.



> What bale size does the Sisal Fiber Compactor Machine produce?

We can customize the bale size per your requirement, also you can tell us your requirement, we can suggest you suitable bale size accordingly.



> What is payment term of Coir Fiber Baler?

The payment of the baler  is 30% TT as deposit, and 70%TT balance paid 7 days before shipment, and LC is also acceptable, it is flexible depends on amount of the baler machine.



> How much pressing force of Hydraulic Palm Fiber Baler?

The pressing force of the baler is different depends on which model will you need, if you have small capacity, and small bale size and bale weight, then small baler is OK for you, and the pressing force is small accordingly, such as 100tons or 125tons.



> What brand of motor will you use on the sisal fiber baler Machine?

Will use china famous brand of Taizhou Taida motor on the baler machine, the motor is stable and durable, we also can use international brand of Siemens or other brands, we can customize the motor brand according to your requirement.



> What are the advantages of Sisal Baler?

Summary advantages of the baler: 1. Logistics & Space:Reduces volume by up to 90%; Creates stackable, uniform blocks; Frees up storage space.2.Economic: Lowers transportation and handling costs; Commands a higher price from scrap yards.3. Safety: Eliminates sharp edges and loose, shifting piles; Reduces fire risk.4.Operational Efficiency:Creates a cleaner workspace; Enables automation; Standardizes handling.



> What is output capacity of Automatic Sisal Fiber Baler Machine?

The baler capacity ranges from 6-10bales per hour, different models has different capacity, small models has small output capacity, and bigger one has big capacity accordingly, we also can customize the baler according to your special requirement.
