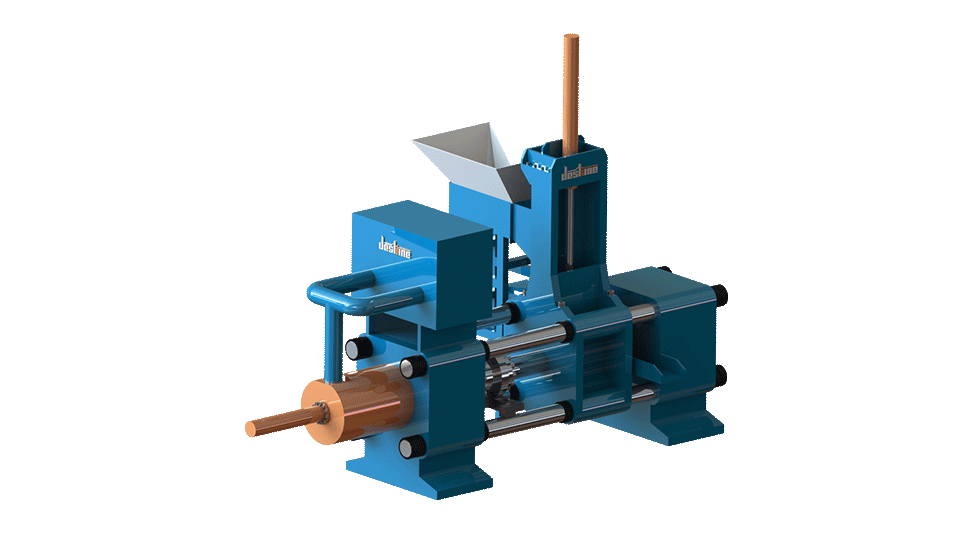

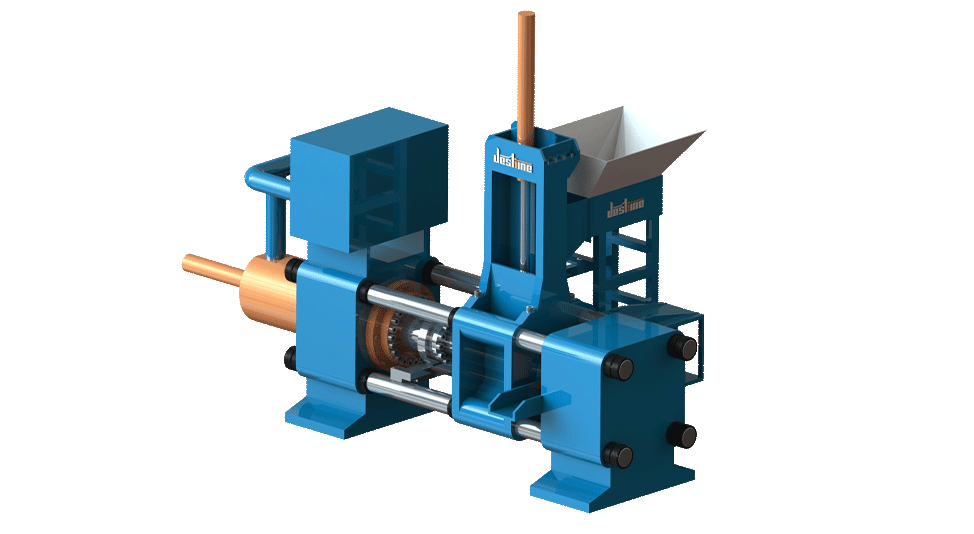

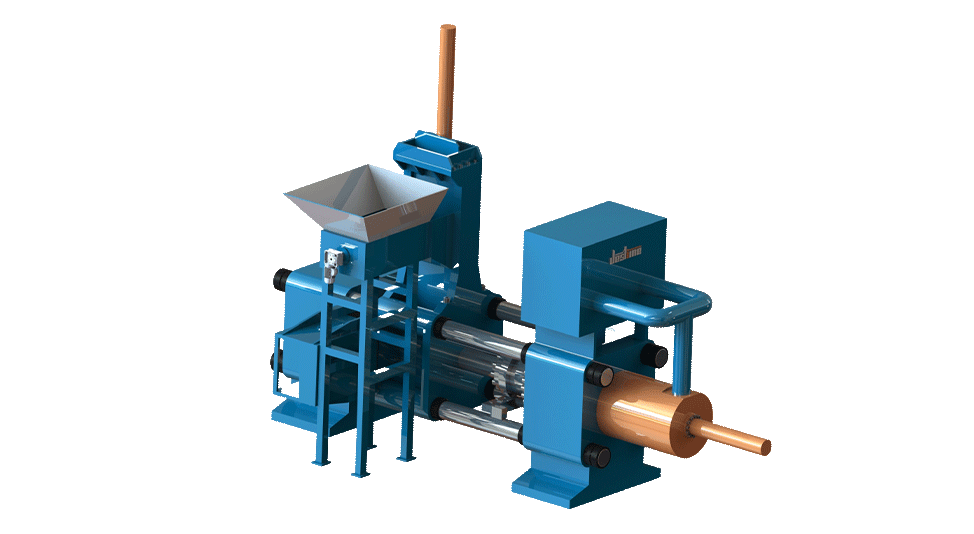

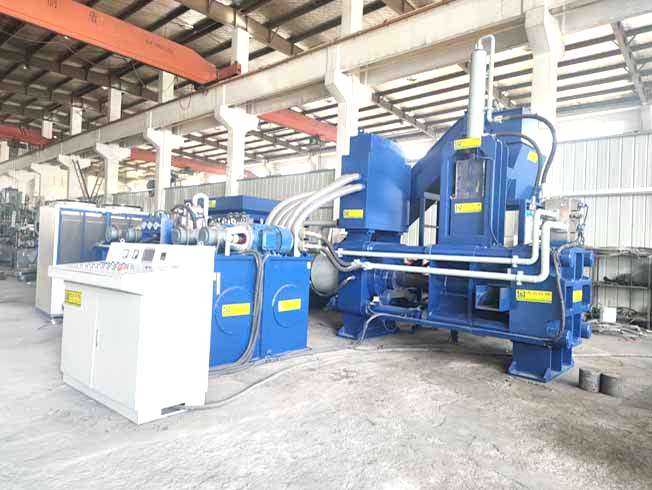

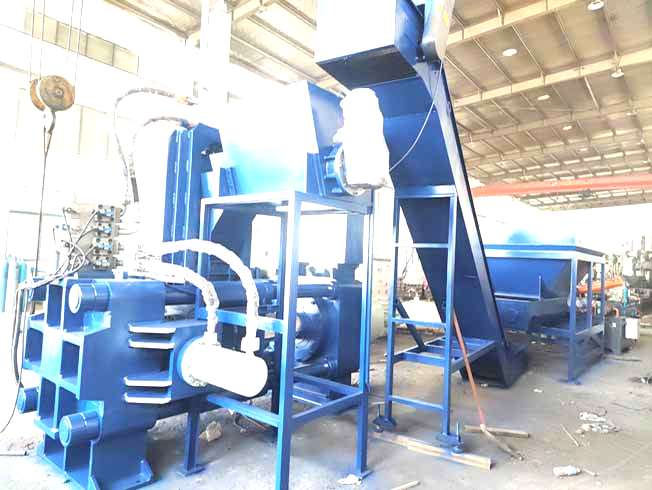

Horizontal Metal Chips Briquette Press is a specialized industrial machine used to compress metal chips, swarf, or turnings (typically from machining operations like milling, turning, or grinding) into dense, compact briquettes. These briquettes are easier to handle, store, transport, and recycle—making them highly valuable in metal recycling and scrap management.

Key Features of a Horizontal Metal Chips Briquette Press:

1. Horizontal Design: The pressing mechanism operates horizontally, which allows for efficient use of space and often better alignment of the die and ram, Typically includes a hydraulic system that pushes the piston horizontally into the die chamber.
2. High-Pressure Compression: Applies significant pressure (often 500–1500tons or more) to compact loose metal chips into solid briquettes, Ensures high density and structural integrity of the final product.
3. Die and Punch System: Customizable dies to produce briquettes of various shapes (e.g., cylindrical, rectangular) and sizes, High-strength tool steel dies designed to withstand repeated compression cycles.
4. Hydraulic Drive System: Uses hydraulic cylinders for consistent and powerful pressing force, Often equipped with variable speed controls and pressure sensors for process optimization.
5. Automatic Operation:Many models include automated feeding systems (e.g., conveyor belts or augers) to load chips into the press, Fully automatic cycle: feed → compress → eject → reset.
6. Material Compatibility: Suitable for ferrous metals (e.g., steel, iron), non-ferrous metals (e.g., aluminum, copper, brass), and mixed metal scraps, Some models can handle oily or wet chips with proper pre-treatment.

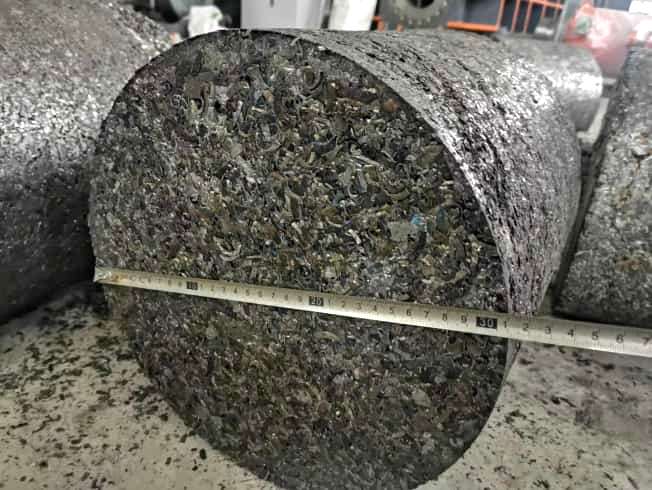

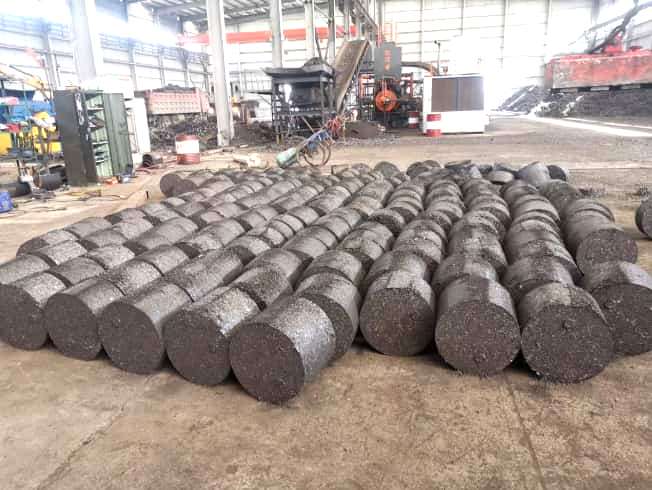

7. Briquette Output: Typical briquette size: 150–250 mm in length, 150-300 mm in diameter (customizable), Weight per briquette: 10–100 kg depending on design and material, Density increases by up to 80% compared to loose chips.
8. Safety & Control Systems: Emergency stop buttons, safety guards, and interlocks, PLC-based control panels for monitoring and adjusting parameters.
9. Integration with Recycling Systems: Designed to work with chip conveyors, dryers, crushers, and sorting systems, Reduces volume by up to 80%, lowering transportation and storage costs.

Benefits of Using a Horizontal Metal Chips Briquette Press:
- Reduces Scrap Volume: Saves warehouse space and lowers disposal costs.
- Improves Recycling Value: Dense briquettes fetch higher prices at scrap yards or smelters.
- Easier Handling & Transport: Uniform shape and weight simplify logistics.
- Environmentally Friendly: Supports sustainable metal recycling and reduces landfill waste.
- Increased Efficiency: Automates a key step in shop-floor waste management.

Common Applications:

- Automotive manufacturing;- Aerospace and defense industries;- Machine shops and CNC centers;- Metal fabrication and foundries;- Recycling facilities

Considerations When Choosing One:

- Production Capacity (kg/hour);- Chip Type & Moisture Content;- Required Briquette Size/Shape;- Automation Level Needed;- Space Availability;- Budget & Maintenance Requirements

If you're looking to purchase or install a horizontal metal chips briquette press, it's recommended to consult with manufacturers or suppliers who offer site assessments, technical support, and after-sales service.
