High-Efficiency Collaboration, Intelligent Future: In-Depth Analysis of an Aluminum Shavings Crushing and Briquetting Press Solution for a Zhejiang Client!

I. Project Background:

Pain Points and Transformation in the Traditional Aluminum Processing Industry

In the aluminum processing industry, the collection and processing of aluminum shavings has always been a thorny problem. Traditional decentralized processing methods suffer from large space occupation, low production efficiency, high labor costs, and numerous safety hazards. A leading aluminum processing company in Zhejiang Province faced the contradiction between capacity expansion and limited production space, urgently needing an innovative solution.

II. Innovative Solution:

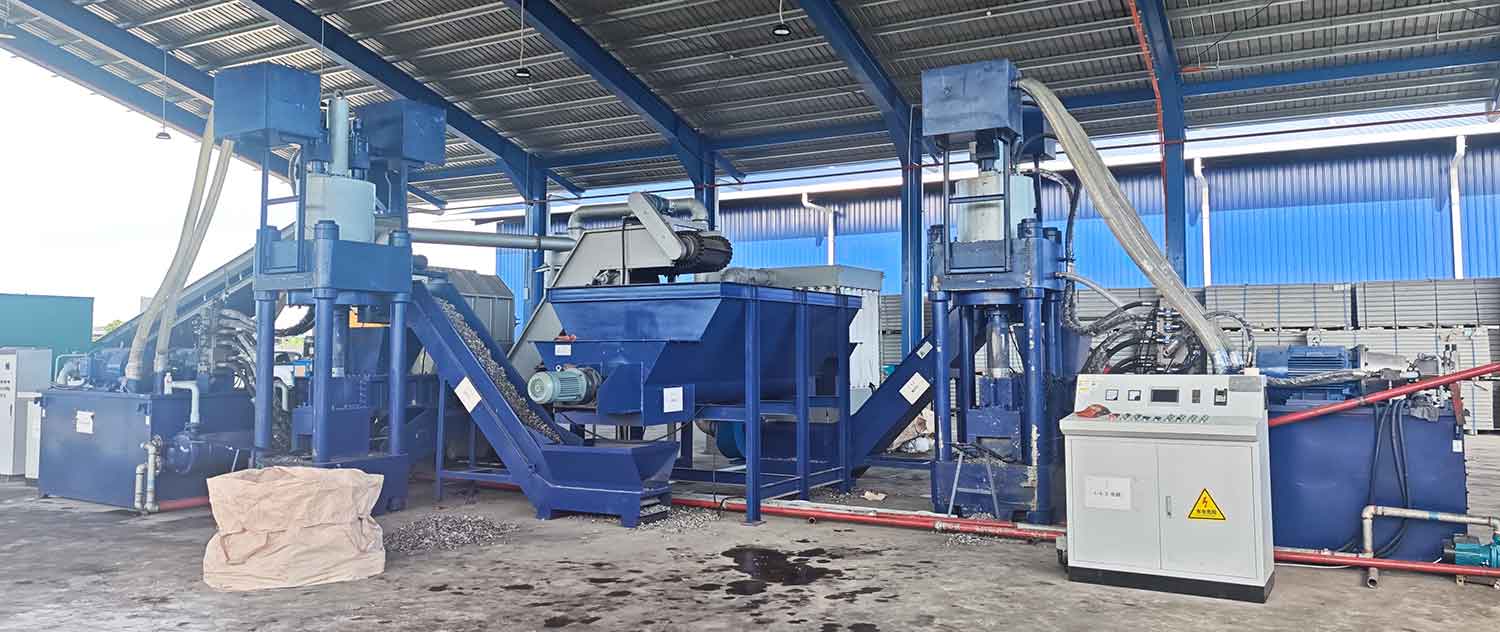

Centralized Feeding and Dual-Pattern System for Aluminum Shavings Crushing

Core Design Concept: Intensive and Intelligent Operation

Our customized aluminum shavings processing solution for this client, based on the three core concepts of "centralized processing, decentralized Briquetting Press, and intelligent control," achieves a dual breakthrough in space utilization and production efficiency.

System Architecture Analysis

1. Front-end Crushing Unit

-Employs a heavy-duty aluminum shavings crusher with a processing capacity of 3.5 tons/hour.

-Specially designed blade system optimized for aluminum properties to ensure uniform crushing.

-Low noise and dustproof design, meeting modern factory environmental standards.

2. Intelligent Centralized Feeding System

-Innovative single-hopper dual-path distribution design, breaking through the traditional single-machine single-material mode.

-Pneumatic conveying system ensures material flowability, avoiding blockages and accumulation.

-Real-time material level monitoring and automatic replenishment mechanism.

3. Dual-Pattern Parallel Workstation

-Two high-performance patter presses operate synchronously, independently controlled yet collaboratively.

-Adjustable patter density to adapt to different customer needs.

-Quick mold change design improves production flexibility.

4. Intelligent Control System

-Central control system based on Siemens S7-1500 series PLC

-Industrial IoT remote monitoring module, supporting PC and mobile access

-Data acquisition and analysis system, enabling digital management of the entire production process

III. Technological Breakthroughs and Innovation Highlights

Space Revolution: Intensive Design Philosophy

Traditional solutions require two independent crushing-conveying-Briquetting Press systems, occupying approximately 120 square meters. Our centralized feeding solution reduces space requirements to 65 square meters, saving over 45% of space and freeing up valuable production area for customers.

Leap in Efficiency: Path to Achieving 3 Tons/Hour Capacity

-Parallel Processing Mechanism: Two Briquetting Press machines operate simultaneously, theoretically achieving a maximum capacity of 4 tons/hour.

-Intelligent Scheduling Algorithm: Dynamically adjusts the feeding strategy based on the operating status of the two Briquetting Press machines.

-Zero-Wait Design: Seamless integration of crushing and Briquetting Press processes eliminates process waiting time in traditional solutions.

Deep Intelligence: Fully Automated PLC and Remote Control System

The system's intelligent control system not only automates equipment but also incorporates two advanced functions: predictive maintenance and energy efficiency optimization:

1.Adaptive Production Scheduling: The system automatically adjusts equipment operating parameters based on real-time capacity demands.

2.Fault Prediction and Diagnosis: Providing early warnings of potential faults through multi-dimensional sensor data such as vibration and temperature.

3. Remote Expert Support: Customer technicians can obtain remote technical guidance through a secure channel.

4.Energy Management System: Real-time monitoring of energy consumption in each unit, providing energy-saving optimization suggestions.

IV. Customer Value Realization: Quantitative Benefit Analysis

Production Efficiency Improvement

-Aluminum Shavings Processing Efficiency: Increased from 1.8 tons/hour in the traditional solution to 3 tons/hour, an increase of 67%.

-Labor Requirements: Reduced from 3 people per shift to 1 person for monitoring, reducing labor costs by 66%.

-Equipment Utilization Rate: Through intelligent scheduling, the overall equipment utilization rate reaches 92%.

Significant Economic Benefits

-Investment Recovery Period: Due to the significant increase in efficiency, the entire investment is expected to be recovered within 14 months.

-Space Value: The saved 55 square meters of production space, calculated based on local factory rent, saves approximately 80,000 yuan annually.

-Material Recycling Value: Increased briquette density, aluminum material... Recycling value increased by approximately 5%

Safety and Environmental Improvements

-The fully enclosed design significantly reduces dust pollution, lowering dust concentration in the working environment by 85%.

-Increased automation reduces the frequency of direct human contact with equipment, lowering the risk of safety accidents by 90%.

-Noise levels are controlled below 80 decibels, meeting national industrial noise standards.

V. Operational Scenario: The Daily Life of a Smart Factory

In the actual operation of the customer's factory, this system demonstrated excellent stability and adaptability:

Morning Start-up: Operators can start the system with a single button on the central control room touchscreen; the system enters working status within 5 minutes after self-checking.

Production in Progress: The crusher processes aluminum shavings from various machine tools, and the intelligent conveying system automatically distributes materials based on the status of the two Briquetting Press machines. The central control screen displays real-time operating parameters, production capacity data, and equipment status for each stage.

Anomaly Handling: When the system detects abnormal vibration, it automatically adjusts operating parameters and notifies maintenance personnel, avoiding the risk of a complete shutdown due to minor faults in traditional solutions.

Data Closed Loop: After daily production ends, the system automatically generates a production report, including key indicators such as output, energy consumption, and equipment uptime, providing data support for production management.

VI. Industry Implications: A New Paradigm for Intelligent Aluminum Processing

This successful case from a Zhejiang customer provides a replicable intelligent upgrade path for the aluminum processing industry:

1. The shift from single-machine automation to system intelligence

2. The application value of intensive design in space-constrained environments

3. Data-driven production optimization and decision support models

4. Remote intelligent operation and maintenance reduces reliance on on-site technical expertise

VII. Future Outlook: Continuous Iteration and Ecosystem Expansion

Based on the success of this project, we and the customer have begun planning a second phase of cooperation:

1.Artificial Intelligence Optimization: Introducing machine learning algorithms to further optimize production scheduling

2.Energy Recovery System: Studying the feasibility of converting mechanical energy into electrical energy during the Briquetting Press process

3.Supply Chain Integration: Directly connecting aluminum shavings production with downstream recycling companies to build an industrial closed loop.

4.Digital Twin System: Establishing virtual models of equipment for more accurate predictive maintenance.

Conclusion

The Zhejiang customer's centralized feeding dual-press shavings crushing solution is not only a successful example of equipment upgrades but also a model for the transformation of traditional manufacturing towards intelligent and intensive operations. It proves that through innovative system design and deep intelligence, breakthrough improvements in capacity and efficiency can be achieved within limited space.

Under the backdrop of "Made in China 2025" and Industry 4.0, this solution provides a referable upgrade path for the aluminum processing industry and even the entire metal recycling industry—not simply replacing equipment, but rethinking production processes and using systems thinking and intelligent technology to solve traditional problems.

We look forward to collaborating with more customers to explore the infinite possibilities of industrial intelligence.
