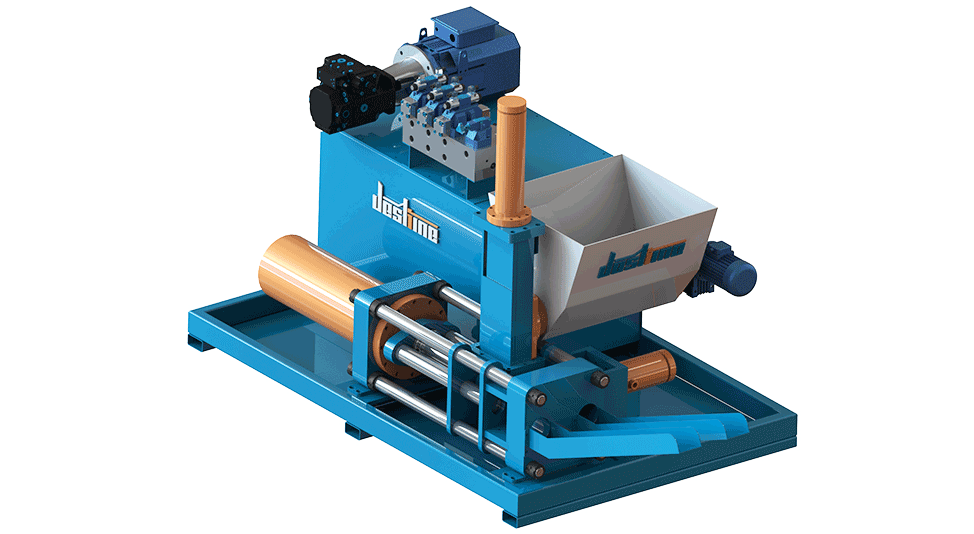

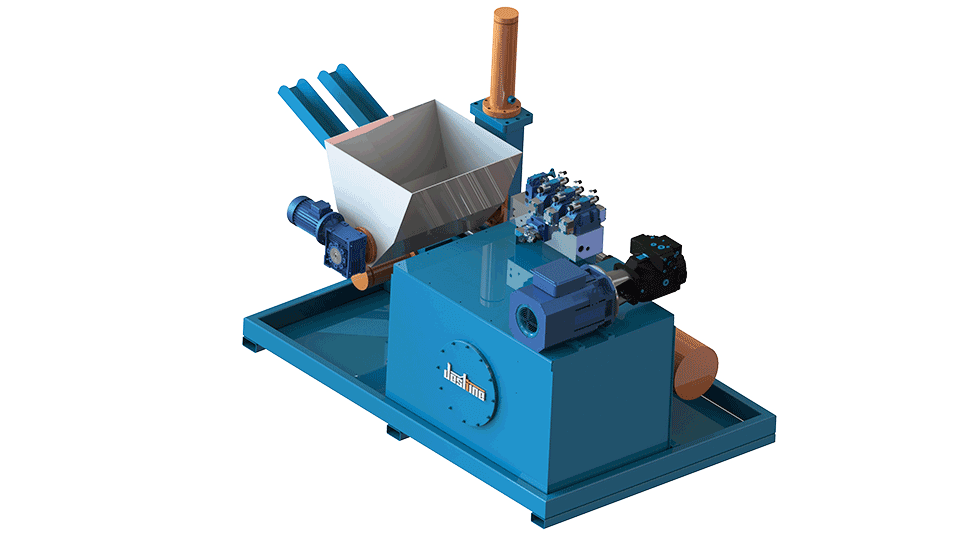

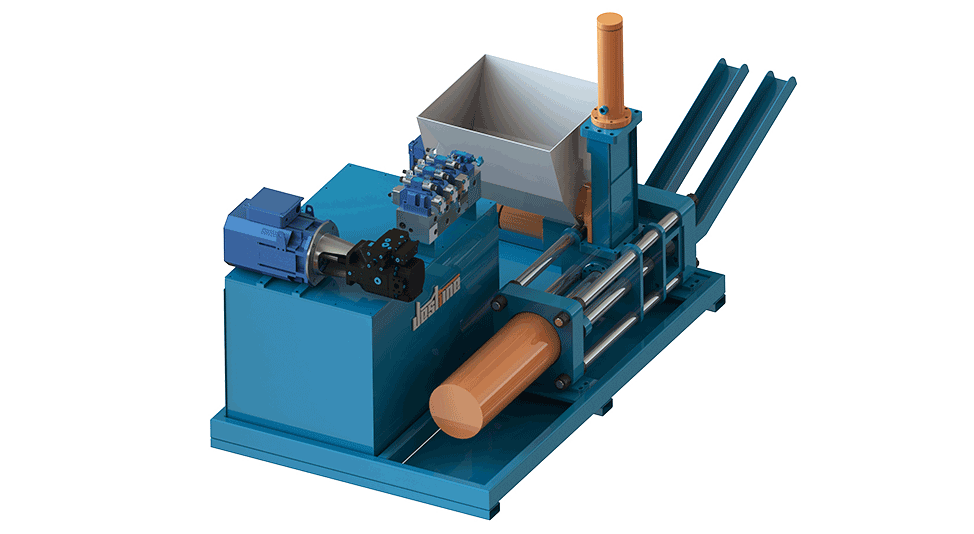

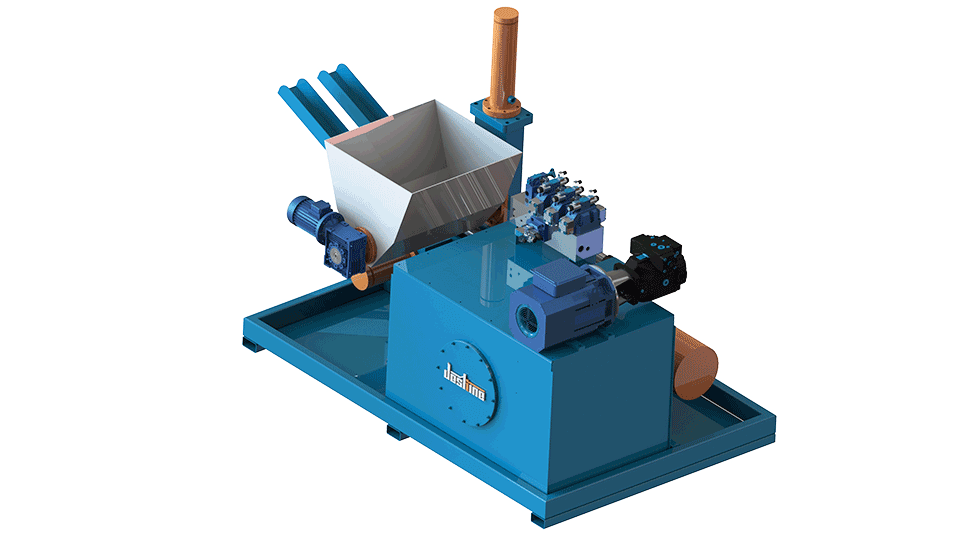

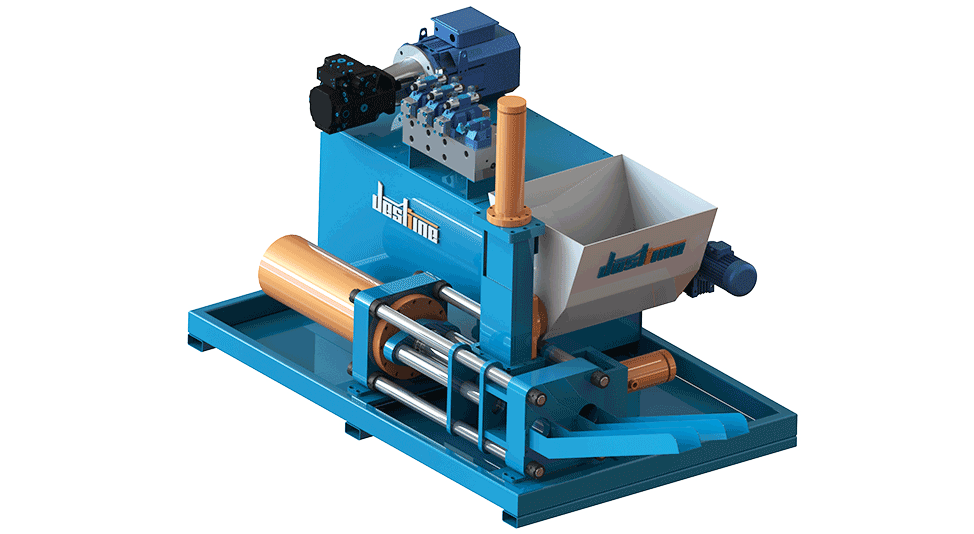

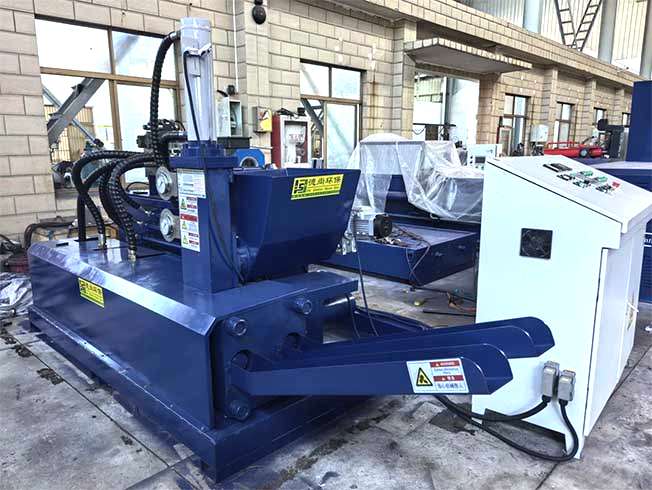

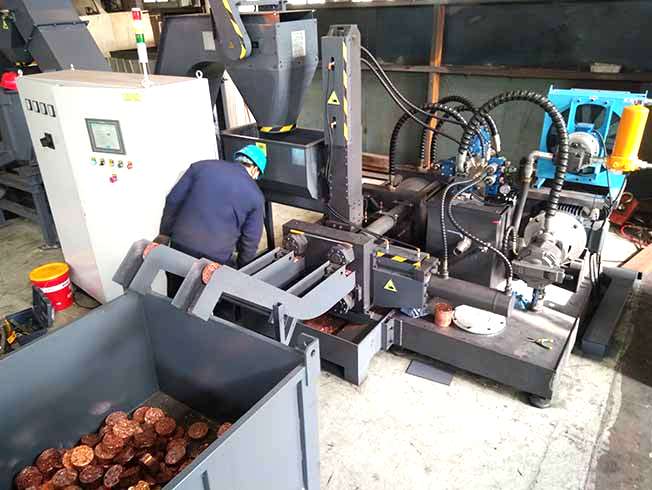

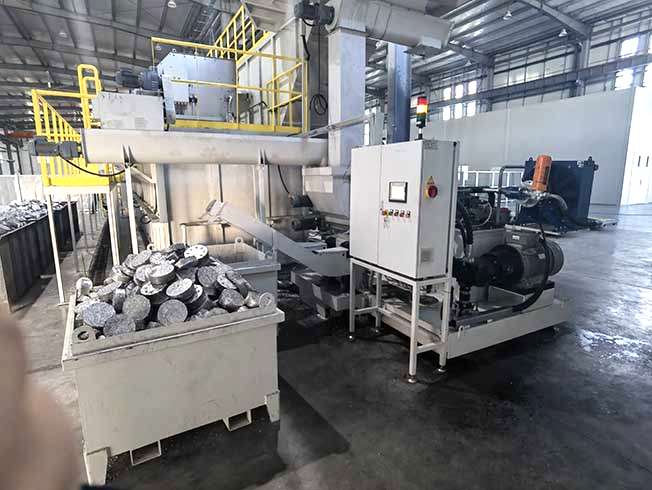

Double Output Metal Chips Briquette Machine is a specialized industrial equipment designed to compress metal chips (such as aluminum, copper, steel, brass, etc.) into dense, compact briquettes. The "double output" feature means the machine can produce two briquettes simultaneously

Model:DSD Series
Output Capacity:150-1000kg/Hour
Application: Various of metal chips such as aluminium chips, brass chip, copper chips, steel chips etc..
Hotline:+86 188 1766 8272
Email:info@dersan.com
Video


Description


Double Output Metal Chips Briquette Machine is a specialized industrial equipment designed to compress metal chips (such as aluminum, copper, steel, brass, etc.) into dense, compact briquettes. The "double output" feature means the machine can produce two briquettes simultaneously—increasing efficiency and throughput compared to single-output models.


Here’s a detailed overview of this machine:

Key Features:

1. Dual-Output Design: Simultaneously forms two briquettes in one cycle, Increases production capacity by up to 100% compared to single-output machines.
2. High Compression Pressure: Typically operates at 100–300 tons (depending on model), Ensures high-density briquettes with excellent structural integrity.
3. Automatic Operation: Fully automated feeding, pressing, and ejection, Reduces labor costs and improves safety.
4. Adjustable Briquette Size & Shape: Customizable dimensions (e.g., 80×80 mm, 100×100 mm, or custom sizes), Common shapes: rectangular, cylindrical, or square.
5. Energy Efficient & Low Maintenance: Uses hydraulic or electric drive systems with energy-saving features, Durable components designed for continuous operation.
6. Suitable for Multiple Metal and Ideal for processing: Aluminum chips, Steel turnings, Copper shavings, Brass scrap, Stainless steel fragments.
7. Environmental Benefits: Reduces scrap volume by up to 80%, Facilitates easier recycling and higher resale value, Minimizes storage space and transportation costs.


Applications:

- Automotive manufacturing;- Aerospace component production;- Machinery and metal fabrication shops;- Recycling centers;- Foundries and smelters


Why Choose a Double Output Model?
Higher productivity with lower operating cost per unit, Better ROI due to faster payback from increased scrap value, Space-saving design with high output density.
Maintenance Tips: Regularly lubricate moving parts and hydraulic systems, Clean die cavities after each shift to prevent clogging, Inspect wear plates and punches periodically, Use consistent chip size for optimal results.


Conclusion:
The Double Output Metal Chips Briquette Machine is a smart investment for any metalworking facility aiming to streamline scrap management, reduce waste, and improve recycling efficiency. It boosts operational efficiency while supporting sustainability goals.
Let me know if you’d like help comparing models, pricing, or finding suppliers!

Parameters

Model

Briquette Size

Briquette Weight

Output

Motor Power

Machine Weight

DSD100

Ø80-100*(80-100)mm

0.8-3.4kg

4-5 Pieces/Min

18.5kw

2850kg

DSD150

Ø100-120*(80-100)mm

1.5-5.3kg

4-5 Pieces/Min

22kw

4360kg

DSD200

Ø110-130*(80-100)mm

2.1-7.2kg

4-5 Pieces/Min

30kw

5860kg

DSD250

Ø120-140*(80-100)mm

2.5-7.9kg

4-5 Pieces/Min

37kw

6520kg

DSD360

Ø130-150*(80-100)mm

2.8-9.2kg

4-5 Pieces/Min

2*22kw

7530kg

DSD500

Ø150-180*(80-100)mm

4.2-13.5kg

4-5 Pieces/Min

2*37kw

11250kg


Features



Remote Control

Remote Service

Kunlun Tongtai Touchscreen For Remote Monitoring And Problem Solving

Famous Brand

HengYuan Oil Pump

Promise The Machine Run Smoothly

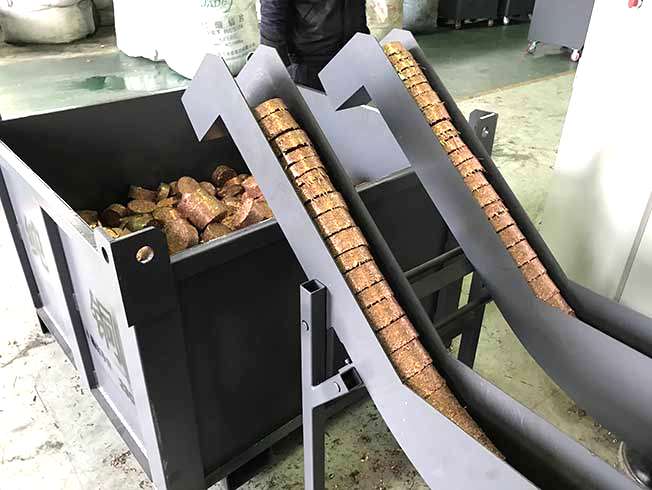

Double Output Design

Intelligent, High Efficiency And Output

High Copression Rate

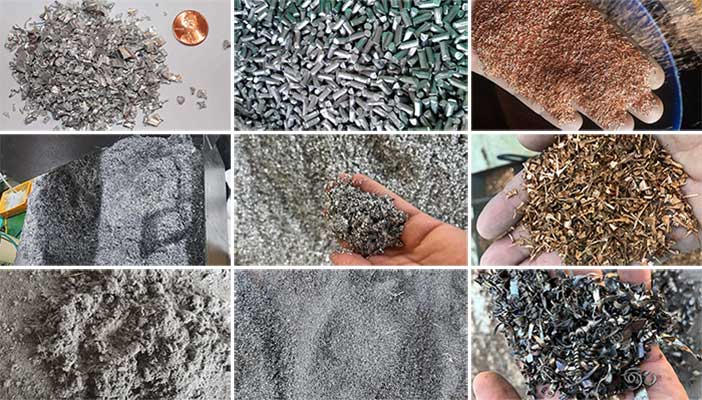

Suitable for All Short Metal Chips

Compression Rate Up To 10:1,Suitable for all kinds of Short Meal Chips

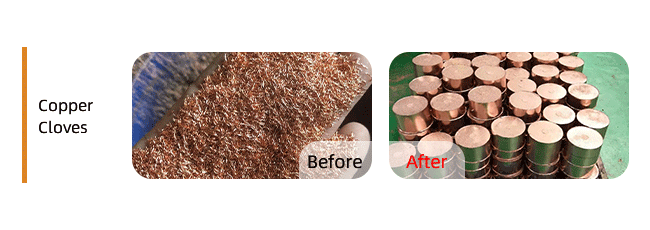

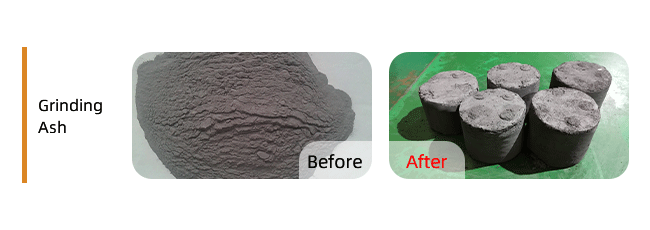

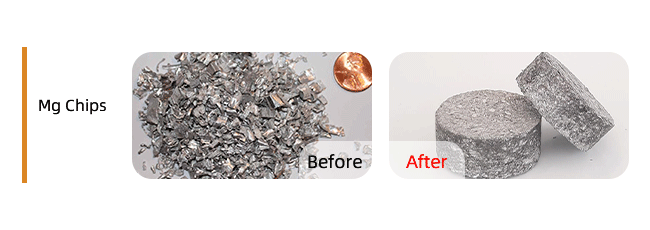

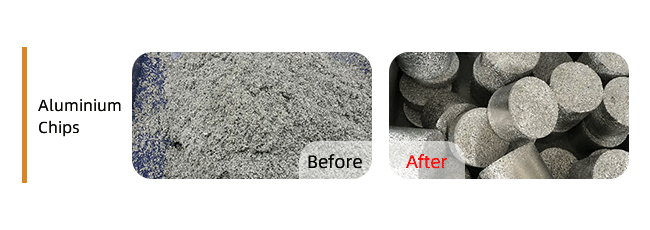

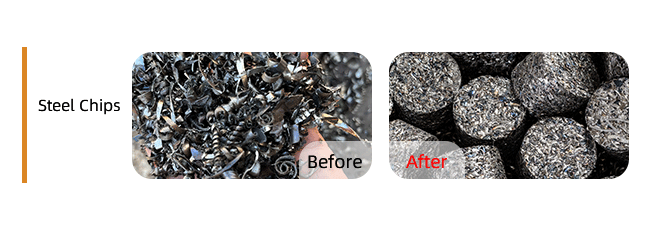

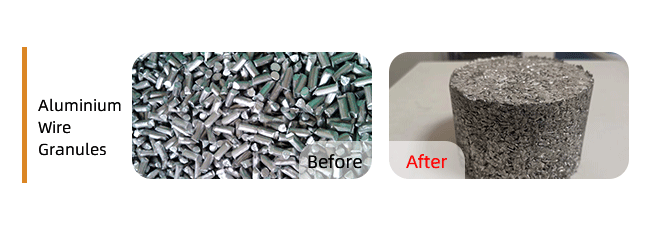

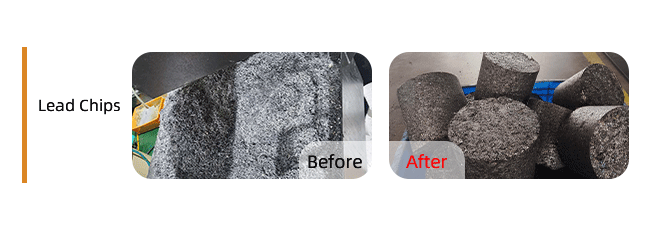

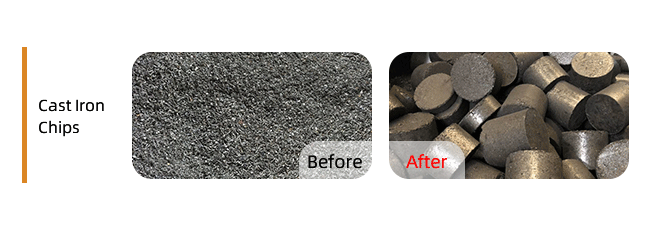

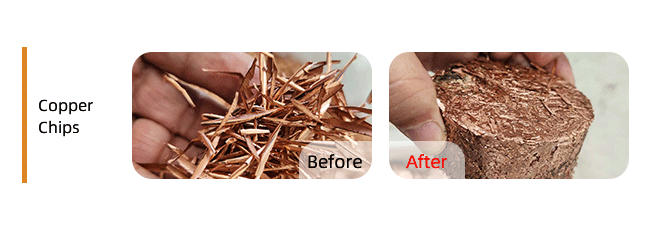

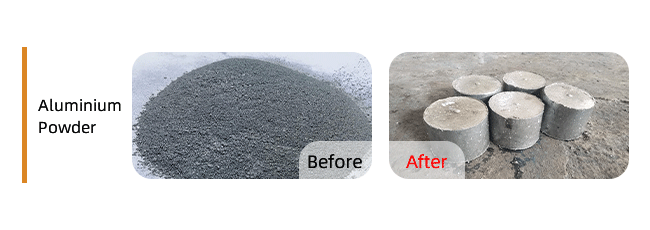

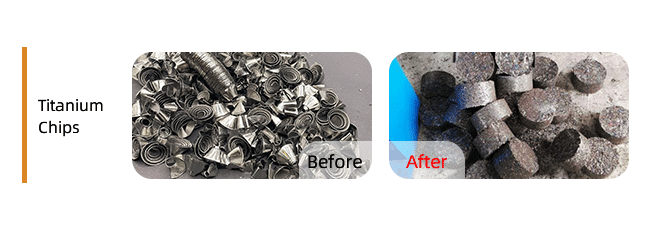

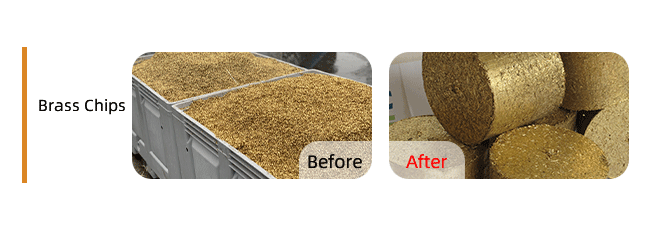

Application


FAQ



> What are the advantages of Steel Chip Briquette Press Machine?

Summary advantages of the briquette press: 1. Logistics & Space:Reduces volume by up to 90%; Creates stackable, uniform blocks; Frees up storage space.2.Economic: Lowers transportation and handling costs; Commands a higher price from scrap yards.3. Safety: Eliminates sharp edges and loose, shifting piles; Reduces fire risk.4.Operational Efficiency:Creates a cleaner workspace; Enables automation; Standardizes handling.5.Environmental:Promotes recycling; Contains fluids; Lowers transportation emissions.In conclusion, a briquette press is not just a machine for compressing scrap; it's a strategic investment that improves a company's bottom line, operational safety, and environmental footprint by turning a problematic waste material into a clean, dense, and valuable product.


> Are you a manufacturer or a trader of Metal Iron Powder briquetting machine?

We are true manufacturer of baler machine, we have our own technical team, R&D team, have many processing machines,we can have a video meeting to tour our factory, and also you are warmly welcome to visit our factory personally.


> What briquette weight can the Waste Metal Chip Briquetting Press make?

Normally speaking, the briquette weight ranges from 0.2kg to 30kg, it vary according to your metal scrap and your requirement, we have standard briquette size and bale weight, can send you the catalogue for your reference.


> What is price of Metal Scraps Chips Briquetting Machine Sales In Usa?

As for the price of the briquette press, first, you need to know what kind of briquette press machine will you need according to your hour or day output capacity, further more, you also need to consider the future capacity, finally you will figure out which model of briquette press will be suitable for you, and we will send you details quote and layout according to your existing and future output capacity.


> Does the installation of Hydraulic Aluminum Chips Briquetting Press require drilling and bolting into the floor or can stand without drilling?

Regarding the drilling or not, it depends on the type of briquette press, for vertical briquette press machine, most of vertical baling machine needs drilling and bolting, because it is vertical type, and weight center of the machine is high; and for horizontal briquette press, it no need foundation, drilling and bolting, just put it on horizontal cement ground with thickness more than 150mm.


> What grade of steel does the Vertical Briquette Press For Brass Chips use on the briquette press?

We use China Standard grate steel Q235 to assemble the main frame of the briquette press machine, and we also can make the machine per your requirement.


> What brand of motor will you use on the Metal Swarf Hydraulic Briquetting Press?

Will use china famous brand of Taizhou Taida motor on the briquette press machine, the motor is stable and durable, we also can use international brand of Siemens or other brands, we can customize the motor brand according to your requirement.
