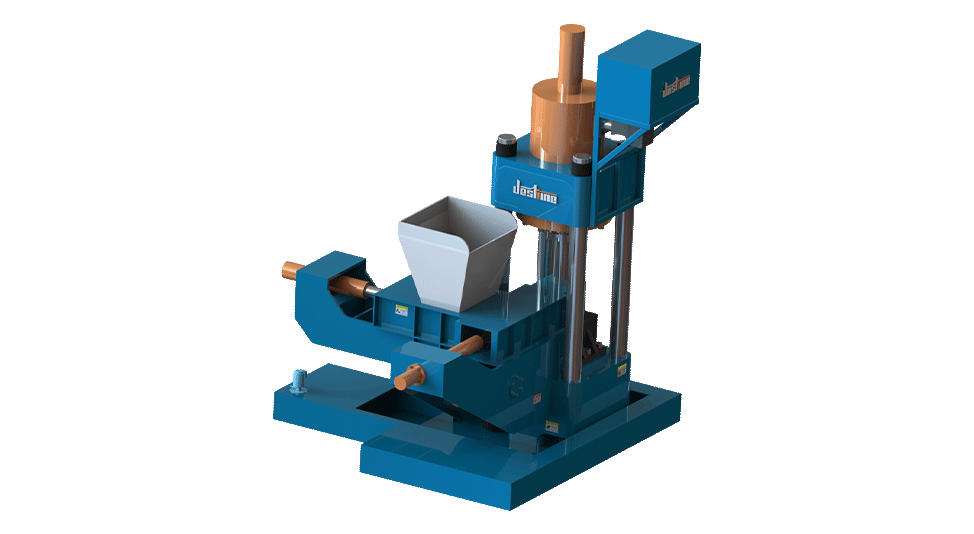

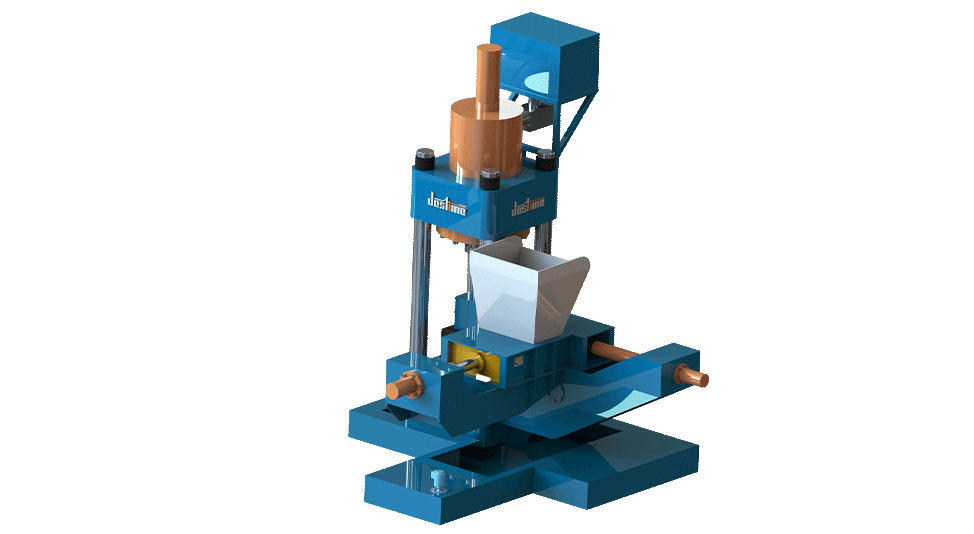

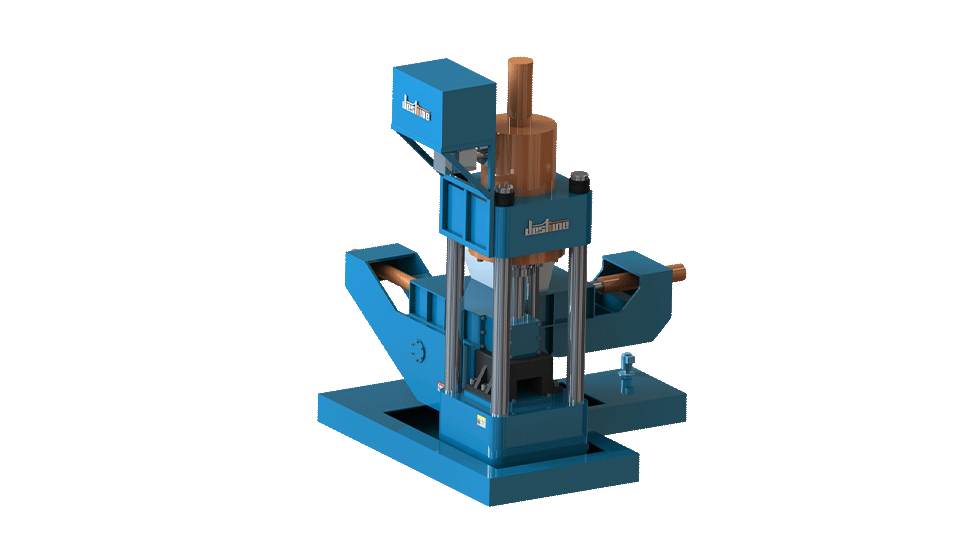

Vertical Pre-Press Metal Chips Briquetting Machine is a specialized industrial machine used in metalworking and recycling industries to compress loose metal chips, swarf, or turnings into dense, manageable briquettes. This process enhances material handling, storage, transportation, and resale value—especially important in scrap metal recycling.

Here's a detailed overview of the machine:

Key Features & Functions:

1. Vertical Design: The hydraulic press operates vertically (upward compression), allowing for compact installation, Ideal for facilities with limited floor space.
2. Pre-Press Stage (Optional but Common): Before final compaction, the machine often includes a pre-press chamber that removes excess oil and air from the metal chips, Improves briquette density and reduces contamination.
3. High Compression Force: Typically uses hydraulic systems capable of generating pressures between 150-630 tons, Produces briquettes with high density (often 2–7 g/cm³), reducing volume by up to 80%.
4. Automatic Operation: Fully automated cycle: loading → pre-press → main pressing → ejection → ready for next cycle, PLC (Programmable Logic Controller) for precise control and monitoring.
5. Briquette Shape & Size: Standard shapes: cylindrical or rectangular blocks, Customizable dimensions based on customer needs (e.g., 150x150 mm, 200x200 mm), Uniform size ensures consistent melting in furnaces.
6. Oil & Coolant Recovery: Many models include oil drainage systems to collect coolant and lubricants from chips, Enhances recyclability and environmental compliance.
7. Robust Construction: Heavy-duty steel frame, wear-resistant die and ram components, Designed for continuous operation in harsh environments.

Applications
- Machining Shops: For turning, milling, drilling, and grinding operations.
- Automotive Industry: Recycling aluminum, steel, and brass chips.
- Aerospace & Defense: Processing high-value alloy swarf (e.g., titanium, Inconel).
- Recycling Centers: Turning scrap metal into marketable briquettes.

Benefits
- Reduced Storage Space: Up to 80% volume reduction.
- Lower Transportation Costs: Dense briquettes are easier and cheaper to ship.
- Higher Resale Value: Clean, uniform briquettes command premium prices.
- Improved Safety: Prevents fire hazards associated with loose metal dust.
- Environmental Compliance: Minimizes waste and supports circular economy goals.

Tips When Choosing One:
- Match capacity to your chip output.
- Consider material type (aluminum, steel, stainless, etc.) — some machines are optimized for specific metals.
- Look for models with integrated oil recovery if coolant use is high.
- Ensure after-sales service and spare parts availability.

The Vertical Pre-Press Metal Chips Briquetting Machine is an essential investment for any metal fabrication or recycling facility aiming to improve efficiency, reduce costs, and increase profitability through sustainable practices.
