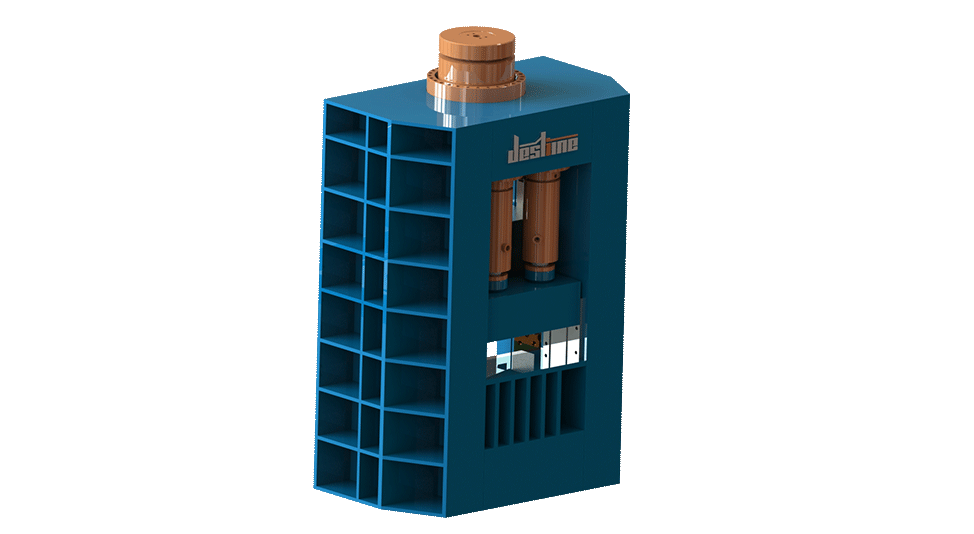

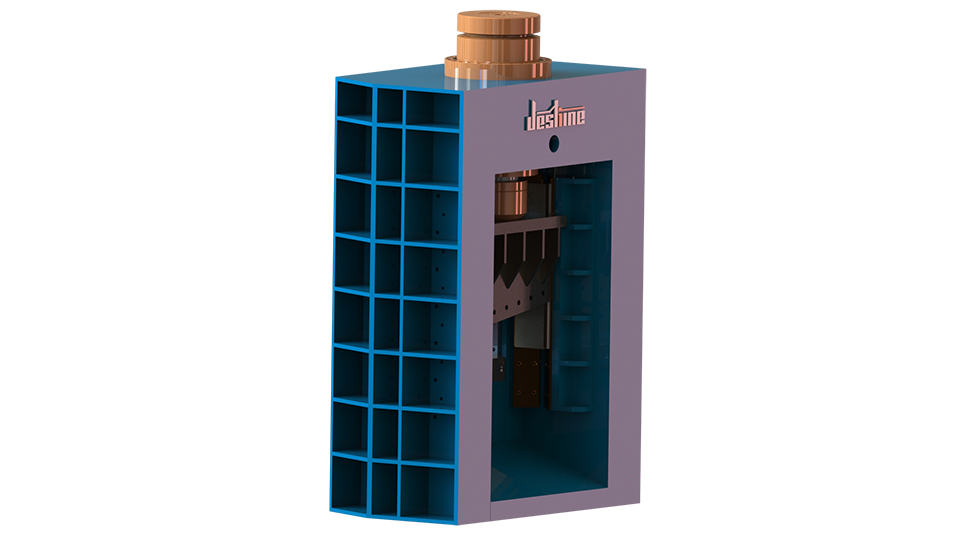

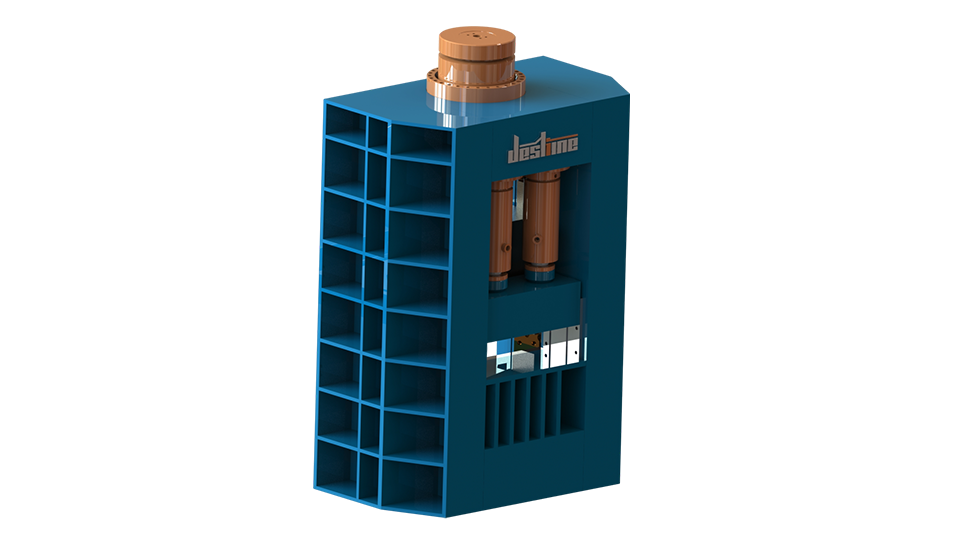

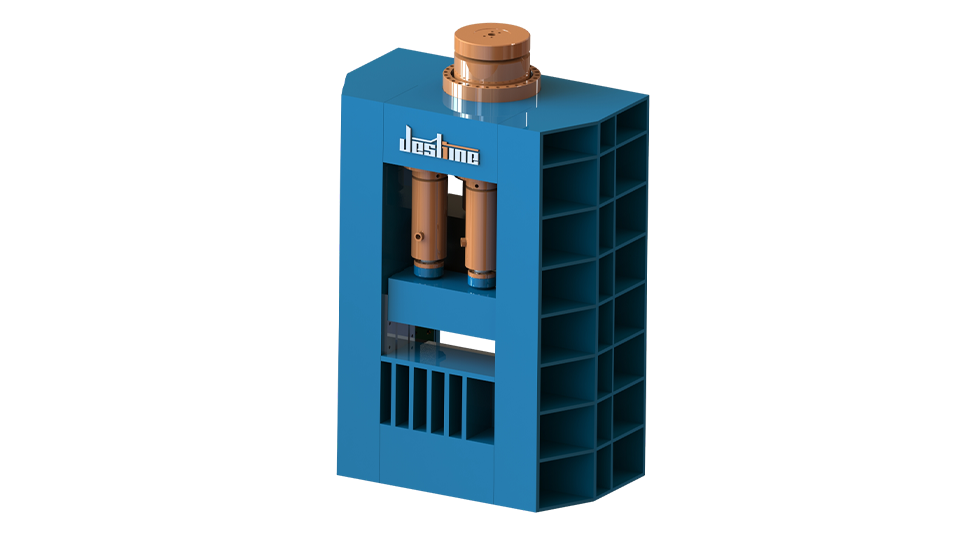

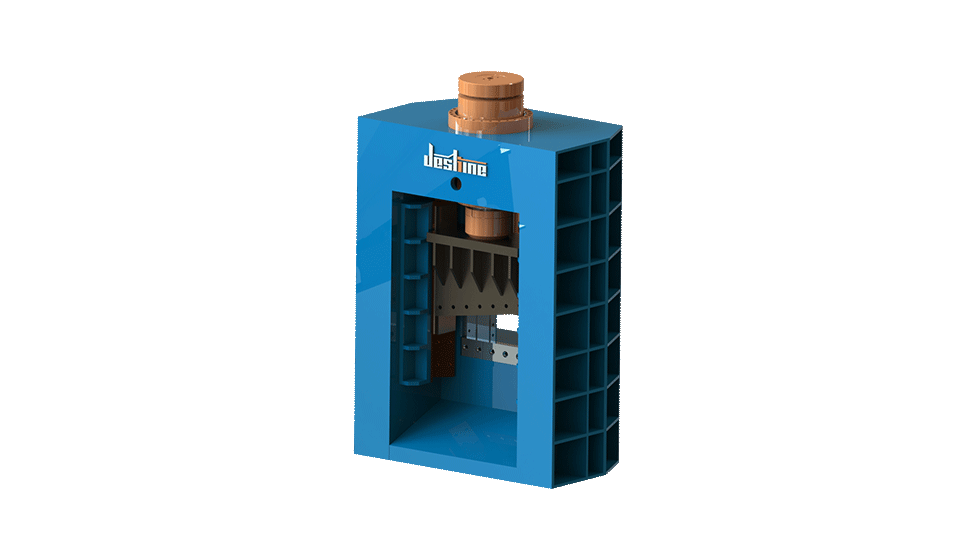

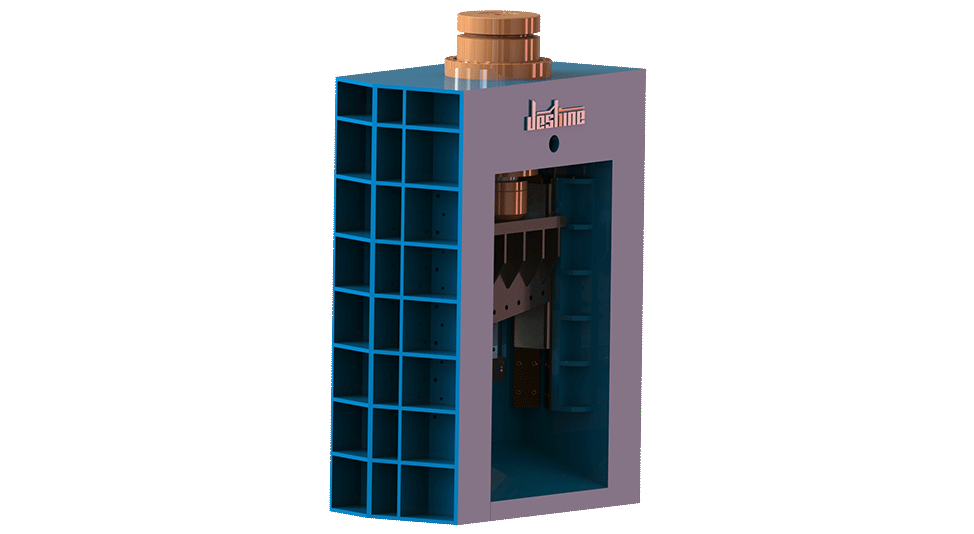

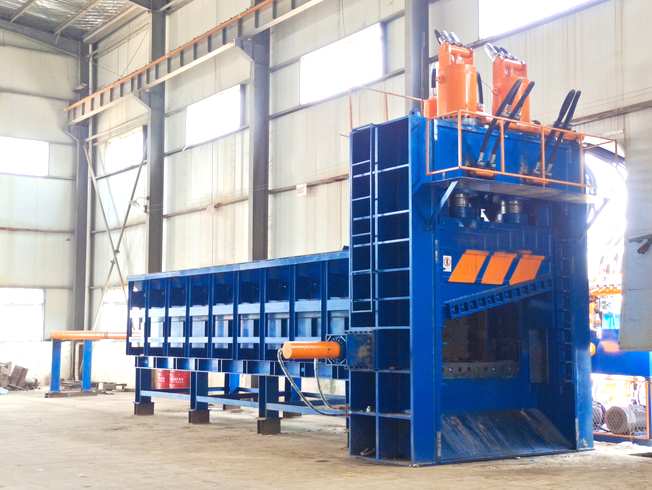

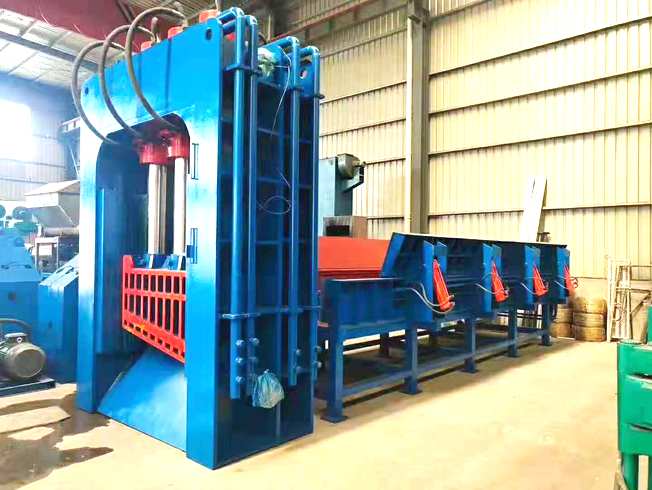

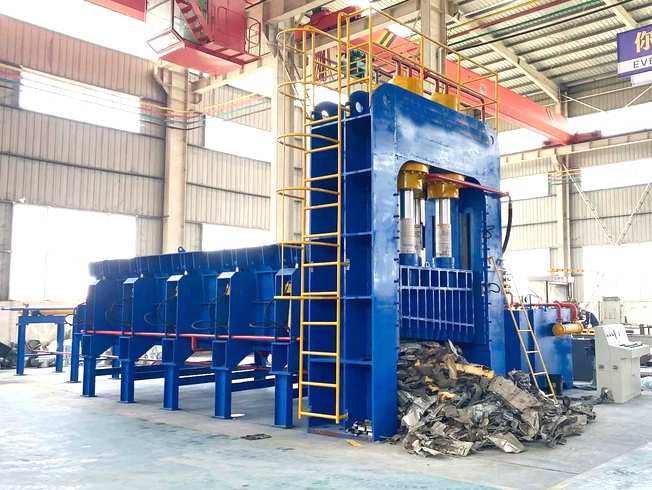

Vertical Gantry Shear Machine

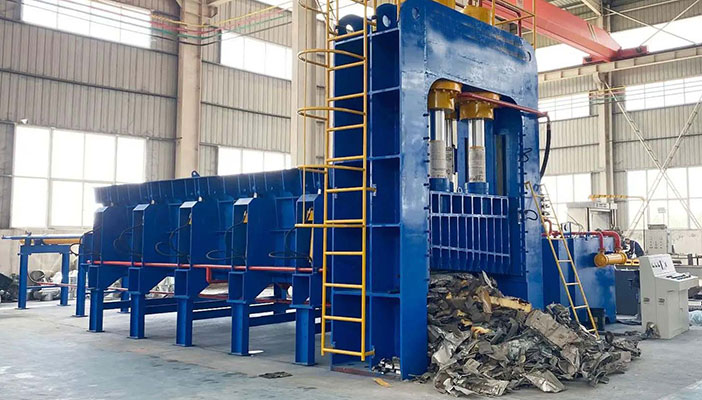

The Vertical Heavy Duty Metal Gantry Shear is a robust industrial machine designed for cutting waste thick metal sheets, plates, waste rebars, heavy duty metaland structural sections with high efficiency and big output. It is commonly used in waste recycling center, car dismantling and steel factory etc.

Model: HS Series
Output Capacity:3-15tons/Hour

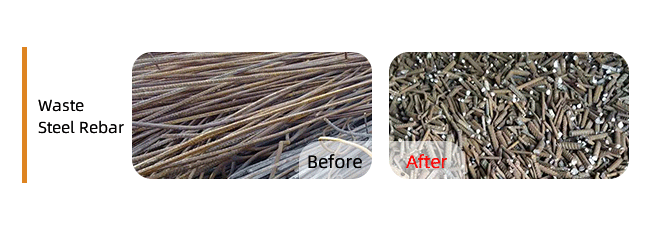

Application: Ferrous and non ferrous metal scrap such sheet metal, heavy metal, steel rebar, round bar etc

Hotline:+86 188 1766 8272

Email:info@dersan.com

Inquire Now

Video

Description

Key Features:

1. Vertical Design: The shear operates vertically, meaning the cutting blade moves downward onto the workpiece; This design allows for better control of force distribution and improved accuracy during shearing.

2. Heavy-Duty Construction: Built with high-strength steel frames and reinforced components to withstand extreme loads; Suitable for processing materials up to 50 mm (or more, depending on model) thick.

3. Gantry Structure: The gantry frame provides excellent rigidity and stability, ensuring consistent cut quality even under heavy-duty conditions; Allows for large workpiece handling capacity and greater reach.

4. High Cutting Capacity: Capable of shearing carbon steel, stainless steel, aluminum, and other metals; Typical maximum thickness: 20–50 mm (depending on material type and model); Maximum sheet width: 5,00–2,000 mm or more.

5. Automation: The shear equiped with Auto PLC control and remote control, can cut the waste metal efficiently, remote control can save labor cost, very convenient for worker to operate the shear machine.

6. Safety Features: Emergency stop buttons; Light curtains or safety barriers; Blade guards and interlock systems to prevent accidental operation.

7. Hydraulic Power driven: Hydraulic systems provide powerful, consistent cutting force ideal for thick materials.

Maintenance Tips:

- Regular lubrication of guide rails and moving parts;

- Inspect blades for wear and replace as needed;

- Check hydraulic fluid levels and filter condition.

If you're looking to purchase, operate, or maintain a vertical heavy-duty metal gantry shear, it's important to consult manufacturer specifications and consider factors like: Material thickness and type; Production volume; Required precision; Safety compliance standards (e.g., CE, ISO)

Let me know if you'd like help selecting a model, understanding technical specs, or finding suppliers!

Parameters

Model	Blade Length	Shearing Frequency	Motor Power	Machine Weight
HS125	800mm	4-5 times/M	30kw	12500kg
HS160	800mm	4-5 times/M	37kw	13740kg
HS200	1000mm	4-5 times/M	45kw	15430kg
HS250	1000mm	4-5 times/M	2*30kw	18650kg
HS315	1200mm	3-4 times/M	2*37kw	21800kg
HS400	1400mm	3-4 times/M	2*45kw	24680kg
HS500	1600mm	3-4 times/M	3*37kw	35590kg
HS630	1600mm	3-4 times/M	3*45kw	56800kg

Features

	Remote Control Remote Service Kunlun Tongtai Touchscreen For Remote Monitoring And Problem Solving
Famous Brand HengYuan Oil Pump Promise The Machine Run Smoothly
	Heavy Duty Vertical Design Big Feeding Hopper Intelligent, High Efficiency, Continuous Discharge
Industrial Oil Chiller Better Cooling Effect Promise Machine Run Smoothly With Long life

Application

FAQ

> What is package of Hydraulic Alligator Cutting Machine?

Generally speaking, there are two packages of the machine, wooden package, and plastic films, wooden package is mainly for small machine with LCL shipment, and plastic films mainly for big machine with FCL shipment before loading into the container, and we can meet your special package requirement if you have any.

> How can i know you are a manufacturer or trader of Alligator Guillotine Shear?

You can visit our factory personally, also you can ask technical drawings such as 2D drawings 3D Drawings, we have professional technical team working on this, and will not give you these if a trader, because they don't have ability on this.

> What is lead time of Metal Alligator Shear Machine?

The lead time is various according to different models, generally speaking, it is approx. 30 days, and will be longer with bigger models, and shorter with small models, we will work overtime if you need the shear machine urgently.

> What is payment term of Alligator Shears For Sale?

The payment of the shear is 30% TT as deposit, and 70%TT balance paid 7 days before shipment, and LC is also acceptable, it is flexible depends on amount of the shear machine.

> What brand of oil pump does the Scrap Metal Shearing Process use?

We use china famous best oil pump supplier in China, the pump is durable and stable; also we can use other brands such as Rexroth, Parker, Yuken brand per your requirements.

> What all do I need to install the Hydraulic Shear For Scrap?

After the shear arrived your place, you need to prepare the hydraulic oil, cable wire, worker, electrical technician, then you can start to test and operate the shear machine per user manual, or make video call with our engineer, our technical team will guide and help you get everything done.

> Does Integrated Hydraulic Shearing Machine have PLC control?

Yes, the machine has PLC automatic control, easy to operate and more efficient, and also has manual control, easy to debug and maintain the shear machine.

> How does Waste Metal Shear work?

The shear is driven by hydraulic power to cut all kinds of ferrous and non ferrous metal scrap into small pieces, easy to transport, save labor cost and storage cost, improve melting rate and make more profits.
