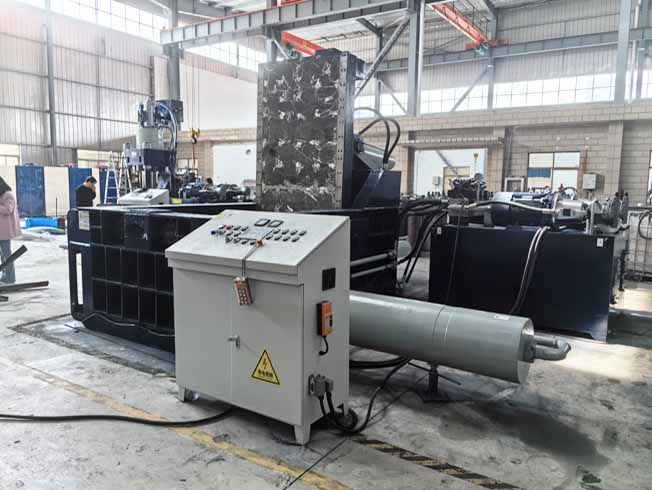

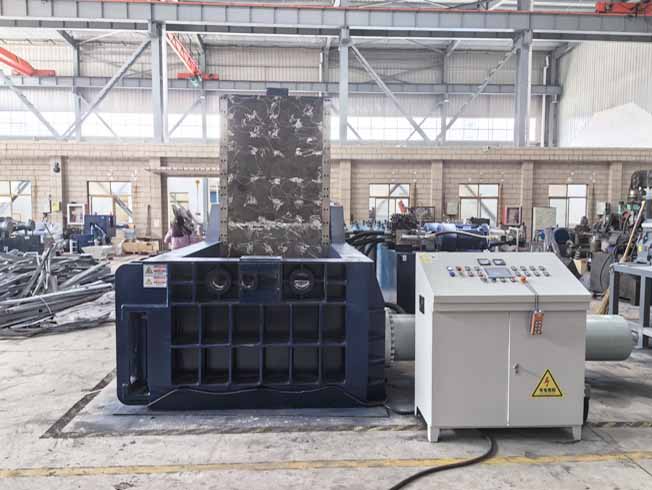

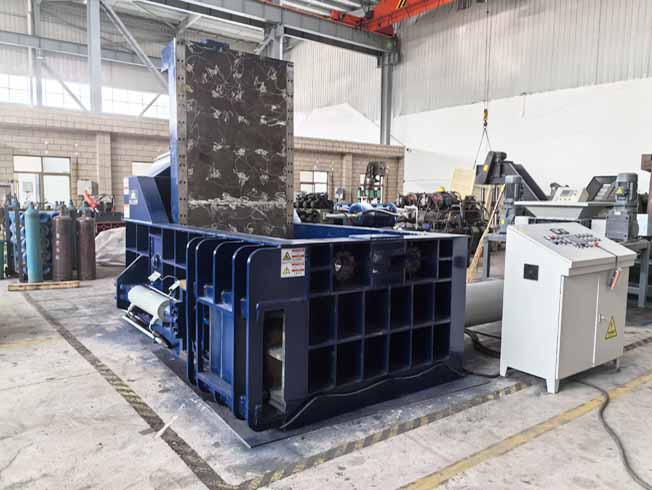

A Metal Scrap Compactor Machine is a heavy-duty industrial equipment designed to compress and densify metal scrap (such as aluminum, steel, copper, and other ferrous/non-ferrous metals) into compact, manageable blocks or bales. This process increases the value of scrap by reducing volume, improving handling, storage, and transportation efficiency, and enhancing recycling operations.

Key Features of a Metal Scrap Compactor Machine:

1. High Compression Force

Typically ranges from 50 to 200 tons (or more), depending on model.Ensures dense, solid blocks that are easier to transport and sell.

2. Hydraulic System

Uses powerful hydraulic cylinders for consistent and controlled compaction.Offers smooth operation and high durability.

3. Compaction Chamber (Die Box)

Reinforced steel chamber where scrap is compressed.Customizable sizes based on scrap type and output needs.

4. Automatic Feeding System (Optional)

Conveyor belts or robotic arms feed scrap into the machine automatically.Increases throughput and reduces manual labor.

5. Ejection Mechanism

After compaction, the block is ejected using a piston or pusher plate.Some models include automatic ejection with minimal operator intervention.

6. Safety Features

Emergency stop buttons.Interlock systems to prevent operation during door opening.Protective guards and sensors.

7. Control Panel

PLC (Programmable Logic Controller) or touch-screen interface for easy monitoring and control.Programmable cycles for different scrap types.

Types of Metal Scrap Compactors:

| Type | Description | Best For |

| Horizontal Press | Scrap fed horizontally into the chamber; ideal for large, irregular pieces. | Automotive scrap, appliances, construction debris |

| Vertical Press | Vertical loading; suitable for smaller, uniform scrap like cans or sheet metal. | Aluminum cans, shredded metal, small parts |

| Bale Press (for loose scrap) | Compresses loose scrap into bales tied with wire or straps. | Shredded metal, mixed recyclables

| Single-Stage vs. Multi-Stage | Single-stage offers faster cycle times; multi-stage allows higher density. | High-volume recycling plants |

Benefits of Using a Metal Scrap Compactor:

Reduces Volume by 50–80%, saving storage space.Lowers transportation costs due to higher density.Increases resale value of scrap metal.Improves safety by minimizing loose, sharp metal fragments.Enhances recycling efficiency in processing facilities.Supports sustainability by promoting circular economy practices.

Common Applications:

Recycling centers.Auto dismantling yards.Manufacturing plants (metal waste).Construction sites.Scrap dealers and brokers.Metal smelters and foundries

Maintenance Tips:

Regularly inspect hydraulic systems and replace worn seals.Lubricate moving parts frequently.Clean the compaction chamber after each use.Check safety interlocks and sensors monthly.Train operators properly to avoid misuse.

Choosing the Right Compactor:

Consider:Type and volume of scrap.Desired block size and density.Available floor space.Budget and ROI timeline.Automation level needed

Summary:

A Metal Scrap Compactor Machine is an essential tool in modern recycling and metal processing industries. It transforms loose, bulky scrap into dense, saleable blocks—boosting efficiency, profitability, and environmental sustainability.

If you're looking to purchase one, consult with reputable suppliers like Huanghe Machinery, SMI, CCM, or KME, who offer custom solutions based on your operational needs.
