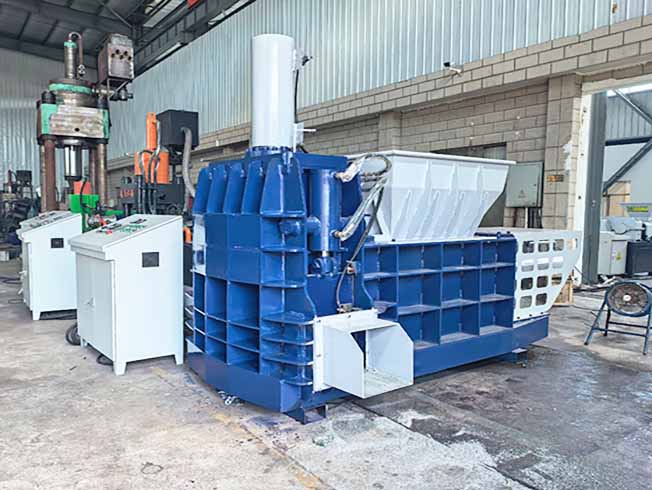

A Triple Hydraulic Scrap Metal Compress Baling Press is a heavy-duty industrial machine designed for maximum efficiency in scrap metal recycling. It's called "triple" because it applies compression force from three sides (typically top and two lateral sides), creating dense, uniform, and highly stackable bales.

Here’s a comprehensive breakdown of its features, workings, applications, and key considerations.

Core Function & Principle

To transform loose, bulky scrap metal (like turnings, clips, cans, or light iron) into compact, rectangular bales for:

Efficient Transportation: Reduces volume by up to 90%, drastically cutting freight costs.

Optimized Storage: Creates uniform, stackable blocks.

Improved Melting Efficiency: Denser bales melt more efficiently in furnaces.

Higher Market Value: Baled scrap typically commands a higher price per ton than loose scrap.

How It Works (The "Triple" Action)

Loading: The charging box is filled with loose scrap metal.

Compression Cycle:

Main (Top) Cylinder: Descends to pre-compress the material from above.

Side (Lateral) Cylinders (Two): Simultaneously or sequentially extend from the sides to compress the material into a compact form. This three-sided pressure is key to handling springy, tough-to-compress metals.

Baling & Ejection: Once the pre-set bale density is achieved, the press forms the bale, often using a "tie-wire" system or a locking mechanism to hold it together. The rear door opens, and the bale is ejected, often using a hydraulic pusher plate or by the action of the side cylinders.

Key Components

Heavy-Duty Frame: Reinforced steel construction to withstand extreme pressure (typically 100 to 500+ tons).

Hydraulic Power Unit (HPU): The heart of the system, comprising an electric motor, hydraulic pumps, valves, oil tank, and cooling system.

Cylinders: Three main hydraulic cylinders (one for top, two for sides) made of high-strength steel.

Charging Box / Compression Chamber: The workspace where scrap is loaded and compressed.

Control System: Modern presses use a Programmable Logic Controller (PLC) for automated, safe, and efficient cycles. Includes both manual and automatic modes.

Safety Features: Emergency stop buttons, mechanical safety locks, two-hand operation controls, and light curtains.

Common Applications & Scrap Types

Light Iron: Sheet metal, auto bodies, appliances.

Non-Ferrous Metals: Aluminum cans (UBCs), copper wire, brass turnings.

Steel Turnings & Borings: Swarf from machining operations.

Stainless Steel Scrap.

Mixed Scrap: Prepared for shredding.

Advantages of a Triple-Action Press

Higher Density: Three-sided compression achieves greater density than single-downstroke presses, especially for springy materials.

Better Bale Integrity: Produces tightly packed, square bales that don't fall apart.

Versatility: Can handle a wide range of scrap types and densities.

Automation: Can be integrated with conveyor feeds and bale handling systems for continuous operation.

Important Considerations When Purchasing/Using

Pressure & Force: Rated in tons. Choose based on the type and volume of scrap you process (e.g., 200-ton for light iron, 400+ ton for dense turnings).

Bale Size & Output: Chamber dimensions determine bale weight. Cycle time (e.g., 40-60 seconds) determines hourly output.

Power Requirements: High-power machines (e.g., 75-150 HP motors) require robust electrical infrastructure (3-phase).

Footprint & Installation: Requires significant floor space, a solid concrete foundation, and professional installation.

Manufacturer & Support: Choose reputable manufacturers known for durability and reliable after-sales service (spare parts, maintenance).

Safety Compliance: Ensure the machine meets all local and international industrial safety standards (CE, OSHA, etc.).

Popular Manufacturers & Brands

Global/Heavy-Duty: Logemann, American Baler, Harris, Sierra International, Maren Engineering.

European: Metso, Lindemann.

Asian/Chinese: Numerous manufacturers offer a range from economy to high-spec models. Due diligence on quality is essential.

Cost Range

Varies enormously based on capacity, automation, and brand.

Standard Models: $80,000 - $200,000+

High-Capacity/Automated Systems: $300,000 - $1,000,000+

In summary, a Triple Hydraulic Scrap Metal Baling Press is a major capital investment that is the cornerstone of a modern, profitable scrap yard. Its three-sided action provides superior performance for creating high-density, transport-ready bales, offering a rapid return on investment through reduced logistics costs and increased scrap value.
