What Is an Aluminum Can Hydraulic Press Baler?

An aluminum can hydraulic press baler is a machine that uses hydraulic pressure to compress loose aluminum cans—such as used beverage cans (UBCs)—into dense, compact bales. This process reduces volume by up to 80 percent, making storage and transportation much more efficient. Dense bales also fetch better prices in the scrap market.

The hydraulic system applies force through cylinders to a compression ram, which pushes the cans against a solid surface inside the chamber. Once compressed, the bale is ejected and ready for shipment to recycling facilities.

How It Works

The process is straightforward. First, cans are loaded into the machine via a hopper or conveyor. Then, the hydraulic system activates and compresses the cans under high pressure. As more cans are added, the bale builds up layer by layer until it reaches the desired size. Finally, the finished bale is ejected, either manually or automatically.

Two Main Types

Vertical balers are compact and top-loading, ideal for smaller operations, retail stores, and facilities with limited floor space. They typically have compression forces ranging from 30 to 80 tons and produce bales weighing 40 to 170 kg.

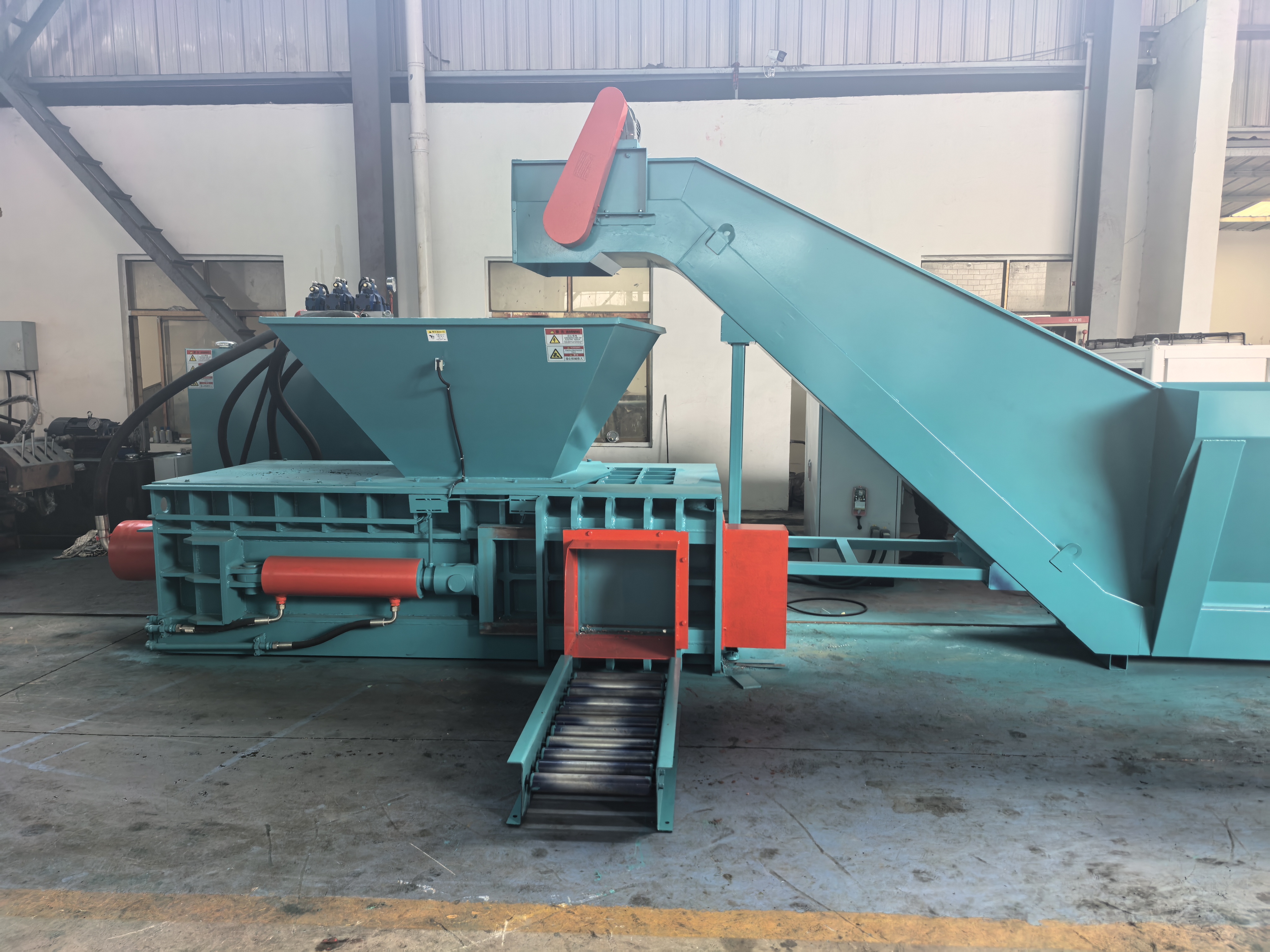

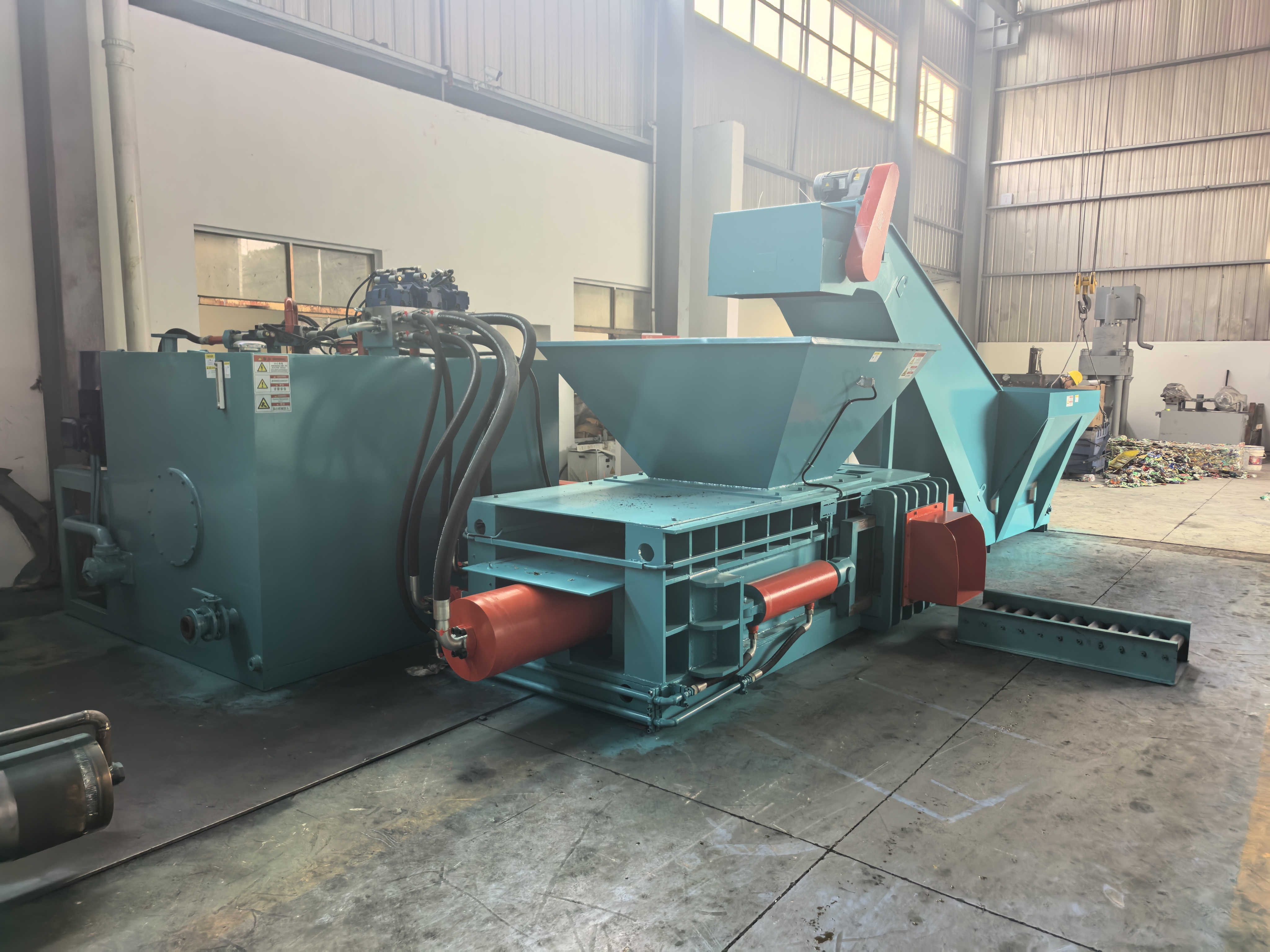

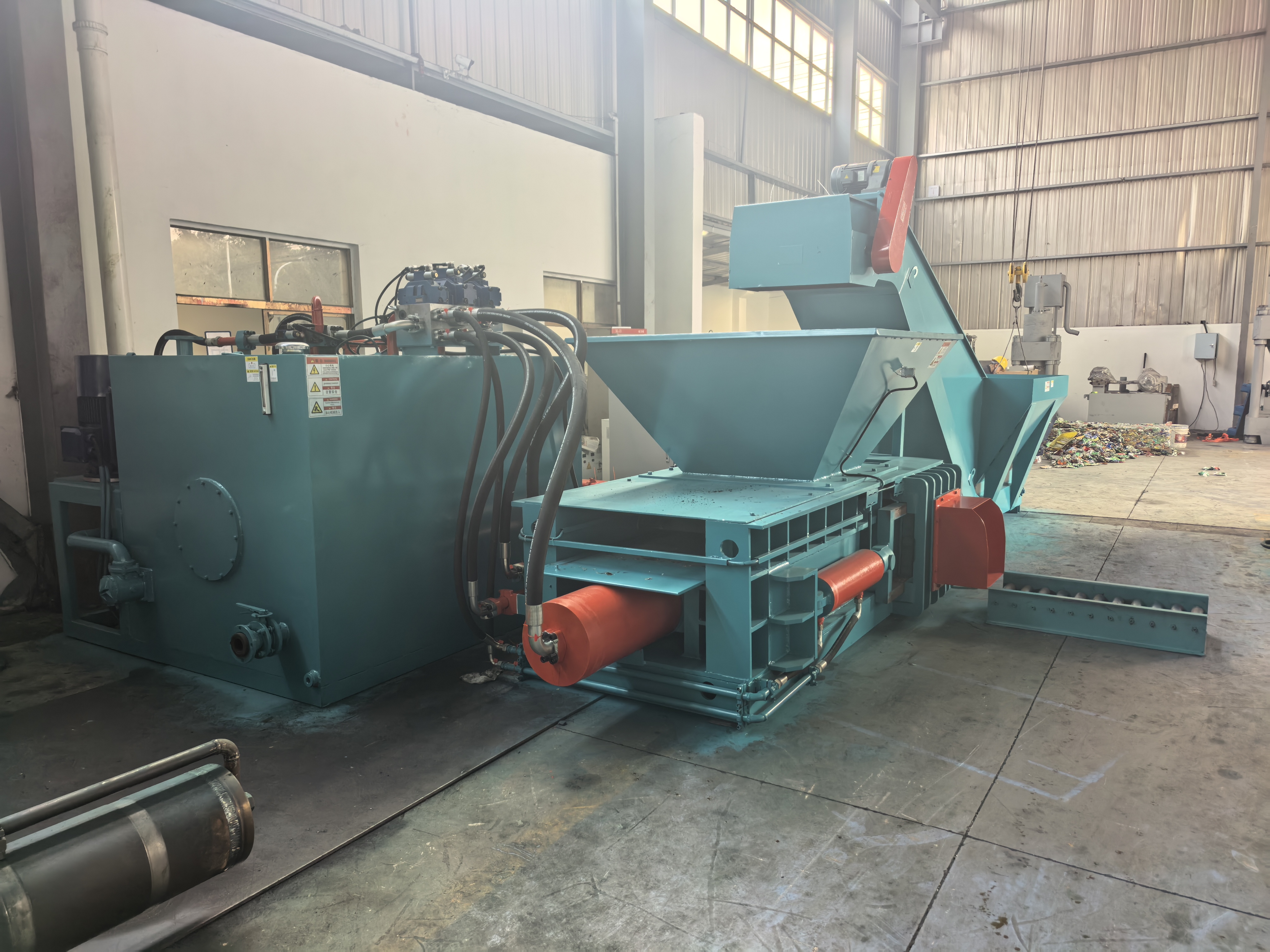

Horizontal balers are larger, high-capacity machines designed for continuous operation in large recycling centers and material recovery facilities. They often feature conveyor feeding, integrated shear systems, and advanced PLC controls. Compression forces can exceed 315 tons, with throughput reaching 15 tons per hour or more.

Key Benefits

Using a hydraulic baler saves space by reducing storage footprint, cuts transportation costs by consolidating more material per truckload, improves safety by replacing loose sharp cans with stable bales, and increases profitability since high-density bales command premium prices from recyclers.

Examples

The McIntyre M20 is a compact vertical baler with 30 tons of force, producing 9–11 kg bales at up to 750 kg per hour. The ENERPAT AMB-L2014-315 is a large horizontal baler with 315 tons of force, processing over 15 tons per hour. The CMS160 is a mid-range option with 160 tons of force, producing 18–30 kg bales at 700 kg/m³ density.

Quick Considerations

When choosing a baler, consider compression force (higher force means denser bales), throughput capacity (how much you need to process per hour), available floor space, and automation level (manual vs. PLC-controlled). Regular maintenance—checking hydraulic fluid, lubricating parts, and inspecting wear plates—is essential for reliable operation.
