What Are They?

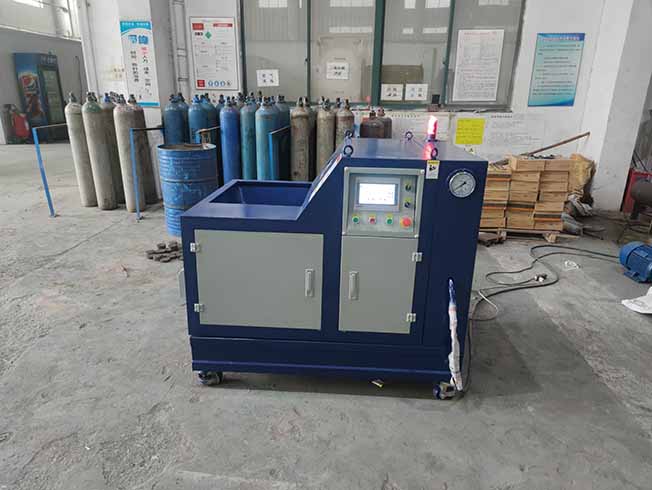

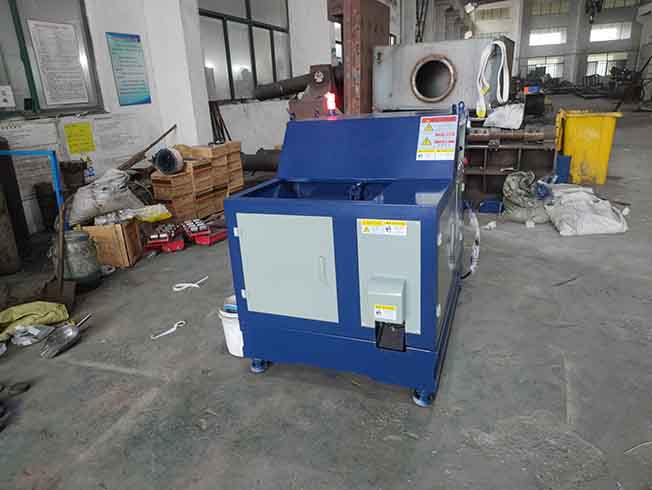

These are hydraulic presses specifically designed to compress loose, tangled metal chips (from CNC machining, turning, milling, etc.) into dense, solid blocks called briquettes or pucks.

Primary Materials: Aluminum, brass, copper, steel, cast iron, and exotic alloys like titanium.

Why Make Briquettes? Key Benefits

Volume Reduction: The #1 reason. Reduces chip volume by up to 90%, slashing storage and hauling costs.

Increased Scrap Value: Briquettes are "cleaner" (hold less coolant/oil) and denser. Scrap yards pay a higher price per ton compared to loose, soggy chips.

Coolant/Oil Recovery: The intense pressure (up to 350+ bar) squeezes out a significant percentage of trapped cutting fluid, which can be filtered and reused, saving money.

Cleaner & Safer Workplace: Eliminates piles of sharp, oily chips. Reduces slip hazards, fire risk, and improves housekeeping.

Efficient Melting: Briquettes melt faster and with less oxidation in furnaces compared to loose chips, making them preferable for foundries.

Types of Machines for Small Chips

For small-scale operations (machine shops, small factories, job shops), the machines generally fall into two categories:

1. Standalone Vertical Briquetting Presses

Operation: Chips are fed manually or via a conveyor into a chamber. A hydraulic ram compresses them vertically into a solid briquette. The briquette is then ejected.

Capacity: Suitable for 50 - 500 kg of chips per hour.

Footprint: Relatively small, can be placed next to a CNC machine or in a corner.

Output: Produces discrete briquettes (pucks, logs, or blocks).

Best For: Mixed metals, lower volume, or shops that want to process chips from specific machines separately.

2. Centrifugal Chip Wringers / Briquetting Systems

Operation: First, a centrifugal "wringer" spins chips at high speed to remove ~90% of the free coolant. The dried chips are then fed into a built-in press to form briquettes.

Advantage: Maximum coolant recovery and very dry briquettes.

Best For: High-volume coolant users (e.g., aluminum machining with flood coolant).

Key Components & Features to Look For

Hydraulic System: The heart of the machine. Look for robust, reliable components.

Pressure Rating: Higher pressure (measured in tons or bar) yields denser briquettes and better oil extraction.

Hopper & Feed System: Should match your chip type (stringy aluminum chips can bridge; small steel chips flow easily). Agitators or forced feeders help.

Cycle Time: How long to make one briquette (typically 30-120 seconds).

Control Panel: Simple PLC controls with automatic cycle, manual override, and safety interlocks.

Briquette Ejection: Smooth, automatic ejection is essential.

Coolant/Oil Drainage: Integrated tray and drain port for collecting expelled fluids.

Safety: Two-hand operation, safety gates, and pressure relief valves are mandatory.

Top Manufacturers & Brands

(Note: "Small" is relative; these companies offer a range of sizes.)

RUF GmbH & Co. KG (Germany): The industry gold standard. Known for extremely robust and reliable briquetting presses.

PRAB, Inc. (USA): A major player in chip and fluid management, offering integrated systems.

Nederman (Sweden): Provides environmental solutions, including briquetting presses under brands like Mayfran.

Geneglace (France): Known for high-quality, innovative presses.

Sweed (USA): Offers the "Chipperizer" among other recycling equipment.

Chinese Manufacturers: Many companies offer cost-competitive options (e.g., Jiangsu Huahong Technology, WANSHIDA). Important: Scrutinize build quality, hydraulic components, and after-sales support.

Buying Considerations for a Small Shop

Chip Type & Volume: What metal(s) do you machine most? What's your daily/weekly chip generation (kg/hr)?

Coolant Content: How much fluid needs to be recovered? This may steer you toward a centrifugal system.

Floor Space & Power: Ensure you have the required footprint and electrical/hydraulic power (3-phase is common).

Budget: Small standalone presses can range from $15,000 to $60,000+. Centrifugal systems are more expensive. Consider ROI from scrap value increase and coolant savings.

Service & Support: A machine is useless if it breaks down. Check spare parts availability and local technical support.

Typical Workflow in a Small Shop

Chips are collected from machine sumps or conveyors.

They are fed into the briquetting press hopper (often by hand or with a cart).

The operator starts the automatic cycle.

The press compresses the chips, drains fluid into a collection tank.

A solid, dry briquette is ejected into a bin or pallet.

Briquettes are sold to a scrap dealer at a premium.

Recovered coolant is filtered and reused.

Conclusion

For a shop generating consistent volumes of metal chips, a small briquetting machine is not just a compactor; it's a profit center and a waste elimination tool. The investment is justified by:

Increased scrap revenue.

Reduced disposal costs.

Savings on cutting fluids.

A cleaner, safer, more efficient workspace.

First Step: Audit your chip output—weigh and identify your chips for a week. Then, contact a reputable supplier for a demonstration and a specific quote based on your actual needs.
