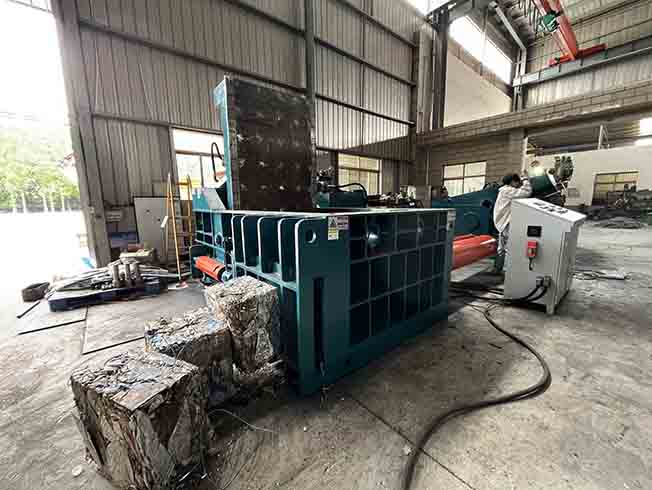

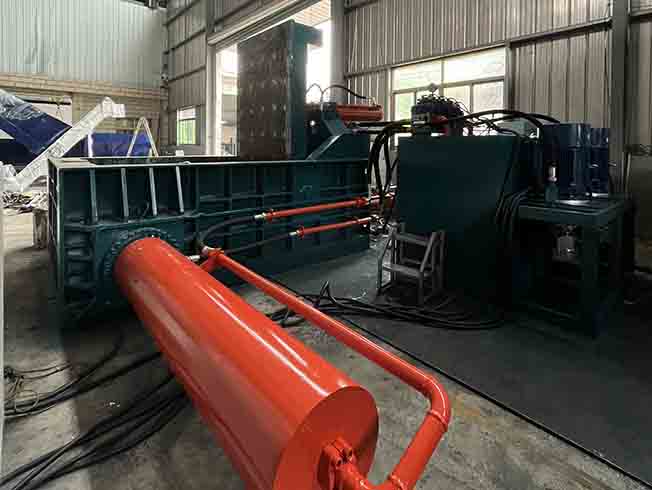

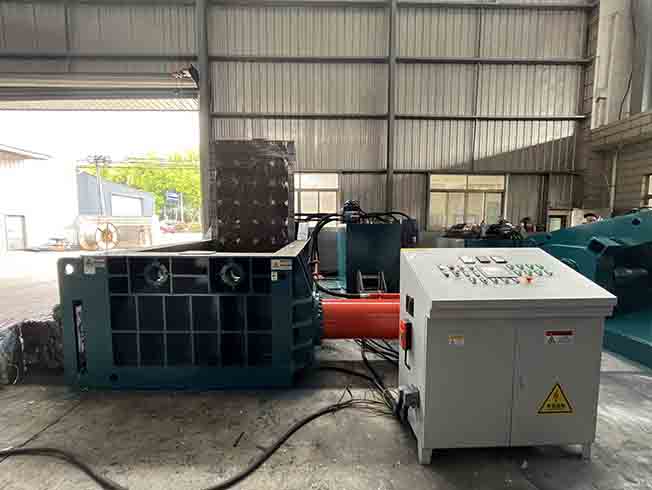

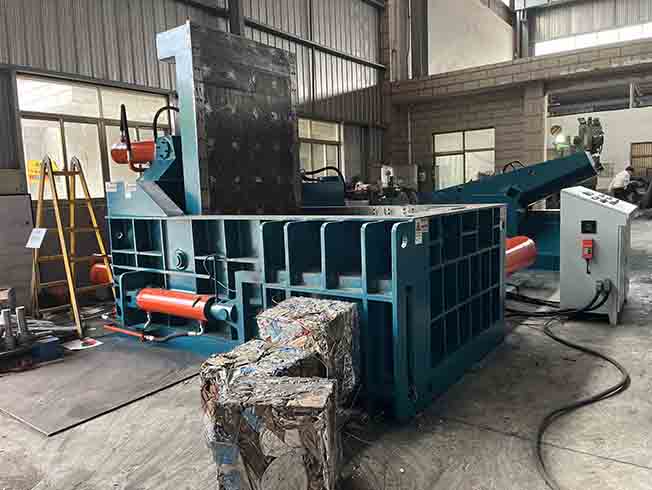

Iron Scrap Compressor baler Machine

The Iron Scrap Compressor Baler Machine uses high-pressure hydraulic force to compact iron sheets, steel offcuts, cans, wires, pipes, and other ferrous waste into dense, uniform bales. Its reinforced frame and reliable control system reduce scrap volume, simplify material handling, save storage space, and lower transportation costs.

Instllation Foundation:Horizontal Cement Groud;
Debugging Service:Provided;
Machine Input Type:Forklift;

Hotline:+86 188 1766 8272

Email:info@dersan.com

Inquire Now

Video

Description

Bale Discharge:Push-Out;

Bale Ejection:Side Push-Out;

Certificate:CE TUV ISO;

Discharge Out:Push Out;

Output Capacity:1.5-10tons/Hour;

Electrical Components:Schneider;

Pump Flow:107-750ml/r;

Machine Capacity:300-5000kg/Hour;

Voltage Frequency:50HZ/60HZ;

Terms of Delviery:CIF,CNF,FOB,CPT;

Package:Plastic Films/Nude Package;

Test Video Before Shipment:Provide;

Chamber Height:700-1200mm;

Bale Out Type:Continuous;

Output Capacity:10-20bales/Hour;

Cooling:Industrial Chiller;

Bale Size:300-600mm;

Shipping Price:Vary depend machine;

Working Pressure:21.5Mpa;

Lead Time:15 Days;

Port:Shanghai Port;

The Iron Scrap Compressor Baler Machine uses high-pressure hydraulic force to compact iron sheets, steel offcuts, cans, wires, pipes, and other ferrous waste into dense, uniform bales. Its reinforced frame and reliable control system reduce scrap volume, simplify material handling, save storage space, and lower transportation costs. Pressing force, chamber size, bale dimensions, discharge method, motor voltage, and PLC automation can be customized. Contact us for technical specifications, working videos, and the latest factory quotation.

We not only have these baler machine, but have other machines such as Ecuador China Copper Borings baling machine,Denmark Automatic Stainless Steel Millings briquetting machine,Iceland Two Ram Pop Cans Baler,Netherlands High Quality Bronze Drillings baling machine,Pakistan High Quality Bronze Drillings baler,Portugal China Copper Millings briquetter,Indonesia Factory Price Aluminum Drillings baler,Bulgaria 125Ton Alu Cans Tins Baler,Malaysia High density block making machine for Steel turnings,Chile Hopper Feed Tinplate Baler With Conveyor,Australia Scrap Metal Baler Italia,New Zealand High quality aluminum Powder briquetter,Egypt Jiangsu Factory Iron Scrap Baling Press,USA Heavy Duty Steel Wire Crocodile Shear,SK Baler Automatic aluminum Swarfs briquette machine,Jiangyin manufacturer Hydraulic briquetter for Metal drillings,Argentina Powerful Metal Scrap Baling Press,Shengbo baler Y83 briquette machine for Aluminum powder,Ireland Automatic Aluminum Tins Compress Baler,Turkey Hydraulic block making machine for Metal borings,Finland Powerful Waste Steel Compactor Machine,Oman 250Ton Steel Scrap Shear With Conveyor,France Automatic Vertical block making machine for brass drillings,Gaode baler, Forward Out Used Metal Compactor,Sri Lanka India Pop-Top Cans Baling Machine,Slovenia Big Volume Hopper UBC Press Baler,Thailand Vertical Brass Millings block making machine,Enerpat baler Hopper Feed Used Beverage Cans Packing Baler,Ruf briquetting press Hopper Feed Stainless ScrapBaler With Conveyor,Austria SBJ Steel Millings baling machine,Dalongkai baler Horizontal Aluminum Extrusions Compactor,Chuangda baler High Quality Brass Drillings block making machine,Japan China Supplier Aluminum Cans Compactor,Spain Y83 Copper Borings briquetting machine,Singapore Zato 800 Tonne Shear Balers,Russia India Tins Cans Compactor,Aupu machinery baler Cast Iron Chips Briquettes,Albania Hopper Feed Aluminum Scrap Compactor,Poland Vertical briquetting machine for Stainless Steel drillings,Mexico Copper Scrap Briquetting machine etc...
Please contact with us if you have any questions.

Parameters

Model	Chamber Size	Bale Size	Bale Weight	Output	Motor Power	Machine Weight
HBT100	1000600600mm	250*250mm	20-50kg	20 bales/Hour	15kw	5680kg
HBT125	1200700600mm	300*300mm	40-80kg	15-20 bales/Hour	18.5kw	7860kg
HBT135	1400900800mm	400*400mm	60-120kg	15-20 bales/Hour	22kw	9865kg
HBT200	20001400900mm	450*450mm	150-250kg	15-20 bales/Hour	37kw	21670kg
HBT250	220014001000mm	500*500mm	200-300kg	15-20 bales/Hour	2*30kw	26570kg
HBT315	250014001200mm	600*600mm	250-400kg	15-20 bales/Hour	2*37kw	32780kg

Features

Remote Control

Remote Service

Kunlun Tongtai Touchscreen For Remote Monitoring And Problem Solving

Famous Brand

HengYuan Oil Pump

Promise The Machine Run Smoothly


Side Push-Out Design

Continuous Rapid Bale Out

Intelligent And Efficient, Continuously Push Out

Application

FAQ

> Is there any spare parts along with the Japan Scrap Metal Baler?
Yes, we will provide some spare parts for free which includes tools, O Rings and some other electrical components like middle relay, and you need to pay extra cost for wear parts.

> Are the interchangeable wear plate installed on Forward Out Scrap Metal Compress Baler?
Yes, the wear steel plate is changeable, you can easily change it when which wear plate is going to change, and we also can weld the wear plate directly, because this way, it is durable ans stable.

> Can I get a local engineer for How To Press Aluminium Tins Cans? installation?
As for the installation, you can find a local engineer to install the machine, we will make detail marks on the machine, and we have video, photos and user manual for the machine, you just need to install the machine per the marks and user manual when machine arrived at your site, that is OK; Further more, we can send our engineer to your place to help you to install the machine, you just need to pay salary for our engineers, and you can contact with us any time if any problems, our after sale team will give you suitable solutions accordingly.

> What is pressing force of Hydraulic System For Metal Baling Machine?
The pressing force of the baler is different depends on different models, smaller machine has small pressing force, and bigger machines has big pressing force; and it is also determined by the material characteristics and bale density, our technical team will figure out and calculate the pressing force according to your requirements.

> What is pump flow of Ubc Aluminium Scrap Press Baler?
The pump flow of the baler is different depending on different types and models, in a word, small model of baler machine will have small pump flow, and bigger baler will use bigger pump flow accordingly, and we also can customize the pump flow according to your special requirement such as high output capacity and high density of the bale after pressing.

> What is output capacity of Strong Scrap Metal Baler Press?
The baler capacity ranges from 300kg per hour to 30000kg per hour, different models has different capacity, small models has small output capacity, and bigger one has big capacity accordingly, we also can customize the baler according to your special requirement.
