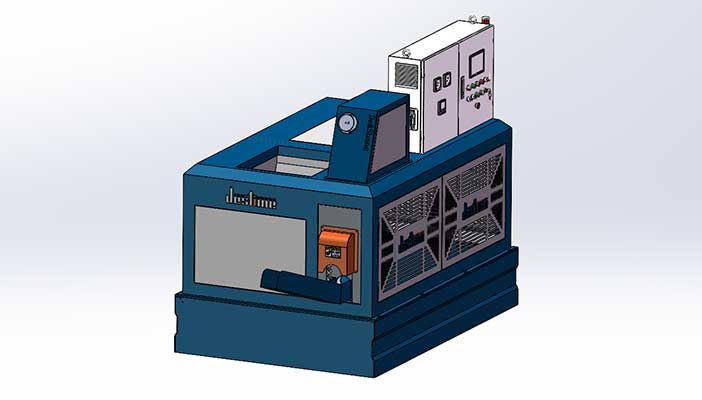

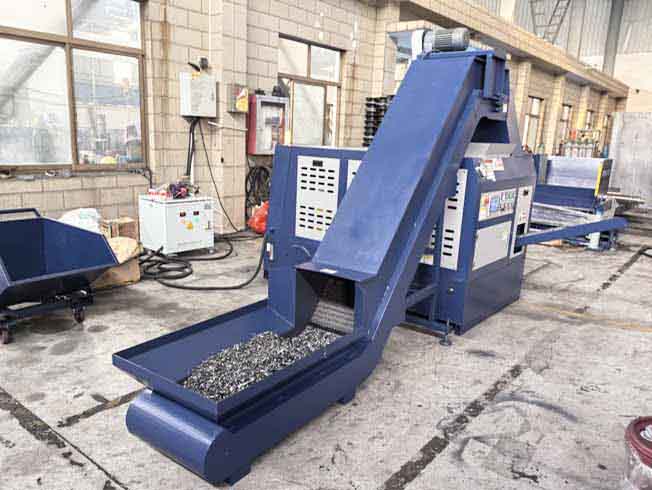

New Design Metal Chip Briquetting Press – Overview

The New Design Metal Chip Briquetting Press is an advanced, high-efficiency industrial machine engineered to compress metal chips, swarf, turnings, and scrap into dense, uniform briquettes. This innovative press is ideal for metalworking shops, automotive manufacturers, foundries, and recycling facilities seeking to optimize material recovery, reduce waste disposal costs, and improve resource sustainability.

Key Features & Innovations:

1. High-Pressure Hydraulic System

- Utilizes a powerful hydraulic press (up to 50–100 tons) to compact loose metal chips into solid briquettes with up to 90% density.Ensures consistent, durable briquettes suitable for direct re-melting or resale.

2. Automatic Feeding & Cycle Control

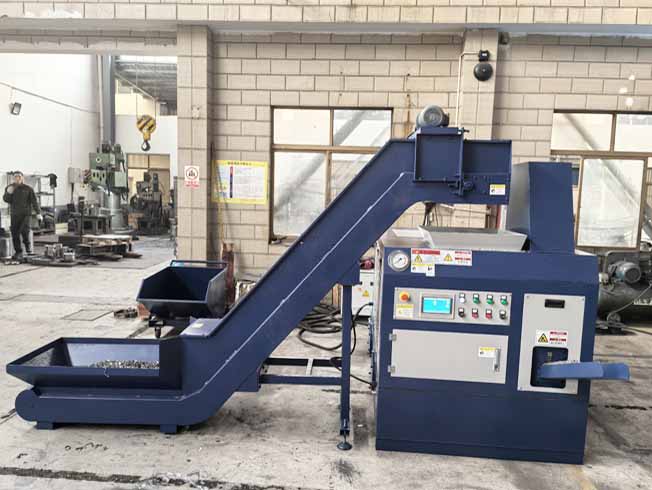

- Integrated conveyor or hopper system for continuous feeding.PLC (Programmable Logic Controller) automation enables fully automatic operation: loading → pressing → ejection → reset.

3. Modular & Compact Design

- Space-saving footprint with modular components for easy installation and maintenance.Suitable for small workshops or large-scale production lines.

4. Interchangeable Dies & Customizable Briquette Shapes

- Available in round, rectangular, or custom die configurations.Allows flexibility based on downstream processing needs (e.g., furnace compatibility).

5. Energy-Efficient & Eco-Friendly

- Low energy consumption with optimized hydraulic systems.Reduces landfill waste and transportation costs—briquettes take up 70–80% less space than loose scrap.

6. Robust Construction

- Heavy-duty steel frame with anti-vibration mounting.Wear-resistant tooling and hardened pressing dies for long service life.

7. Safety & Monitoring Systems

- Emergency stop, overload protection, and safety interlocks.Real-time monitoring via touchscreen interface (optional).

Benefits of Using the New Design Briquetting Press:

Increases scrap value by 30–50% through densification.Reduces transportation and storage costs.Enables faster melting in furnaces due to consistent size and density.Supports circular economy and green manufacturing initiatives.Minimizes environmental impact from metal waste.

Applications:

- CNC machining centers.Automotive and aerospace industries.Foundries and metal recycling plants.Machine tool shops and jobbing factories

Optional Add-Ons:

- Automatic lubrication system.Dust collection integration.Remote monitoring via IoT.Dual-chamber design for multi-metal processing

Technical Specifications (Example):

| Parameter | Specification |

| Press Force | 50–100 tons (adjustable) |

| Briquette Size | Ø50–100 mm (round), 100x100 mm (rectangular) |

| Capacity | 200–800 kg/hour |

| Power Supply | 3-phase 380V/50Hz |

| Frame Material | Cast iron & high-strength steel |

| Control | PLC + HMI Touchscreen |

Get Started Today!

Upgrade your metal recycling process with the New Design Metal Chip Briquetting Press — engineered for performance, reliability, and sustainability. Contact us for a free consultation, demo unit, or custom configuration tailored to your production needs.

Transform waste into value — one briquette at a time.
