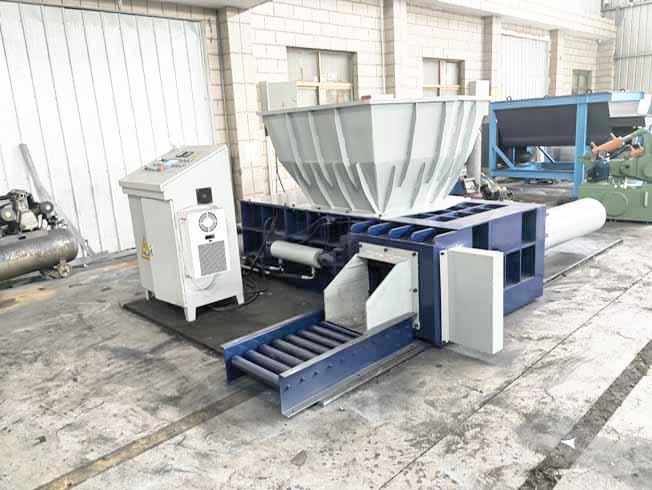

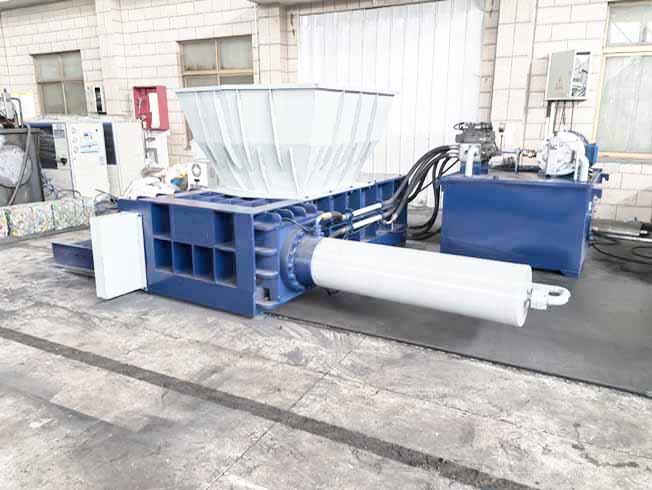

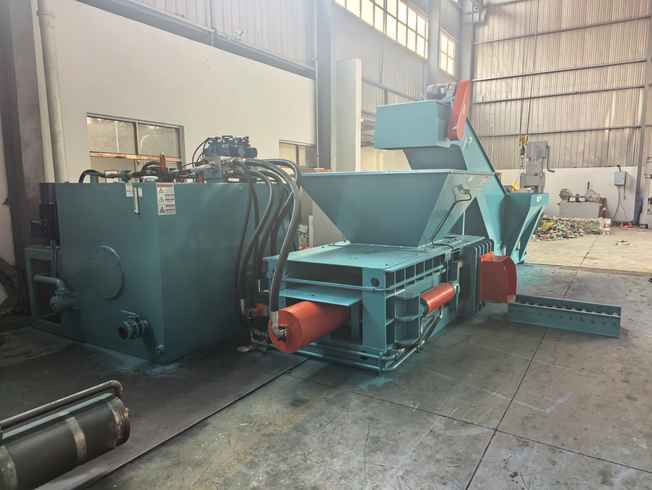

What is a Stainless Steel Compressor Baler?

It is a heavy-duty hydraulic press that compresses bulky, loose stainless steel scrap—such as turnings, cuttings, sheet offcuts, wire, and even light gauge profiles—into dense, manageable blocks. The primary goals are volume reduction, value preservation, and preparation for furnace feed in steel mills or foundries.

Why Stainless Steel Requires Special Attention:

High Strength & Work Hardening: Stainless steel (especially 300-series grades like 304 and 316) is much stronger and tougher than mild steel or aluminum. It requires significantly higher pressing forces to achieve optimal density.

High Value: Stainless scrap commands a premium price. Efficient baling minimizes loss (through oxidation or contamination) and maximizes the price per ton from buyers.

Abrasive Nature: The material is very abrasive on tooling and the chamber, necessitating extreme wear resistance in construction.

Variety of Forms: Scrap can range from fine, stringy turnings to heavy sheet, requiring versatile machine design.

Key Components & Specialized Features

Heavy-Duty Reinforced Frame & Chamber:

Made from high-tensile steel plate, often with internal reinforcements (ribs, gussets).

Wear Liners/Plates: The interior of the compression chamber, especially the sidewalls and floor, are often lined with hardened, replaceable steel plates (e.g., AR400 or AR500 steel) to withstand extreme abrasion.

High-Pressure Hydraulic System:

Pressing Force: These are among the most powerful balers. Forces commonly range from 200 to 1000+ tons, depending on the chamber size and target material.

Large-Diameter Cylinders & High-Pressure Pumps: Designed to generate and sustain the immense pressure needed to compress tough stainless steel.

Robust Ram (Platen) & Tooling:

The face of the ram that contacts the scrap is often fitted with interchangeable, hardened wear plates.

May feature protruding "logs" or cleats to grip stringy turnings and prevent them from springing back.

Durable Door & Locking System:

Features a multi-point, heavy-duty locking mechanism (often hydraulic hooks or bolts) to contain the massive pressure without deformation.

Doors are massively built.

Ejection System:

A powerful hydraulic ejector ram is essential to push the incredibly dense, often "stuck" bale out of the chamber.

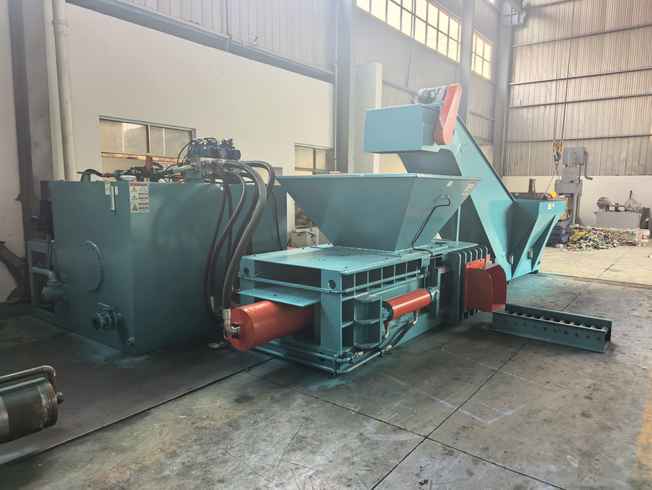

Material Handling Integration (for turnings):

Often paired with a conveyor system (drag conveyor, auger) to continuously feed turnings from machining centers into the baler hopper.

May include a pre-compression lid to pack more material into the main chamber before the final press.

Primary Types of Machines

Closed-Door Briquette Press (for Turnings/Swarf):

Best for: Fine, dry stainless steel turnings and chips from CNC machines.

Process: Compresses material into small, dense, pillow-shaped briquettes (e.g., 60-100mm diameter).

Key Benefit: Maximizes density, reduces oxidation (oil/coolant is often expelled during compression), and creates the ideal furnace feedstock. Often includes a chip wringer or centrifuge option to recover cutting oils.

Vertical Downstroke Baling Press:

Best for: A mix of stainless scrap—cuttings, sheet, wire, and some turnings.

Process: Load from the top, press vertically, eject the bale from the front.

Versatility: The most common choice for scrapyards and larger fabricators handling various forms.

Horizontal Baling Press:

Best for: Very high-volume operations, long sheet offcuts, or continuous feeding of processed scrap.

Process: Material is fed horizontally via conveyor, and the ram presses horizontally.

Throughput: Can offer higher automation and continuous operation.

Major Benefits for Stainless Steel Processors

Massive Volume Reduction: Can reduce loose scrap volume by 10:1 or more, drastically cutting storage and transportation costs.

Preserves Value & Quality: Dense bales oxidize less, are less likely to be contaminated, and are preferred by mills (they melt more efficiently with less "yield loss").

Recovers Cutting Fluids: In briquetting presses, valuable coolants and oils are squeezed out and can be collected for reuse or proper disposal.

Improves Safety & Housekeeping: Eliminates piles of sharp, hazardous scrap and reduces fire risks associated with fine turnings.

Enables Automation: Integrated systems allow for hands-off scraping from machine tools to finished bale.

Key Specifications to Consider

Pressing Force (Tons): The most critical spec. Do not under-specify. For stainless turnings, a minimum of 200-300 tons is common for a modest-sized chamber.

Chamber Size & Bale Weight: Determines your batch size. A typical bale might be 400x400x variable mm and weigh 50-150 kg.

Motor Power: Often 30-75 kW (40-100 HP) or more to drive the high-pressure hydraulics.

Density Achievable: Ask the manufacturer for the expected bale density (kg/m³). For stainless, you want the highest possible.

Cycle Time: Important for throughput. A full cycle (load, press, eject) might take 2-4 minutes.

Construction Quality: Focus on plate thickness, cylinder quality, and the specification of wear parts.

Leading Manufacturers

Specialists in Metal Briquetting/Baling: RUF (Germany - renowned for briquetting), PRONAR (Poland), MAC Corporation (Global), Metso (Global).

Heavy-Duty Industrial Baler Manufacturers: Lindemann (part of Metso), Sierra International, Bramidan, QCR Balers.

High-Quality Asian Manufacturers: Some Taiwanese and South Korean manufacturers produce robust machines for metal. Careful vetting of Chinese manufacturers is essential, though some offer capable machines at a lower CAPEX.

Critical Considerations Before Purchase

Exact Scrap Profile: Is it 95% dry 304 turnings, or a mix of wet 316 cuttings and sheet? This dictates the machine type (briquette vs. baler) and required force.

Volume & Throughput: Calculate your daily/weekly tonnage to size the machine correctly.

Floor Space & Foundation: These are extremely heavy machines (5-20+ tons) requiring a serious concrete foundation and ample room for feeding and bale removal.

Utilities: Requires robust 3-phase power and, sometimes, a coolant/oil recovery system.

Total Cost of Ownership (TCO): Consider not just purchase price, but:

Wear Parts Cost: How expensive/often to replace liners and rams?

Energy Consumption: A larger motor running frequently impacts operating costs.

Service & Support: Availability of technical help and spare parts is paramount for minimizing downtime.

In summary, a stainless steel compressor baler is a major capital investment that delivers a clear ROI for any significant generator of stainless scrap. The key is to invest in a machine that is overbuilt for the task—stainless demands extreme force and durability. Prioritize robust construction, sufficient pressing force, and reliable after-sales support over a lower initial price.
