What is a Fine Copper Granules Briquetting Machine?

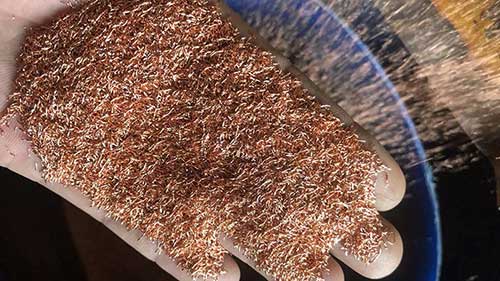

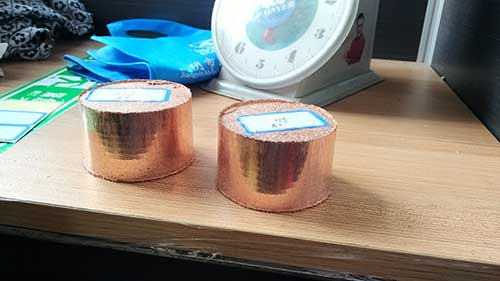

It is a specialized hydraulic briquette press designed to compress loose, fine copper granules (often a byproduct of machining, turning, milling, or recycling) into dense, solid briquettes. These briquettes are typically cylindrical blocks.

Primary Goal: To increase the bulk density of the material, reducing volume by 3x to 10x, which solves major logistical and handling problems.

Why Briquette Copper Granules?

1.Dramatically Reduced Volume: Lowers storage space and transportation costs significantly.

2.Eliminates Dust and Loss: Prevents the loss of valuable material as airborne dust, improving workplace safety and material yield.

3.Prevents Oxidation: Dense briquettes have less surface area exposed to air, reducing oxidation (formation of black copper oxide) during storage.

4.Improved Handling & Feeding: Briquettes are easy to stack, transport, and feed into furnaces (melting pots) compared to slippery, fine granules.

5.Higher Melting Efficiency: In remelting, briquettes sink into the molten bath, reducing oxidation and skimming loss, leading to higher metal recovery (>98%).

6.Economic & Environmental Value: Turns a problematic waste stream into a clean, premium-grade raw material for foundries.

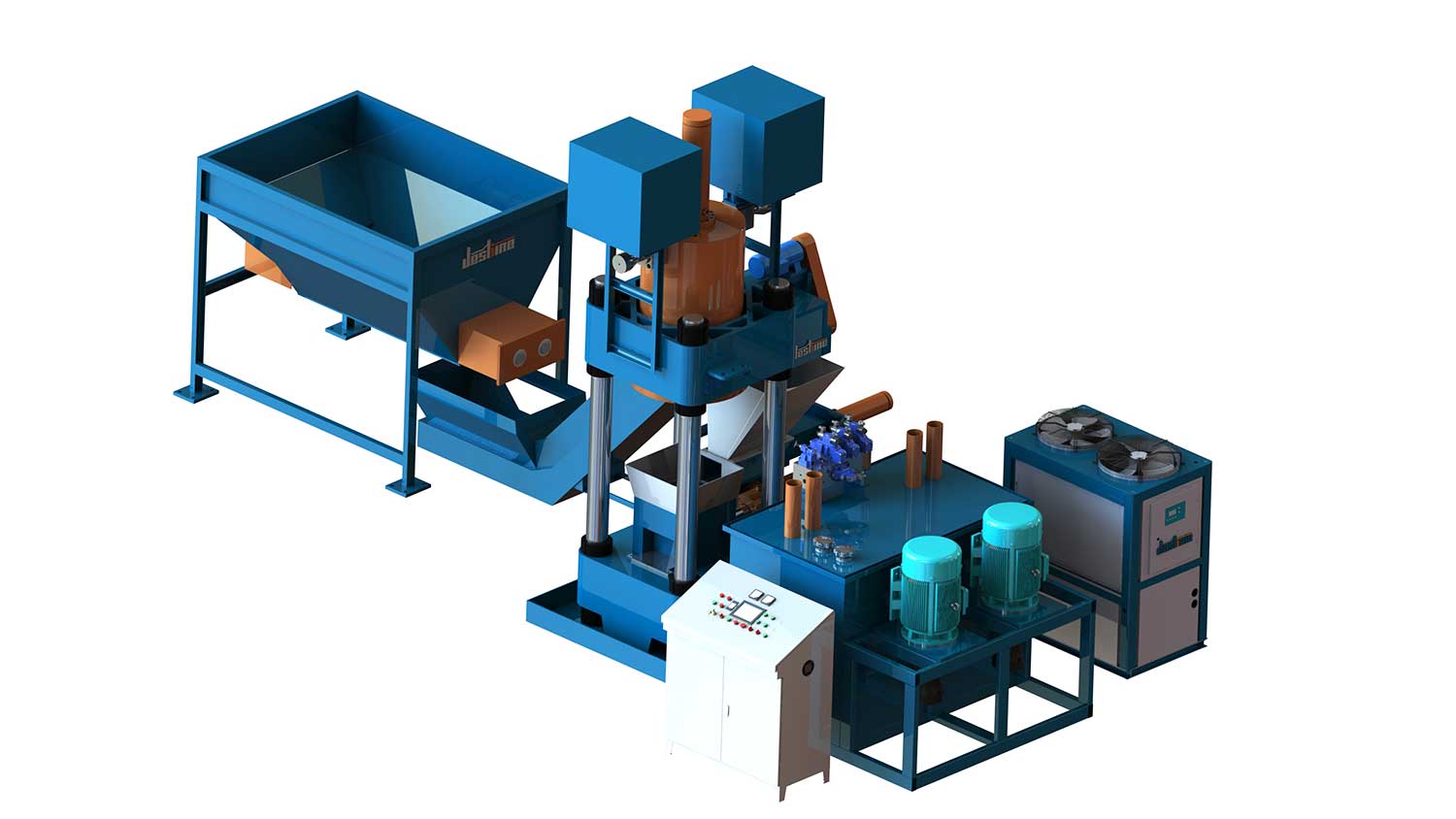

Key Components of a Hydraulic Copper Briquetter

1. Feed Hopper: Where granules are loaded, often with a stirrer to prevent bridging.

2. Pre-Compression System: A screw feeder or hydraulic ram that meters material into the main chamber and begins compaction.

3. Main Compression Chamber/Mold: The hardened steel mold that defines the briquette shape (e.g., 100mm diameter with cylindrical shape).

4. Hydraulic Power Unit: The comprising pumps, valves, accumulators, and cylinders to generate immense pressure.

5. Main Compression Cylinder: The large hydraulic cylinder that applies the final pressure (e.g., 315-630 tons).

6. Ejection System: Pushes the finished briquette out of the mold after pressure is released.

7. Control Panel (PLC): Automates the cycle (feed, compress, hold, eject), monitors pressure and temperature, and provides diagnostics.

Critical Technical & Operational Considerations

1. Material Preparation: Granules should be clean and dry. Excessive moisture or cutting oils (>1-2%) can hinder binding. A dryer may be required.

2. Particle Size: Ideally below 5mm. A consistent size distribution leads to better briquette integrity.

3. Binder Requirement: Pure copper granules typically do not need a binder. The extreme mechanical pressure causes inter-atomic diffusion (cold welding) at the contact points, creating a strong, solid briquette. For heavily oxidized fines or mixed powders, a minimal binder (<0.5%) might be used.

4. Pressure: The single most important factor. For copper, pressure typically ranges from 200 to 450 MPa (29,000 - 65,000 psi) to achieve "dry" briquettes with good green strength.

5. Briquette Density: Target is usually 85-95% of solid copper's theoretical density (8.96 g/cm³).

6. Cycle Time: A typical hydraulic press cycle (fill, press, hold, eject) takes 15-45 seconds, producing 2-4 briquettes per minute.

Typical Briquetting Process Flow

1. Collection & Conveying: Granules are collected from CNC machines, filters, or floors and conveyed (often via vacuum or screw conveyor) to a holding hopper.

2. Optional Drying/Oil Separation: If needed, granules are dried to remove moisture/coolants.

3. Feeding: Granules are fed automatically into the briquetter's feed hopper.

4. Pre-Compaction & Metering: A feeder pushes a precise volume into the main mold.

5. Main Compression: The main hydraulic cylinder advances, compressing the material at ultra-high pressure. A "dwell time" is applied to allow stress relaxation.

6. Ejection: The cylinder retracts, and an ejector plate pushes the briquette out.

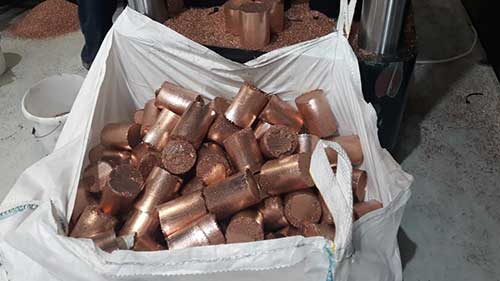

7. Collection & Storage: Briquettes fall onto a conveyor or into a bin for palletizing and storage.

Selection Checklist for Buyers

1. Material Analysis: Know your granule size, moisture/oil content, and hourly/ daily volume.

2. Required Briquette Density/Specs: Confirm required dimensions and handling strength with your recycler or foundry.

3. Machine Pressure & Capacity: Ensure the press has enough tonnage (e.g., 250+ tons) and an appropriate cycle time for your output needs.

4. Automation Level: Decide between manual, semi-auto, or fully automatic with integrated conveying.

5. Wear Parts Availability: Check the availability and cost of molds (dies), plungers, and seals.

6. Supplier Reputation: Look for manufacturers with proven experience in non-ferrous metal briquetting.

By investing in a well-chosen briquetting machine, copper processors can transform a problematic, low-value residue into a compact, high-value commodity, improving both profitability and environmental sustainability.
