"Front-out baling machine for scrap aluminum coils" is a specific industrial equipment requirement. This typically refers to equipment used to compress, bundle, and bale scrap aluminum coils (which may be scraps, defective products, or recycled aluminum coils) into neat, block-like (bag-like) packages for easy transportation, storage, and smelting.

Below, I will explain the key information about this equipment in detail:

Core Functions and Features of the Equipment

Front-out Discharge Method: This means that the bales of aluminum are pushed out from the front of the equipment. This design is usually for better connection to conveyor lines, trucks, or stacking areas, offering more flexible layout and better operator visibility.

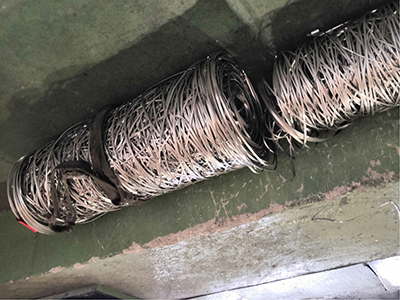

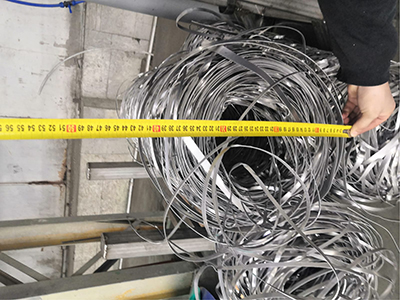

Processing Object: Scrap aluminum coils:

Irregular Shape: Aluminum coils are inherently coiled and elastic, making baling more difficult than with loose materials.

High Density: Requires very high pressure to compress them.

Processing Method: Typically, the aluminum coils need to be slightly unrolled or cut before being fed into the baler's hopper, or directly compressed using a specially designed high-strength baler.

Bagging Purpose:

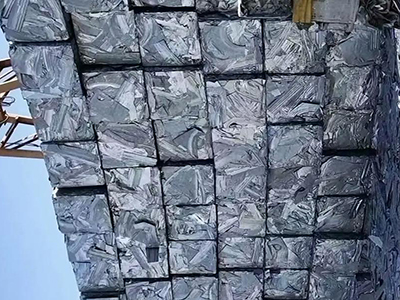

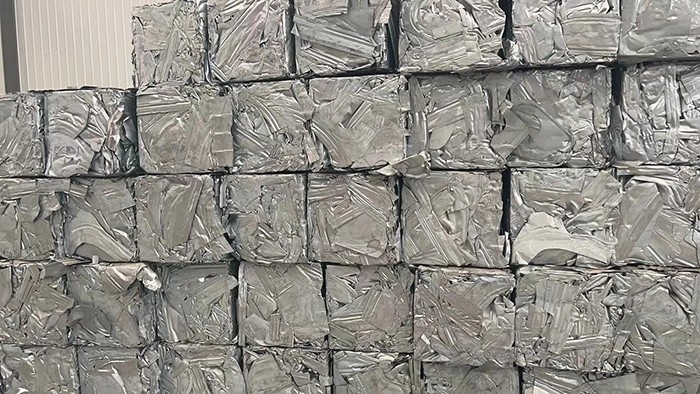

Reducing Volume: Significantly improves transportation and storage efficiency. Stable Formation: The compacted blocks prevent scattering during transport.

Easy Smelting: The well-formed blocks facilitate automated feeding and improve furnace efficiency.

Main Components and Workflow of the Equipment

Feeding System: May include a conveyor, elevator, or manual feeding port. For large coils, a crane may be required.

Main Pressure Tank: The core of the equipment. The size of the tank determines the final bale size.

Hydraulic System: Provides immense pressure (hundreds or even thousands of tons), the power source for compressing the rigid aluminum coils.

Compression Head (Main Pressure Cylinder): Compresses the scrap aluminum in the tank from above or the side.

Ejection System: After compression, the forward-ejecting cylinder pushes the formed aluminum bale out from the front of the tank.

Bundling System:

Wire Threading System: During or after compression, steel wire (or steel strip) is threaded through specific channels on the tank to wrap around the bale.

Tightening/Welding System: Tightens the steel wire or welds the steel strip to secure the bale.

Electrical Control System: PLC control enables automatic or semi-automatic cyclic operation.

Key Factors to Consider When Choosing This Type of Baler:

Raw Material Characteristics:

Thickness, width, and weight of the aluminum coil.

Is it a loose, small coil or a large, tightly packed coil?

Does it contain other materials (such as iron cores or plastic gaskets)?

Capacity Requirements:

How many tons of waste need to be processed per hour or per day?

This determines the size of the equipment and its operating speed.

Bale Size and Weight:

What size bales (length, width, height) are needed? There are usually standard sizes, such as those suitable for truck bodies or smelting furnace hoppers.

Weight of each bale (e.g., 1-2 tons).

Bale Delivery Method:

You must specify front delivery, distinguishing it from side-push, top-push, etc.

Confirm how the bales will be transferred after delivery (drop, slide, or conveyor).

Binding Method:

Wire Binding: Most common, low cost, strong.

Steel Strap Binding: More aesthetically pleasing, but may be slightly more expensive.

Several binding steps are required (usually at least 3).

Equipment Specifications:

Nominal Pressure (tonns): High tonnage is required for handling aluminum coils, commonly 200 tons or more.

Bag Size: Determines bale size.

Motor Power: Affects energy consumption.

Brands and Manufacturers:

There are many excellent heavy-duty hydraulic baler manufacturers in China (e.g., Jiangsu, Hubei, Guangdong).

International brands (e.g., Andritz, Lindemann, etc.) have mature technology but are expensive.

Factory Conditions:

Equipment footprint, height, and foundation load-bearing requirements.

Power Configuration (380V industrial power).

Suggestions and Inquiry Steps

Clarify Needs: Organize the specific data for the factors mentioned above.

Find Suppliers:Search for keywords such as "metal baler," "scrap aluminum baler," "front-discharge baler," and "aluminum coil baler" on B2B platforms (e.g., Alibaba, HC360).

Communication and Solutions: Provide your needs to multiple suppliers to obtain equipment solutions, quotations, and layout diagrams.

Site Visit and Reference: If possible, visit the supplier's factory or existing customer case studies to see their performance in handling similar materials.

After-Sales Support: Ensure the supplier can provide installation, commissioning, training, and reliable after-sales service.

In summary, you need a high-tonnage, high-strength "front-discharge hydraulic baler" specifically designed for high-density, irregular materials like scrap aluminum coils. When communicating with suppliers, be sure to provide detailed material samples and capacity requirements so they can recommend the most suitable model for you.

If you can provide more specific information (such as the approximate size of the aluminum coil, the expected bale weight, daily processing capacity, etc.), I can provide you with a more precise analysis.
