Core Principle: Safety First!

Before any maintenance, LOCK OUT / TAG OUT (LOTO) the machine. Isolate all energy sources (electrical and hydraulic). Relieve all hydraulic pressure by attempting to operate the control levers after shutting down the pump. Never service a pressurized system.

Daily Maintenance Precautions & Checklist

1. Visual Inspection (Before Startup)

Leaks: Check for any visible leaks around:

Cylinder rods and seals: Look for drips or wet streaks. A leaking rod seal can allow contaminant ingress.

Valve banks, manifolds, and connections: Look for oil accumulation.

Hose and fitting connections: Check for cracks, bulges, or abrasions on hoses.

Precaution: A small leak today is a major failure tomorrow. Tag and schedule repair immediately. Never use your hands to check for high-pressure leaks (risk of injection injury).

Oil Level:

Check the hydraulic reservoir sight glass or dipstick with the machine on level ground and the cylinders in a retracted position (if possible).

Precaution: Maintain the oil level within the recommended range. Too low leads to pump cavitation (catastrophic damage from air bubbles). Too high prevents proper de-aeration and can cause overheating.

Oil Condition: Look at the oil in the sight glass.

Color: Should be clear and amber (for new oil). Milky oil indicates water contamination. Dark, opaque oil suggests oxidation or thermal degradation.

Precaution: If contamination is suspected, investigate the source (e.g., condensation, failed cooler seals) and plan an oil change.

2. Operational Checks (During/After Warm-up)

Unusual Noises: Listen for:

Cavitation Whine or Rattle: A high-pitched noise from the pump often means it's starving for oil (clogged inlet filter, low oil level, viscous oil).

Precaution: Stop immediately if you hear this. Continuing will destroy the pump.

Performance:

Note any sluggish operation, failure to reach full pressure, or cylinder "creep" under load. These can indicate internal pump/wear or valve issues.

Precaution: Document performance changes; they are early failure warnings.

Temperature: Feel the reservoir tank (carefully). It should be warm, not hot.

Precaution: Excessive heat (>180°F / 82°C) kills oil, degrades seals, and reduces efficiency. Check if cooling fans/radiators are clean and functional.

3. Critical Component Focus

Filters:

Check the pressure filter (if equipped) and return line filter indicators. A red "clogged" indicator means the bypass valve is open, and unfiltered oil is circulating.

Precaution: Change filters as per schedule or when indicated. Never remove an indicator bulb to ignore it.

Air Breather/Cap: Ensure the reservoir breather cap is not clogged with dirt. It should allow the tank to breathe while filtering air.

Precaution: A clogged breather can create a vacuum, causing pump cavitation, or pressure, forcing seals to leak.

4. Housekeeping & Environment

Keep it Clean: Wipe down the reservoir, valves, and pumps regularly. Dirt on the outside has a way of getting inside during service.

Precaution: Before opening the system for any reason (adding oil, changing filters), clean the area meticulously. Use lint-free cloths.

Fluid Additions: Only use the hydraulic fluid specified by the manufacturer. Use a dedicated, clean transfer pump and container.

Precaution: Never pour fluid from an unsealed drum or a dirty funnel. This is a primary source of contamination.

Summary of Key Precautions

Lock Out / Tag Out (LOTO) & Depressurize: Always.

Contamination Control: Oil's biggest enemy is dirt, water, and air. Keep it sealed and clean.

Temperature Management: Avoid overheating; it degrades the system rapidly.

Leak Management: Address all leaks promptly for safety and system health.

Listen and Feel: Your senses are the best diagnostic tools for early detection.

Follow the Manual: Adhere to the OEM's specific maintenance schedule for oil and filter changes.

Record Keeping: Log daily checks, oil additions, and any anomalies. This creates a history for troubleshooting.

Final Pro Tip: Invest in periodic oil analysis. A lab report can detect wear metals, water content, and viscosity breakdown long before a failure occurs, allowing for predictive maintenance.

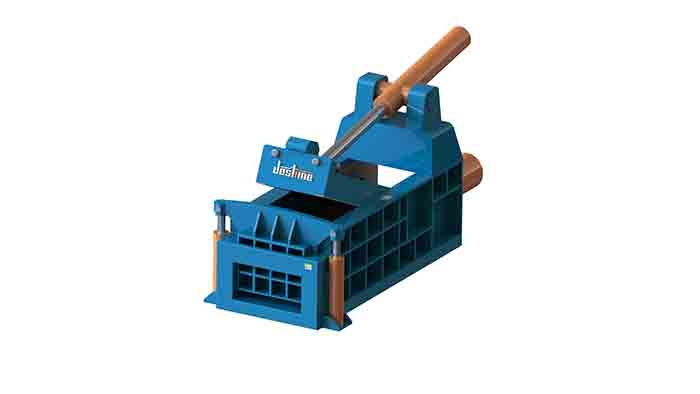

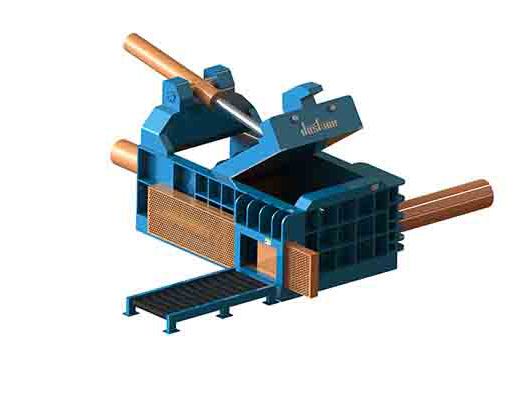

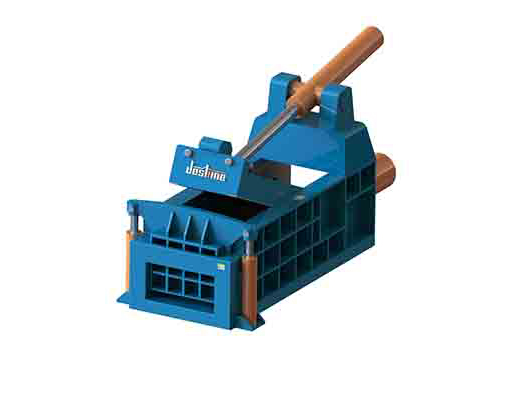

By incorporating these daily precautions, you will maximize uptime, reduce costly repairs, and ensure the safe operation of your metal baler.
