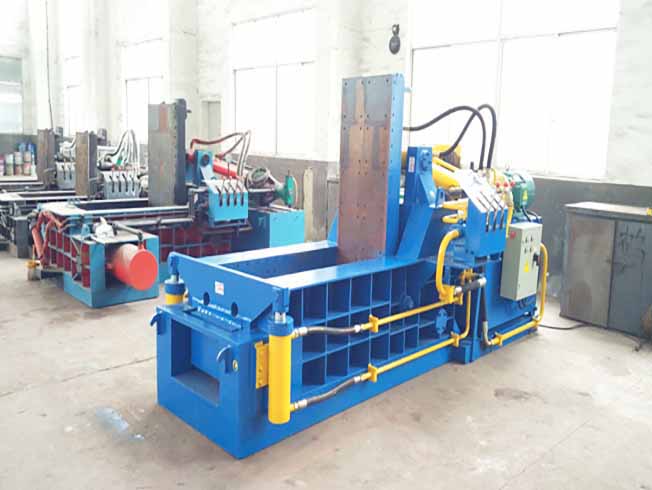

Core Concept: What is a Y81 Series Press?

The "Y81" series refers to hydraulic down-stroke packing presses (balers) primarily for metal scrap. The "Q" in Y81Q typically stands for "Quick" or signifies a specific design iteration from a manufacturer, often indicating features aimed at faster cycle times or a particular bale ejection system.

Its primary job is to compress loose, bulky scrap metal (like turnings, clips, cans, light structural steel) into dense, rectangular bales. These bales are easier to handle, transport, and charge into furnaces, saving on logistics and increasing the value of the scrap.

Key Features & Specifications of a Typical Y81Q Model

While exact specs vary by manufacturer (like Henan, Jiangsu, or other Chinese OEMs, as this is a common Chinese model designation), a standard Y81Q has these characteristics:

Press Type: Hydraulic, down-stroking.

Bale Size: Common output bale sizes are around 600mm x 600mm x variable length (e.g., 800mm, 1200mm). The "Q" may allow for adjustable bale length.

Main Ram Pressure: Typically ranges from 63 tons to 160 tons, with 100-125 tons being very common for the Y81Q.

Power: Uses a high-power electric motor (e.g., 22kW, 30kW, 37kW) to drive the hydraulic pump.

Feed Opening: Large box chamber where loose scrap is loaded.

Operation: Automatic cycling controlled by a Programmable Logic Controller (PLC). An operator loads scrap, initiates the cycle, and the press does the rest: compression, holding, retraction, and often automatic bale ejection or strapping.

Ejection System: Many "Q" models feature a hydraulic front-door ejection system. After baling, the front door opens, and a pusher plate advances to push the finished bale out, ready for strapping and removal.

Advantages of the Y81Q Design

High Density: Creates very dense, mill-ready bales that maximize payload.

Efficiency: Automatic operation requires minimal labor and increases throughput.

Safety: Equipped with safety interlocks, emergency stop buttons, and often two-handed controls for the main compression cycle.

Durability: Built with heavy-duty steel plates and robust hydraulic components for continuous industrial use.

Space Saving: The compact, dense bales reduce storage space and transportation costs significantly.

Common Applications

Scrap Yards: Processing steel turnings, borings, clips, and light iron.

Metal Machining Shops: Baling swarf (chips) and turnings from CNC lathes and mills.

Automotive Stamping Plants: Baling sheet metal off-cuts and skeletons.

Appliance Recycling: Compressing shredded white goods.

Foundries: Preparing charge material for melting.

Critical Considerations Before Purchasing

Manufacturer Variance: "Y81Q" is a generic model code. Quality, performance, and after-sales support vary dramatically between suppliers. Due diligence on the manufacturer is essential.

Throughput Needs: Match the press's cycle time (e.g., 90-120 seconds per bale) with your daily volume requirements.

Material Type: It's ideal for short and medium scrap. Very long, tangled rebar or extremely heavy plate may not be suitable.

Power Requirements: Ensure your facility has the correct electrical supply (typically 380V/50Hz/3-phase in most markets).

Hydraulic System Quality: The heart of the machine. Ask about pump, valve, and cylinder brands. Reputable components (like Rexroth, Yuken, etc.) indicate better longevity.

Safety Certifications: Check for CE, ISO, or other relevant safety and manufacturing standards.

Total Cost of Ownership: Factor in shipping, installation, potential foundation work, spare parts cost, and availability of technical support.

Typical Buying & Operation Workflow

Collection: Loose scrap is gathered in a hopper or on the floor.

Loading: Scrap is fed into the press chamber, often with a forklift or conveyor.

Cycle Start: Operator initiates the automatic cycle (door closes, main ram compresses).

Compression & Holding: The main ram compresses the scrap to a pre-set pressure and holds it to allow for plastic deformation.

Ejection: The front door opens, and the ejection ram pushes the bale out.

Strapping & Removal: The bale is manually or automatically strapped and removed by forklift.

Comparison to Other Common Presses

vs. Y81 Vertical Downstroke: The "Q" often has faster cycles and a more automated ejection system.

vs. Y82 Horizontal Baling Press: Y81Q is vertical, taking up less floor space but often requiring a pit or a feeding platform. Y82 is horizontal, easier to feed with a conveyor but has a larger footprint.

vs. Giant Shear (Giant Alligator): A shear cuts and compresses heavy, large scrap. The Y81Q bales smaller, bulkier scrap. They are complementary machines in a large yard.

Final Recommendation

The Y81Q is a workhorse for mid-volume scrap processors dealing with light to medium iron. Before purchasing:

Request multiple quotes from different manufacturers.

Ask for customer references and visit a working installation if possible.

Get a detailed specification sheet and compare components.

Clarify warranty, spare parts supply, and installation guidance.
