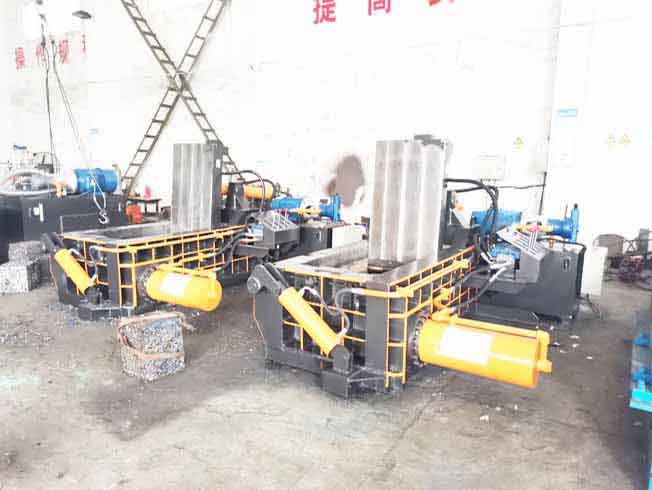

What is a Hydraulic Steel Scrap Press Baler?

It is a powerful industrial machine that uses high-pressure hydraulic cylinders to compress loose, bulky steel scrap (like turnings, shavings, light iron, cans, or even larger pieces like cars after shredding) into dense, manageable, and rectangular blocks called "bales." The primary goals are to reduce volume (by up to 90%), improve handling, lower transportation costs, and prepare material for efficient recycling in electric arc furnaces (EAFs) or foundries.

Key Components & How It Works

The operation is cyclical and can be manual, semi-automatic, or fully automatic.

Loading Chamber (Box): The open container where loose scrap is loaded, either by conveyor, crane, or manually.

Hydraulic Power Unit (HPU): The heart of the system. It consists of an electric motor, hydraulic pumps, valves, oil reservoir, and coolers. It generates the massive fluid pressure needed.

Hydraulic Cylinders: These are the "muscles." They convert hydraulic pressure into linear force.

Main Compression Cylinder(s): The largest cylinder(s) that drives the pressing head (platen) to compress the scrap.

Door/Lid Cylinders: To open and close the charging door and compression chamber.

Ejection Cylinders: To push the finished bale out of the chamber.

Press Head (Platen): The thick, heavy steel plate attached to the main cylinder that directly contacts and compresses the scrap.

Strong Frame & Body: Made from reinforced steel plate to withstand immense pressure (typically 200 to over 10,000 metric tons of force).

Control System: An electrical control panel (often with a PLC and touchscreen HMI) to operate and monitor the press cycle, pressure, and safety interlocks.

Basic Cycle:
Feed → Close Door → Pre-compress (if applicable) → Main Compression → Bind/Tie (with wire strapping) → Eject Bale.

Main Types of Scrap Balers

They are categorized by their feed and compression direction:

Downstroke Baler (Closed-End)

How it works: Material is loaded into a fixed chamber. The press head moves vertically downward from the top.

Best for: Heavier, denser scrap like #1 and #2 bundles, shredded cars, solid metal fragments.

Advantages: Creates very dense, uniform bales. Robust and common for heavy scrap.

Disadvantage: Can have slower cycle times.

Upstroke Baler (Open-End)

How it works: Material sits on a moving platen (the "bed"). The press head is fixed at the top. The bed moves upward to compress the scrap against the fixed head.

Best for: Lighter, bulkier scrap like turnings, borings, and non-ferrous materials (aluminum, copper).

Advantages: Often easier to feed continuously via conveyor. Good for stringy, tangled materials.

Horizontal Baler

How it works: Compression is horizontal. Often used with a pre-chamber or continuous feeding system.

Best for: Lower volume applications, specific shapes, or integrated into production lines. Common for non-ferrous and lighter steel scrap (e.g., cans).

Shear-Type Baler (Baler/Shear Combo)

How it works: Incorporates powerful hydraulic shears to cut overly long pieces before or during the baling process.

Best for: Mixed scrap that may contain long beams, rebar, or unsuitable lengths.

Applications & Benefits

Scrap Yards & Recycling Centers: The primary users. For processing purchased scrap for resale to mills.

Steel Mills & Foundries: To bale their own internal production scrap (crop ends, defective products) for direct reuse in the furnace.

Metalworking & Manufacturing Plants: (e.g., automotive, stamping, machining) to manage and monetize their production scrap (turnings, stampings).

Large Demolition Contractors: To process and transport structural steel from demolition sites efficiently.

Key Benefits:

Massive Volume Reduction: Drastically cuts hauling costs.

Improved Handling & Storage: Uniform bales are stackable with forklifts or cranes.

Higher Market Value: Mills prefer dense, clean bales and often pay a premium per ton.

Safer Work Environment: Reduces loose, sharp, and hazardous piles of scrap.

Environmental Efficiency: Optimizes the recycling supply chain, reducing carbon footprint from transport.

Important Considerations When Choosing a Baler

Material Type: What kind of steel scrap will you process? (Turnings, light gauge, shredded, solid?)

Required Bale Density & Size: Dictates the compression force (tons) and chamber size. Mills have specific size/weight requirements (e.g., a common bale is ~30"x30"x~varies).

Throughput (Tons/Hour): Determines needed cycle time and level of automation (manual feed vs. conveyor/crane feed).

Power Source: Typically high-voltage 3-phase electric. Diesel-powered mobile balers exist but are less common for steel.

Binding System: Automatic wire strapping is essential for high production and safety.

Space & Foundation: These are large, heavy machines that require a significant, reinforced concrete foundation.

Budget & Brand: Major global brands include Harris, ELDAN Recycling, Metso, Bramidan, MOS, and Sierra International. Chinese manufacturers offer more affordable options.

Safety

Modern balers are equipped with numerous safety features:

Gate/Door Safety Interlocks to prevent operation when open.

Two-Hand Control or light curtains for manual feeding areas.

Emergency Stop buttons at multiple locations.

Lockout/Tagout (LOTO) points for maintenance.

In summary, a Hydraulic Steel Scrap Press Baler is a critical piece of capital equipment for any serious metal recycler or generator. It transforms a chaotic, costly waste stream into a compact, high-value commodity, forming the backbone of the modern ferrous recycling industry.
