What is a Hydraulic Aluminum Can Baling Machine?

It is a machine that uses a powerful hydraulic ram to compress aluminum cans (and often other light aluminum scrap) into uniform, dense blocks called "bales." This process drastically reduces volume (by up to 90%), saves on storage and transportation costs, and prepares the material for sale to scrap dealers or smelters at a premium price.

Key Components & How It Works

Hopper/Feeding Chamber: Where loose cans are loaded.

Compression Chamber (Bale Case): The box where the bale is formed. Its size determines the final bale dimensions.

Hydraulic Power Unit (HPU): Consists of an electric motor (or diesel/gas engine), hydraulic pump, oil reservoir, valves, and controls. This is the "heart" of the machine, generating the pressure.

Hydraulic Cylinder(s): The "muscle." A large cylinder drives the ram head to compress the material.

Ram Head/Platen: The strong metal plate attached to the cylinder that actually does the compressing.

Control Panel: Features buttons, switches, and often a PLC (Programmable Logic Controller) for automatic or semi-automatic operation.

Wire Tying or Strapping System (Optional but common): Automatically or manually applies wires or straps around the finished bale to hold it together.

Door/Latch Mechanism: A secure door holds the compressed bale in place during the cycle and opens to eject it.

Basic Cycle: Load -> Compress (often in multiple stages) -> Eject.

Types of Can Balers

Vertical Balers: The ram compresses from top to bottom. More common for lower-volume operations (e.g., supermarkets, community centers). They are generally simpler and have a smaller footprint.

Best for: Up to 5,000 lbs of cans per day.

Horizontal Balers: The ram compresses from the side (or from the front in a closed chamber). They are typically fully automated, have higher output, and can produce larger, denser bales.

Best for: High-volume operations like Material Recovery Facilities (MRFs), large scrap yards, and major beverage distributors. They often include auto-tie systems and conveyor feed systems.

Two-Ram Balers (Logger/Baler): The most heavy-duty option. Uses a pre-compression ram to log the material and a main ram to create extremely dense "mill-grade" bales. Used by the highest volume processors.

Key Specifications to Consider When Buying

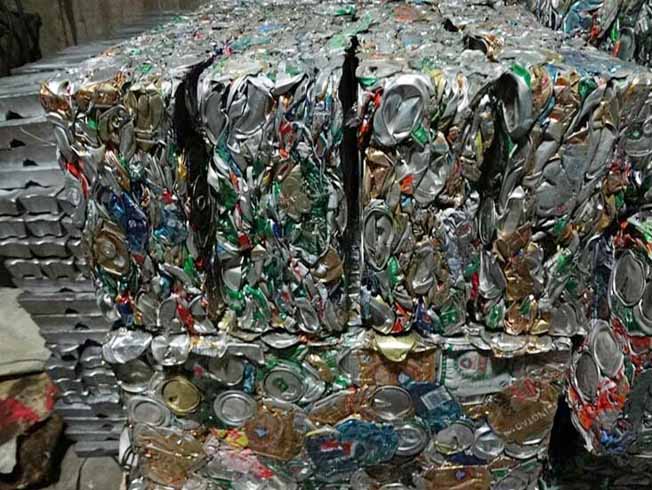

Bale Size & Weight: Common bale sizes for cans are approx. 30" x 30" x up to 48". A typical aluminum can bale weighs 800-1,200 lbs.

Bale Density: The target is usually 45-55 lbs/cubic foot for aluminum cans. Higher density means more value per load.

Cycle Time: How long it takes to make one bale (e.g., 45-90 seconds). Faster cycles mean higher throughput.

Motor Power & Pressure: Ranges from 10 HP (small vertical) to 60+ HP (large horizontal). System pressure (measured in PSI/Bar) determines the force of the ram.

Force (Tonnage): The compression force, typically 20 to 100+ tons. More tons = denser bales.

Feed Opening Size: Determines how you can load the machine (by hand, cart, conveyor).

Automation Level: Manual (operator controls all steps), Semi-Auto (auto-cycle with manual start), Full Auto (continuous cycling with auto-tie).

Benefits

Major Space Savings: Reduces storage needs by up to 90%.

Increased Transportation Efficiency: More weight per truckload = lower freight costs.

Higher Scrap Value: Processed bales command a higher price per ton than loose cans ("loose light iron" price vs. "frag" or "baled UBCs").

Cleaner & Safer Workplace: Eliminates piles of loose cans, reducing pests, spills, and fire risk.

Environmental Impact: Makes the recycling chain far more efficient and profitable.

Top Manufacturers & Price Range

Leading Brands: Harris, Al-jon (MBP), Sierra, B E Equipment, American Baler, Macpresse (for large systems).

Chinese Manufacturers: Offer many cost-effective options (e.g., Sinobaler, Huahong), but inspect quality, support, and parts availability carefully.

Price Range (Very Broad Guide):

Small Vertical Baler: $5,000 - $20,000

Medium Horizontal Baler: $25,000 - $80,000

Large, Automated Horizontal Baler: $80,000 - $200,000+

Industrial Two-Ram Baler: $250,000+

Note: Always factor in shipping, installation (concrete pad, electrical hookup), and potential costs for a conveyor or feed system.

Important Considerations Before Purchase

Volume: How many lbs/kg of cans do you process per day or month? This is the #1 factor in choosing size and type.

Space & Layout: Do you have the floor space, ceiling height, and a solid, level concrete foundation?

Power Supply: Most industrial balers require a robust 3-phase electrical supply. Check your available power.

Downstream Market: Who will buy your bales? Ask them about their preferred bale size, density, and material specifications (e.g., minimum aluminum content, no steel cans).

Safety Features: Ensure the machine has proper two-hand controls, safety gates, lockout/tagout points, and emergency stop systems.

After-Sales Support: Availability of local technicians, warranty, and spare parts is critical for minimizing downtime.

Application Examples

Municipal Recycling Centers: Horizontal balers processing curbside collected cans.

Scrap Yards: Buying cans from the public and baling them for resale.

Large Retail/Beverage Distribution: Baling back-room can waste and deposit returns.

Breweries & Beverage Plants: Baling production waste and misprints.

Non-Profits/Fundraisers: Using a small vertical baler to process collected cans for fundraising.

Final Advice: Visit a dealer or an operation using a similar machine. See it run. Get quotes from multiple suppliers, and be sure they include a clear list of specifications, delivery, and warranty terms. A hydraulic aluminum can baler is a significant investment that pays for itself through operational efficiency and increased scrap revenue.
