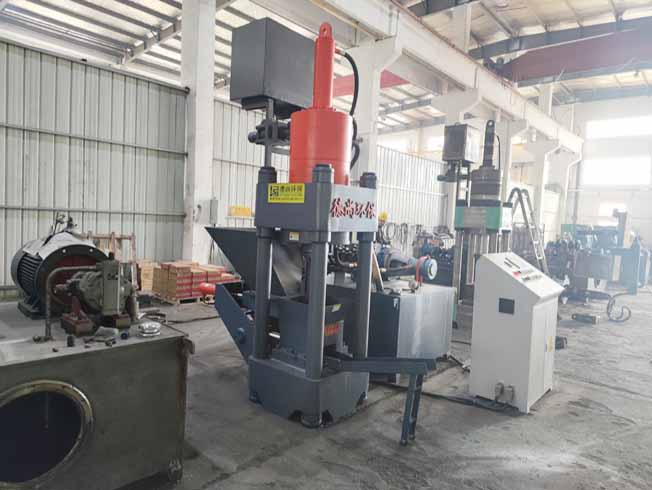

What is a Copper Chip Briquetting Press?

It is a heavy-duty industrial machine that compresses loose, often oily, copper chips, turnings, and swarf into solid, dense, and dry briquettes (pucks or logs) using extreme hydraulic pressure.

Core Purpose: From Waste to Valuable Resource

The primary goal is to transform problematic waste into a high-value, recyclable commodity. Loose chips are difficult to handle, transport, and melt efficiently.

How It Works (The Process)

Collection & Feeding: Copper chips from CNC lathes, mills, and screw machines are collected, often via conveyors or augers, and fed into a hopper on the press.

Pre-compression (Optional): Some systems use a pre-compaction auger to de-oil and increase initial density before the main press.

Main Compression: A hydraulic ram exerts immense pressure (typically 200 to over 500 tons) on the chips within a durable steel mold (die). This force:

Mechanically extrudes the majority of coolant or cutting oil.

Cold-welds the chips together into a solid mass.

Ejection: The solid briquette is ejected from the die chamber. It is often still warm (40-70°C) from the compression energy.

Oil/Coolant Recovery: The extruded oil/coolant is collected, filtered, and can often be reused, providing additional savings.

Key Benefits & Advantages

Increased Scrap Value: Briquettes command a significantly higher price per ton than loose, oily chips (often 90-95% of solid copper value vs. 60-70% for chips).

Dramatically Reduced Volume: Volume reduction of up to 10:1, slashing storage space and transportation costs.

Cleaner & Safer Workplace: Eliminates messy piles of slippery, oily chips. Reduces fire risk and improves housekeeping.

Oil Recovery: Recovers valuable cutting fluids, reducing new coolant purchases and disposal costs.

Improved Melting Efficiency: Briquettes melt faster with lower oxidation and energy loss in the furnace compared to light, fluffy chips.

Environmental Compliance: Reduces hazardous waste streams (oily waste) and promotes a closed-loop recycling process.

Key Machine Specifications to Consider

When selecting a press, manufacturers evaluate:

Briquetting Force: Ranges from ~150 tons for smaller shops to over 1,000 tons for high-volume producers. Determines briquette density.

Briquette Size/Shape: Common shapes are cylindrical "pucks" (e.g., 5-12 inches diameter) or rectangular logs. Weight typically ranges from 0.5 to 10 kg each.

Throughput Capacity: Measured in lbs/hour or kg/hour. Varies from a few hundred kg/hr to several tons per hour.

Cycle Time: Time to produce one briquette (typically 30-60 seconds).

Automation Level: Ranges from manual feeding to fully automated systems with conveyors, hoppers, and PLC controls.

Motor Power: Usually a high-power electric motor (e.g., 30-100 HP) driving the hydraulic system.

Required Chip Bulk Density: Different presses are optimized for different feed materials (fine powder vs. long stringy turnings).

Typical Applications & Industries

Copper & Brass Foundries: For in-house recycling of machining waste.

Metalworking & Machining Shops: High-volume producers of copper components (electrical fittings, valves, automotive parts).

Non-Ferrous Metal Recyclers: Processing chips collected from various manufacturers.

Industries: Electrical, plumbing, automotive, aerospace, and marine component manufacturing.

Popular Manufacturers & Brands

RUF (Germany/USA): A leading name with a wide range of models.

PRAB: Well-known for chip processing and briquetting systems.

Sweed: Offers heavy-duty briquetting presses.

Pinheiro / Cominc: Manufacturers of robust hydraulic briquetters.

Other: Anis, GFA, Metso, and many Chinese manufacturers offering competitive models.

Important Considerations Before Buying

Chip Type & Oil Content: The machine must be suited for your specific material. Very high oil content may require a two-stage or pre-draining system.

Volume: Justify the capital investment based on your monthly/annual chip generation.

Footprint & Installation: Requires solid foundation, electrical power, and space for conveyors and briquette collection.

Total Cost of Ownership: Include maintenance, spare parts (like wear parts on the die), and energy consumption.

Conclusion

A Copper Chip Briquetting Press is not just a waste processor; it's a profit center and an essential tool for sustainable manufacturing. It turns a logistical and environmental headache into a compact, clean, and highly valuable raw material stream, offering a rapid return on investment (ROI) for medium to high-volume producers.
