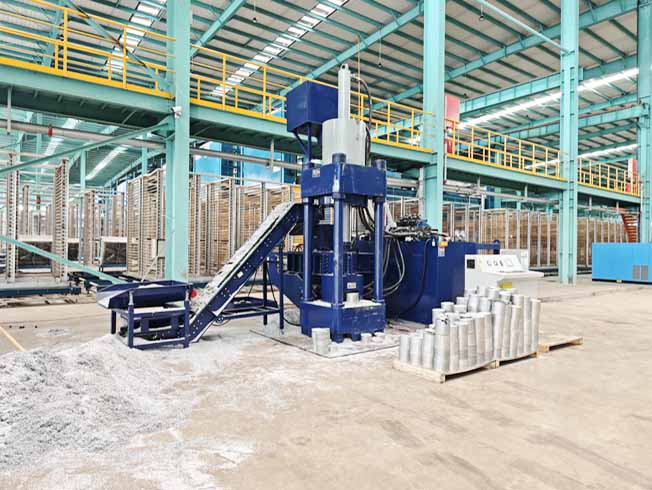

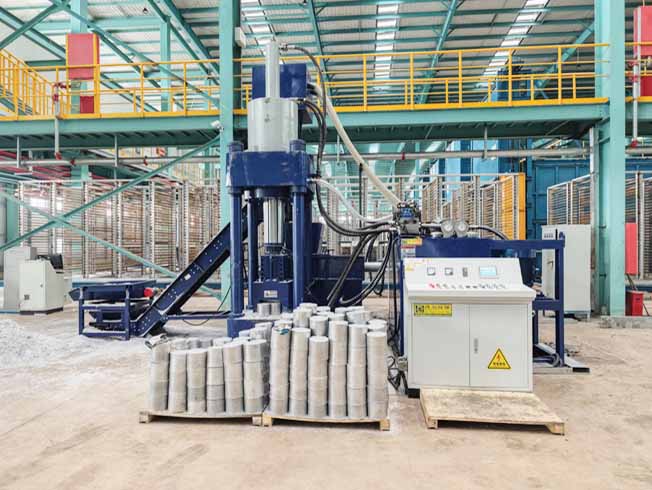

A briquetter for aluminum chips is a specialized machine, and while the general-purpose Y83 series can handle it, optimizing for aluminum has specific advantages and considerations.

Here is a detailed guide to briquetting aluminum chips, from the why to the how and what to buy.

Why Briquette Aluminum Chips? (The Compelling Case)

Aluminum chips are especially well-suited for briquetting due to their high intrinsic value and challenging physical properties.

Maximize Scrap Value: Aluminum briquettes command a premium price—often 90-95% of the clean cast aluminum ingot price. Loose, oily chips are heavily discounted (often 50-70%) due to oxidation and contaminants.

Eliminate Oxidation Loss: Loose chips oxidize rapidly, losing metal weight to unrecoverable alumina. Briquetting compacts them, minimizing surface area exposed to air.

Recover Cutting Fluid: Modern aluminum machining uses expensive coolants. Briquetting recovers 90-95% of this fluid for reuse.

Dramatic Volume Reduction: Reduce chip volume by 8:1 to 10:1. This slashes handling, storage, and transportation costs. One cubic meter of loose chips becomes a neat stack of briquettes.

Clean & Safe Shop: No more piles of wet, slippery, sharp aluminum "noodles" posing safety and housekeeping hazards.

Key Machine Specifications for Aluminum Chips

While you can use a standard Y83 press, the optimal machine will have features tailored to aluminum's characteristics:

Lower Tonnage Requirement: Aluminum is malleable. A 100-ton to 315-ton press is typically sufficient for high-density briquettes, compared to the 400+ tons needed for steel.

High-Quality Hydraulic System: Requires consistent pressure and smooth cycle times to form uniform briquettes without excessive heat buildup.

Corrosion-Resistant Components: Aluminum chips and certain coolants can be corrosive. Look for painted/powder-coated frames, stainless steel hoppers/contact parts, and compatible seals.

Advanced Coolant Filtration System: Aluminum fines can clog filters. A robust system with a magnetic separator (for any ferrous contamination) and a paper-band or cartridge filter is essential for clean coolant return.

Material-Specific Mold Design: The compression chamber/mold may be designed for optimal aluminum flow and briquette integrity.

Typical Briquetting Process for Aluminum

Collection & Conveyance: Chips from CNC machines are transported via drag, hinge-belt, or pneumatic conveyor to the briquette press hopper.

Automatic Feeding & Pre-compaction: The machine's cycle starts, filling the chamber. A pre-compaction cylinder often tamps the light, fluffy chips.

Main Compression: The main hydraulic ram exerts high pressure (e.g., 200 tons), squeezing out virtually all trapped coolant and forming a dense, hot briquette.

Ejection & Cooling: The solidified briquette (typically 6-12 kg each) is ejected. It will be hot to the touch but solid enough to handle.

Coolant Management: Recovered coolant drains into a filtration unit and is returned to the machine tool sump or central system.

Recommended Machine Types & Models

1. Standard Vertical Briquetting Press (Y83 Series - Best All-Around Choice)

Models: Y83-160, Y83-200, Y83-315 are the most common for aluminum.

Pros: Proven design, excellent density, high coolant recovery, fully automatic.

Ideal For: Most machine shops and foundries with moderate to high volume.

2. Horizontal Briquetting Press

Pros: Often easier to integrate with conveyor systems, lower profile, good for automation lines.

Cons: Footprint can be longer.

Ideal For: Facilities with space constraints or automated chip-handling systems.

3. Low-Investment Options

Manual or Semi-Automatic Presses: Smaller capacity, require more labor. Suitable for job shops with very low chip volume.

Critical Buying Considerations

Chip Form: Are they fine "milled" chips, long "turned" strings, or a mix? Stringy chips may require a crusher/pre-processor upstream for ideal briquetting.

Volume & Briquette Goals:

Chips Generated: Kg/hour or tons/day.

Desired Briquette Size/Weight: Standard is ~6-8 kg cylindrical "pucks."

Desired Density: This directly impacts scrap value. A good press should achieve > 2.2 g/cm³ for aluminum.

Coolant Type: Inform the manufacturer if you use emulsion, synthetic, or straight oil. This affects material compatibility.

Automation Level:

Basic: Manual load, auto-cycle, manual offload.

Turnkey: Integrated conveyor from machines → crusher → briquetter → briquette conveyor to container.

Manufacturer & Support: This is key. Look for manufacturers with specific experience in aluminum. Ask for:

References from aluminum customers.

Warranty details (at least 1 year on hydraulic and electrical systems).

Availability of spare parts and service support.

Estimated Cost & ROI

Machine Cost: Can range from $40,000 USD for a basic Y83-160 to $150,000+ USD for a fully automated, high-capacity system with conveyors.

ROI Calculation: Often 12 to 24 months. Calculate based on:

Increased scrap revenue (briquette price vs. loose chip price).

Savings on new coolant purchases.

Elimination of chip hauling/ disposal costs.

Labor savings in chip handling.

Top Manufacturers to Research

Global Leaders: PRAB (USA), Ruf (Germany), Metso (Finland).

Established Chinese Brands (often Y83 builders): Jiangsu Huahong Technology, WANSHIDA, Harden, Hengli. Always verify quality and request factory audits.

Regional/Used Equipment Suppliers: Can offer good value.

Final Recommendation: For a facility dedicated to aluminum machining, investing in a high-quality, automated Y83-200 or Y83-315 briquetting press with a robust filtration system is the industry-standard solution. It transforms a waste problem into a significant profit center while dramatically improving shop floor operations.

Action Step: Before contacting suppliers, collect a 20-liter sample of your chips (with coolant). This allows potential vendors to test them and provide guaranteed performance data (density, dryness, cycle time)
