What is a Scrap Metal Press Baler?

A scrap metal baler is a heavy-duty industrial machine used to compress loose, bulky scrap metal (such as turnings, clips, cans, or light iron) into dense, manageable, and transportable rectangular blocks or "bales." This process is crucial for efficient logistics, recycling economics, and safety.

Core Objectives of Baling:

Volume Reduction: Reduces volume by up to 90%, drastically cutting transportation and storage costs.

Material Handling: Creates uniform, stackable bales that are easy to handle with cranes or forklifts.

Value Maximization: Clean, dense bales fetch higher prices from steel mills and foundries as they are more efficient to melt.

Safety: Removes voids and loose, sharp edges, making material safer to handle and store.

Recycling Efficiency: Is the essential first step in preparing scrap for the melting furnace.

Main Types of Scrap Metal Balers

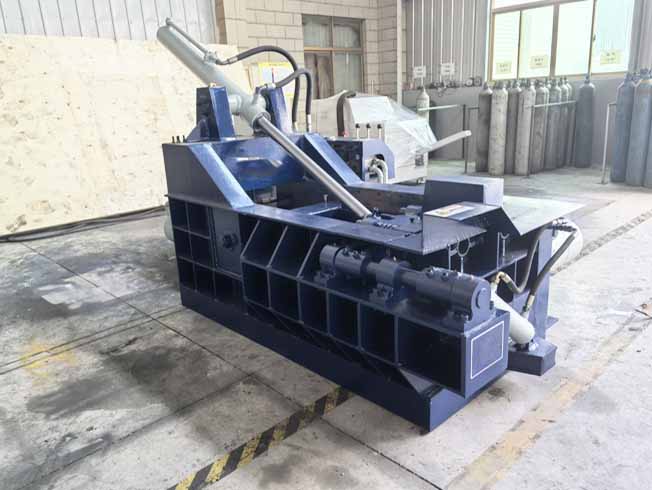

1. Horizontal Balers (Closed-End Balers)

How it works: Material is fed into a charging box. A massive hydraulic ram compresses the metal horizontally into a stationary compression chamber. The bale is tied off (with wire) and ejected from the front or side.

Best for: High-volume processing of mixed light iron, sheet metal, cans, and non-ferrous metals (aluminum, copper). Common in large scrapyards and recycling plants.

Output: Dense, wire-tied rectangular bales (e.g., "mill grade" bales).

2. Downstroke Balers (Vertical Balers / Open-End Balers)

How it works: Material is loaded into a chamber from the top or side. A top-mounted hydraulic ram presses down vertically to compress the metal. The bale is usually manually tied and removed from the bottom or side.

Best for: Lower volume applications, lighter gauge metals, manufacturing plants (dealing with production scrap), and smaller recycling centers.

Output: Smaller bales, often easier to manage for specific in-house recycling.

3. Shear-Type Balers (Shear/Baler Combination)

How it works: A powerful hydraulic shear first cuts and pre-processes large, irregular pieces (like beams or plates), and then a ram compresses the cut pieces into a bale. Often fully automated.

Best for: Heavy, bulky scrap (structural steel, demolition scrap, white goods like cars and appliances).

Output: The densest, highest-quality "shredder feed" or "foundry ready" bales.

Key Components & Working Principle

Structural Frame: Ultra-strong, welded steel construction to withstand immense pressure (often hundreds of tons).

Hydraulic System: The heart of the machine. Consists of:

Hydraulic Power Unit (HPU): Electric or diesel-powered pumps, valves, and fluid reservoir.

Hydraulic Cylinders: Massive rams that generate the compression force (e.g., 100 to 10,000+ tons).

Compression Chamber (Box): The reinforced enclosure where the bale is formed.

Platen / Ram Head: The pressing face attached to the cylinder that directly compresses the material.

Feed System: Can be manual (using a forklift or crane) or fully automated (conveyor belts, feed hoppers).

Control System: A programmable logic controller (PLC) with an operator cabin. Manages the baling cycle, pressure, safety interlocks, and diagnostics.

Tying/Wiring System (Auto-Tye): Advanced balers automatically bind the finished bale with steel wires.

Basic Cycle: Feed -> Pre-compress (if applicable) -> Main Compression -> Hold at Pressure -> Eject -> Tie Wire -> Eject Finished Bale.

Applications & Materials Processed

Ferrous Scrap: Light iron, sheet metal, steel clips, turnings, #1 and #2 bundles, cans, appliances ("white goods"), prepared car bodies.

Non-Ferrous Scrap: Aluminum UBCs (cans), extrusions, siding; copper wire, cuttings; brass solids.

Industries: Scrap metal recycling yards, foundries, steel mills, automobile manufacturers, metal fabrication shops, and waste management facilities.

Advantages & Considerations

Advantages:

Major Cost Savings on transportation and storage.

Increased Revenue through higher sale prices for baled scrap.

Improved Safety and housekeeping in the work environment.

Environmental Benefit by promoting efficient recycling.

Key Considerations When Choosing a Baler:

Material Type & Volume: What scrap are you processing and how much per hour/day?

Required Bale Density & Size: What does your buyer (mill) require?

Power Source: Electric (for fixed facilities) or Diesel (for mobile/remote use).

Automation Level: Manual feed vs. fully automatic conveyor-fed systems.

Space & Installation: Balers require significant space and often a concrete foundation.

Conclusion

A scrap metal press baler is not just a compactor; it is a fundamental piece of capital equipment for any serious metal recycling operation. It transforms a chaotic, low-value, and hazardous pile of scrap into a premium, commodity-grade product, driving the economics and efficiency of the global metal recycling industry. Selecting the right type (horizontal, vertical, or shear) is critical and depends entirely on the specific material stream and business goals.
