Copper Particle Briquetting Machine

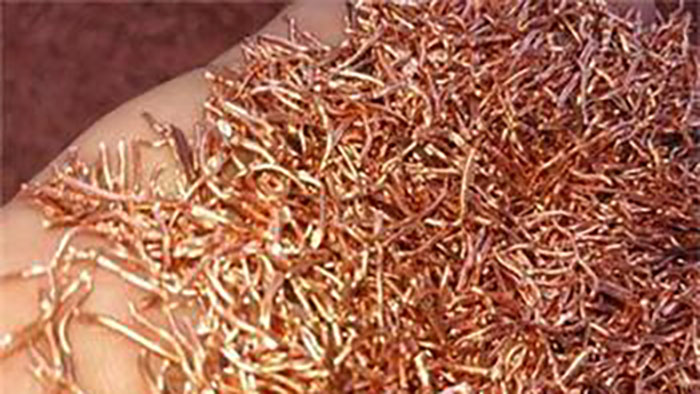

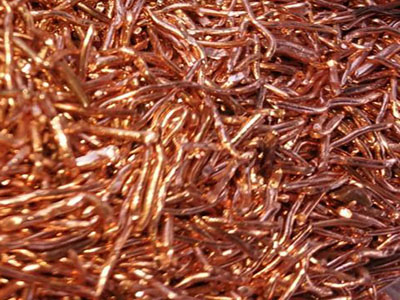

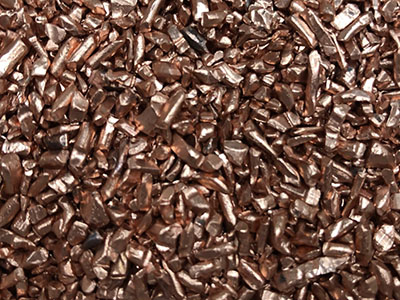

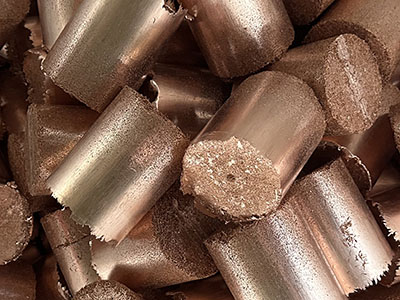

The "Copper Particle Briquetting and Baling Machine" is a key piece of equipment in the scrap copper recycling, processing, and smelting industry. It is mainly used to compress loose, low-bulk-density copper particles (turned, shaving, and scrap, etc.) into high-density, well-formed copper blocks or balers under high pressure.

This not only significantly reduces volume, facilitating transportation and storage, but also improves furnace feeding efficiency, reduces burn-off and oxidation, making it an essential piece of equipment for improving economic efficiency.

I. Main Types and Working Principles

Based on automation level and production needs, the main types are as follows:

Vertical Bread Press

Principle: Material is added from the top hopper. The main hydraulic cylinder in the vertical direction drives the press head to apply high pressure downwards, compressing the material within the mold cavity. Typically used for producing high-density cubic or cylindrical blocks.

Features: Relatively simple structure, small footprint, high bale density, suitable for small to medium-sized recycling stations or scenarios with relatively low production volume.

Horizontal Bread Press

Principle: Material is added from the side hopper. The main hydraulic cylinder in the horizontal direction drives the press head for compression. After compression, the side pusher cylinder pushes the bale out.

Features: Higher degree of automation, easy to achieve continuous production, large hopper capacity, suitable for processing large batches of loose materials.

Hydraulic Bread Press

This is the most common power type, utilizing a hydraulic system (oil pump, cylinder, valves) to provide stable and powerful pressure (pressure can reach hundreds or even thousands of tons).

Advantages: Powerful, stable operation, good controllability, and able to maintain pressure to ensure the quality of the formed briquettes.

Fully Automatic Copper Scrap Briquette Machine

Integrates automatic feeding, weighing, compression, ejection, conveying, and bundling functions.

Features: Requires minimal manual intervention, high production efficiency, low labor intensity, and suitable for modern, large-scale production lines.

II. Key Components

A typical hydraulic copper granule pressing machine usually includes:

Main Frame: Welded from high-strength steel plates, bearing all working pressure.

Hydraulic System: The heart of the machine, including the motor, hydraulic pump, cylinders, control valves, and oil tank.

Mold/Bag: Determines the shape (square, cylindrical, hexagonal, etc.) and size of the final bale.

Electrical Control System: PLC control, enabling automatic and manual operation modes, and equipped with safety interlock functions.

Feeding/Discharging System: (Automatic models) May include conveyors, elevators, etc.

III. Technical Parameters to Consider When Selecting Equipment

Nominal Pressure (tons, T): Determines the density to which the material can be pressed. Copper granules typically require high pressure.

Bag Size/Bale Size: Determines the amount of material fed at one time and the final bale dimensions.

Bale Density: A core indicator, directly related to the pressing effect. A good machine produces copper blocks with high density that are less prone to crumbling.

Productivity (packages/hour): Select based on your production needs.

Automation Level: Decide between manual, semi-automatic, or fully automatic based on your investment budget and labor costs.

Brand and Quality: Pay attention to the frame steel, hydraulic components (such as reputable brands of oil pumps and valves), welding processes, etc.

IV. Application Scenarios

Scrap Metal Recycling Companies: Process copper shavings collected from various channels.

Machine Processing Plants/Lathe Workshops: Process large quantities of copper cutting shavings generated during their own production processes.

Copper Smelters/Foundries: Use pressed copper blocks as high-quality furnace feed for smelting.

Ports or Large Material Transfer Centers: Facilitate long-distance transportation of bulk copper materials.

V. Purchasing Recommendations

Clarify Your Needs: Assess daily/monthly processing volume, material condition (oil content, impurity ratio), available space, power configuration, etc.

Emphasis on Equipment Materials and Core Components: Don't just focus on price; a robust frame and a reliable hydraulic system are crucial for the long-term stable operation of the equipment.

On-site Inspection and Trial Run: If possible, visit the equipment manufacturer or existing customers and conduct trial runs with your own materials to visually verify the briquetting effect.

Pay Attention to After-Sales Service and Spare Parts: Ensure the supplier can provide timely technical support and a supply of vulnerable parts.

Safety First: Equipment must be equipped with comprehensive safety protection devices (such as photoelectric protection, two-hand operation buttons, emergency stop, etc.).

VI. Major Market Brands (Examples)

International Brands: Andritz, Lindemann, etc., advanced technology, expensive.

Leading Domestic Brands: Jiangsu Huahong, Hubei Lidi, Henan Dajia, etc., relatively high cost-performance ratio, large market share.

Numerous Local Manufacturers: Intense price competition, quality must be carefully assessed.

Summary and Recommendations: For copper granule pressing, hydraulic vertical or horizontal pressing machines are the mainstream choice. You need to determine the specific model based on production scale and automation requirements. Before making a purchasing decision, it is strongly recommended to provide your material samples to multiple equipment suppliers, obtain specific equipment solutions and quotations, and conduct a comprehensive comparison.
