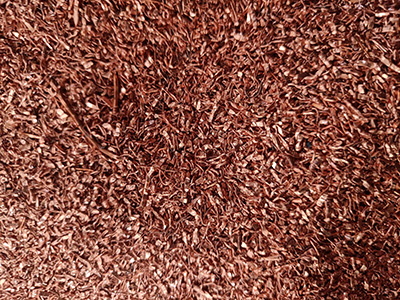

A Fully Automatic Hydraulic Metal Chip Vertical Press Machine is a heavy-duty industrial machine designed to compress loose metal chips, turnings, and swarf (generated from machining operations like milling, turning, and drilling) into dense, dry briquettes (pucks or logs). This process is crucial for recycling, reducing waste volume, and improving material handling in metalworking industries.

Core Purpose and Benefits

Volume Reduction: Reduces the volume of metal scrap by up to 90%, drastically cutting storage and transportation costs.

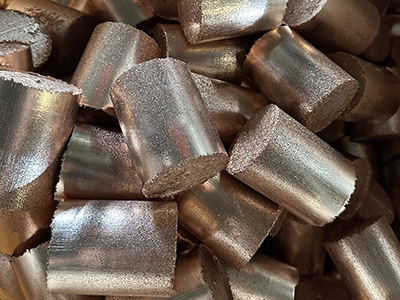

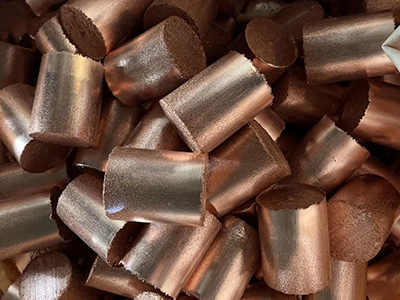

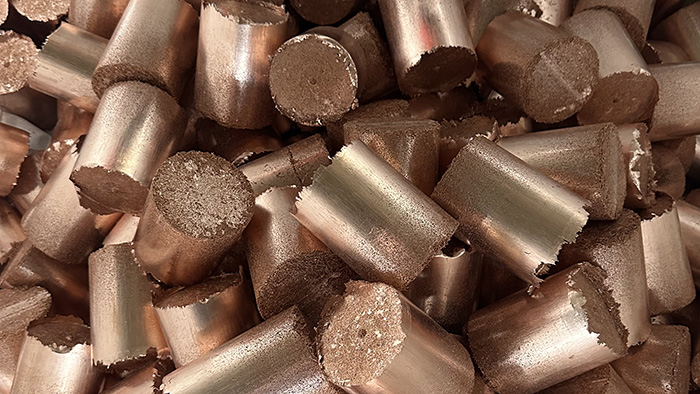

Material Recovery: Produces compact briquettes that are clean, dry, and high in density, making them ideal for direct melting in furnaces. This increases their resale value to scrap dealers or foundries.

Coolant Recovery: Squeezes out and separates cutting oils or coolants from the chips, allowing for coolant reuse and generating drier scrap.

Automation & Efficiency: The fully automatic cycle minimizes labor, enhances safety, and ensures consistent, high-volume output.

Cleaner Workplace: Reduces mess, fire hazards, and the footprint of loose, tangled chips.

Key Components

Vertical Press Frame: A robust C-frame or four-column structure that houses the pressing chamber and handles high pressures.

Hydraulic Power Unit: The heart of the machine, consisting of an electric motor, hydraulic pump, valves, and an oil tank. It generates the massive force required for compression (typically ranging from 100 to 500 tons or more).

PLC Control System: The brain of the operation. A Programmable Logic Controller allows for fully automatic cycles, parameter setting (pressure, time), fault diagnostics, and integration with peripheral systems.

Loading System (Hopper/Bin): An automated feeding system (often a conveyor or a hopper with a pre-compactor) that continuously supplies loose chips into the pressing chamber.

Pressing Chamber & Mold: The compartment where chips are compressed into a specific shape (cylindrical, rectangular) using a hydraulically driven ram.

Ejection System: A hydraulic pusher that automatically discharges the finished briquette after the compression cycle.

Coolant/Oil Collection Tray: Channels the extracted liquids away from the briquette for collection and recycling.

Typical Fully Automatic Work Cycle

Feeding: Loose chips are automatically conveyed into the pressing chamber.

Pre-compaction (Optional): A pre-press ram may compact the chips to maximize the chamber's fill rate.

Main Compression: The main hydraulic ram exerts extreme pressure (e.g., 200-400 bar) on the chips, compacting them and extruding residual liquid.

Pressure Holding: The pressure is maintained for a few seconds to ensure the briquette holds its shape.

Briquette Ejection: The rear ejector ram pushes the solid, dense briquette out of the chamber.

Return Stroke: The rams retract, and the machine is ready for the next cycle. The entire process takes 30 to 60 seconds.

Applications

Machine Shops & Automotive: Processing aluminum, cast iron, steel, brass, and copper chips.

Aerospace Industry: Handling high-value exotic alloys (e.g., titanium, Inconel).

Foundries and Steel Mills: Recycling own in-house scrap.

Large-Scale CNC Manufacturing Facilities.

Selection Considerations

Material Type: Different metals require different pressures (e.g., steel needs higher pressure than aluminum).

Chip Volume/Hour: Determines the required machine size and cycle time.

Desired Briquette Density/Size: Shapes and weights can often be customized.

Coolant Content: Machines can handle wet or pre-dried chips.

Automation Level: Integration with existing conveyors or chip wringers.

Pressure Force (Tonnage): Ranges from small (25-ton) to very large (500+ ton) presses.

Leading Manufacturers

PRAB (USA)

Ruf (Germany)

Metso (Lindemann series)

Nederman (Lanner series)

Orwak (Sweden)

ACA Industry (Denmark)

Many Chinese and Indian manufacturers also produce robust models.

Conclusion

This machine is a cornerstone of modern, efficient, and sustainable metalworking operations. It transforms a problematic waste stream (loose, oily chips) into a valuable, compact commodity, offering a rapid return on investment through scrap revenue increase and cost savings.
