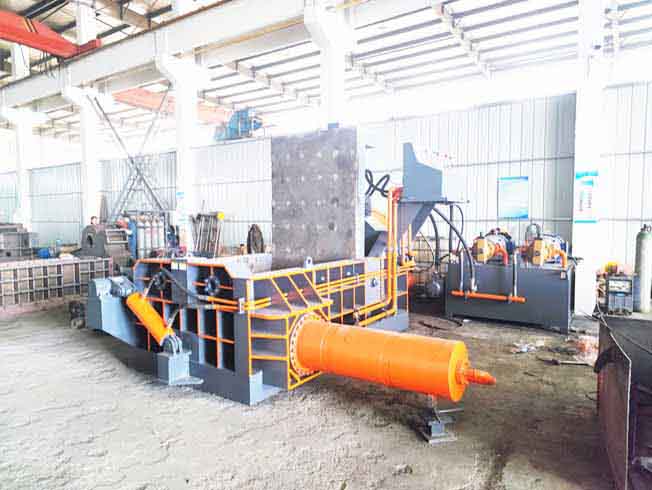

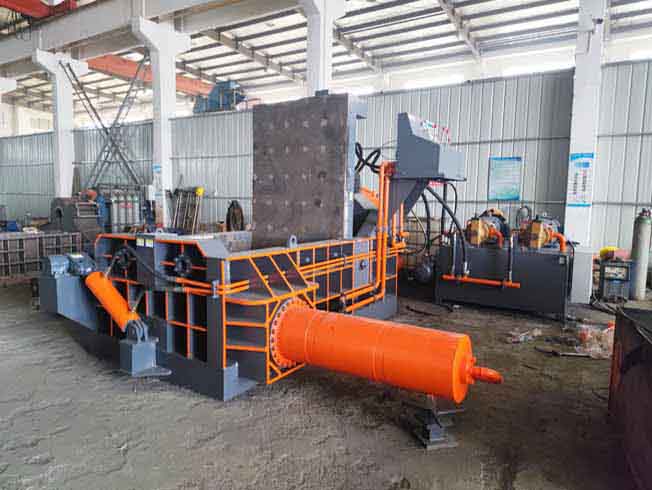

What is a Hydraulic Compact Metal Scrap Baler?

It is a powerful, self-contained machine that uses a hydraulic system to compress loose metal scraps (like turnings, clips, cans, wires, and non-ferrous fragments) into dense, rectangular, and manageable bales. The "compact" designation means it's typically a smaller, standalone unit, often a downstroke baler or a small horizontal baler, designed for in-plant use rather than massive scrapyard operations.

Core Purpose

Volume Reduction: Reduces the volume of scrap by up to 90%, drastically cutting storage space and transportation costs.

Material Handling: Creates uniform, stackable bales that are easy to handle, store, and transport using forklifts or cranes.

Recycling Efficiency: Produces "mill-ready" bales that fetch higher prices from recycling mills due to their density, purity, and ease of melting.

Workspace Cleanliness: Helps maintain a clean and safe work environment by containing loose, sharp, and hazardous scrap.

Key Components

Strong Welded Frame: Provides structural integrity to withstand immense pressure (often 50 to 200+ tons).

Hydraulic Power Unit: The heart of the system. Includes an electric motor, hydraulic pump, oil reservoir, valves, and cooling system.

Hydraulic Cylinders: Act as the muscle. The main cylinder drives the pressing platen. Auxiliary cylinders may operate doors or feed boxes.

Pressing Chamber (Box): The compartment where scrap is loaded and compressed.

Platen (Press Head): The heavy steel block attached to the main cylinder that applies the pressing force.

Door/Lid with Locking Mechanism: A heavy door that securely contains the scrap during compression, often with hydraulic locks.

Electrical Control Panel: Houses the control system (manual, semi-automatic, or fully automatic) for safe and easy operation.

Bale Ejection System: Can be manual (using a forklift) or automated (hydraulic ejector plate).

How It Works (Operating Cycle)

Loading: The operator fills the pressing chamber with loose metal scrap.

Closing: The door is closed and hydraulically locked.

Compression: The operator initiates the cycle. The hydraulic pump drives the main cylinder, forcing the platen down and compressing the scrap with tremendous force.

Bale Forming: The scrap is compressed into a tight block. Many balers include a "strapping notch" to allow wires or straps to be tied around the bale while still under pressure.

Ejection: After compression, the door opens, and the finished bale is ejected (manually or automatically).

Return: The platen retracts to its starting position, ready for the next cycle.

Common Types of Compact Metal Balers

Downstroke (Closed-Door) Balers: The most common "compact" type. The platen presses down from the top into a fixed chamber. Ideal for mixed and heavier scraps. Very safe due to the enclosed pressing area.

Horizontal (Chamber) Balers: Scrap is loaded into a horizontal feed box, and a horizontal ram pushes it into the main chamber where it is compressed. Often used for longer, stringy turnings or continuous feeding.

Mini Balers / Can Balers: Very small units designed specifically for crushing aluminum cans or thin non-ferrous materials into small blocks.

Typical Materials It Can Bale

Ferrous: Steel turnings, chips, clips, stampings, light iron, cans.

Non-Ferrous: Aluminum turnings, extrusions, cans, copper wire, brass fragments.

Exclusions: Not designed for solid blocks, engines, or very high-tensile materials without modification.

Advantages

Space Savings: Drastically reduces scrap volume.

Cost Savings: Lowers hauling and logistics costs; increases scrap revenue.

Safety: Reduces fire risk from oily turnings, minimizes sharp edges, and contains flying debris.

Efficiency: Improves housekeeping and material flow in the workshop.

Environmental: Promotes recycling and reduces carbon footprint from transport.

Selection Considerations

Material Type: What kind of metal scrap (density, form, oil content)?

Required Bale Size & Weight: What dimensions and density are desired by your recycling buyer?

Press Force (Tonnage): Determines final bale density (e.g., 50-ton, 100-ton).

Chamber Size: Dictates the size of the input scrap and output bale.

Cycle Time: How many bales per hour are needed?

Automation Level: Manual, semi-auto, or fully automatic with conveyor feed?

Space & Power Requirements: Ensure the plant floor and electrical supply can support it.

Leading Manufacturers (for reference)

Global: MOS (Germany), Bramidan (Denmark), Maren Engineering (USA), Enerpat (UK/China).

Regional/Chinese: Many competitive manufacturers offer reliable compact balers, which are popular worldwide for their cost-effectiveness.

In summary, a Hydraulic Compact Metal Scrap Baler is an essential piece of equipment for any workshop, factory, or scrapyard generating metal waste. It transforms a messy, space-consuming liability into a neat, profitable, and recyclable commodity.
