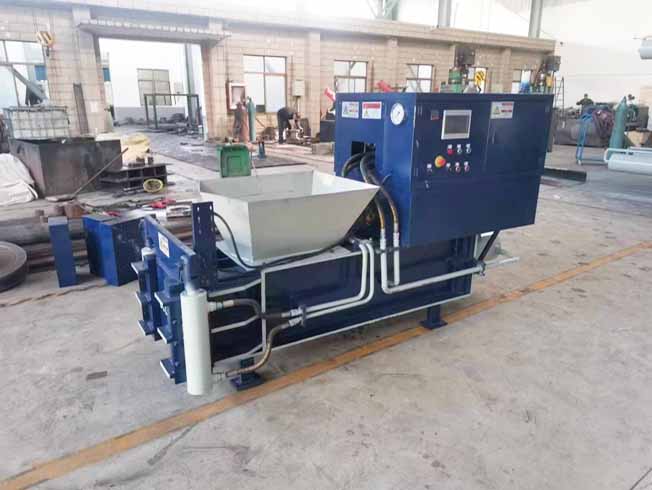

What is a Forward Out Baler?

It's a horizontal scrap metal baler. The "Forward Out" refers to the direction in which the finished bale (or "biscuit") is ejected. After the compression cycle is complete, the main compression platen moves further forward to push the dense bale out of the chamber through the front door and onto a waiting conveyor, truck bed, or the floor.

This contrasts with an "Up Stroke" or "Down Stroke" baler where the bale is ejected vertically, or a "Side Eject" baler.

How It Works (The Operating Cycle):

Loading (Charging): The large feed box (hopper) at the top is filled with loose scrap metal (e.g., sheet metal, turnings, wire, cans, appliances, light iron).

Pre-compression (Optional but common): A pre-compression lid may press down to flatten the material and allow for a larger initial charge.

Main Compression: The massive main hydraulic ram pushes a platen horizontally into the compression chamber, squeezing the scrap with extreme force (typically from 100 to over 1,000 tons).

Bale Ejection ("Forward Out"): Once the bale reaches its preset density and size, the front door opens. Instead of retracting, the main ram continues its forward stroke, pushing the finished bale straight out of the chamber.

Reset & Repeat: The ram retracts, the front door closes, and the machine is ready for the next cycle.

Key Components:

Heavy-Duty Frame & Chamber: Welded steel construction to withstand immense pressure.

Main Hydraulic Cylinder: The powerhouse that generates the compression force.

Hydraulic Power Unit (HPU): The pump, valves, reservoir, and cooler that drive the system.

Feed Box (Hopper): The opening where material is loaded, often with a safety grate.

Front Door/Lid: A heavy, lockable door that forms the front of the compression chamber and opens for bale ejection.

Control System: Usually a PLC-based control panel for automated cycling, safety interlocks, and diagnostics.

Bale Ejector Conveyor (Optional): Often integrated to move the heavy bale away from the machine.

Typical Applications:

Scrap Yards & Recycling Centers: The primary user, for processing:

Light Iron & Sheet Metal

Old Appliances (White Goods)

Car Bodies (shredded or flattened)

Non-Ferrous metals (Aluminum, Copper)

Manufacturing Plants: To bale their production scrap (stampings, cuttings) for resale.

Auto Wreckers: To bale "car shells" after stripping.

Metal Foundries: To create compact furnace charges.

Advantages of the Forward Out Design:

High Density & Consistent Bales: Produces very dense, stackable bales that maximize transport and melt yield.

Efficient Ejection: The ejection is part of the main compression stroke, making the cycle fast and efficient.

Easy Bale Handling: Bales are ejected at floor level or onto a conveyor, making them easy to move with a forklift or grapple.

Good Safety: The loading hopper is separate from the compression chamber, and operators are typically away from the main compression area during the cycle.

High Volume Processing: Designed for continuous, heavy-duty operation.

Considerations:

Footprint: Requires significant floor space, both for the machine and the bale ejection area.

Capital Cost: A major investment compared to smaller vertical balers or loggers.

Foundation & Power: Needs a strong concrete foundation and a high-power electrical supply (often 3-phase).

Maintenance: Requires regular hydraulic system and structural maintenance due to high stresses.

Popular Manufacturers/Brands:

SIEDON (China),ENERPAT (UK/Global),MOSLEY (US),ELVEM (Turkey),MAC (US),Beckers (Germany),QCR (UK)

In Summary:

A Forward Out Hydraulic Scrap Metal Baler is a workhorse machine for any operation needing to process large volumes of bulky, loose scrap metal into dense, manageable, and profitable bales. Its defining characteristic is the horizontal ejection of the finished bale, which offers a robust and efficient solution for mid-to-large scale scrap recycling.
