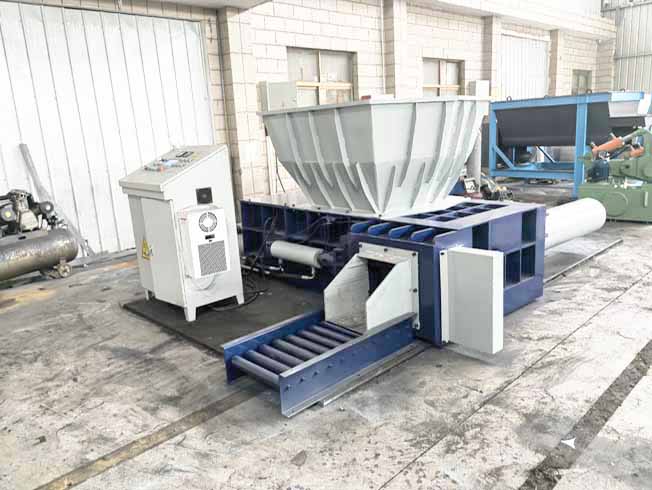

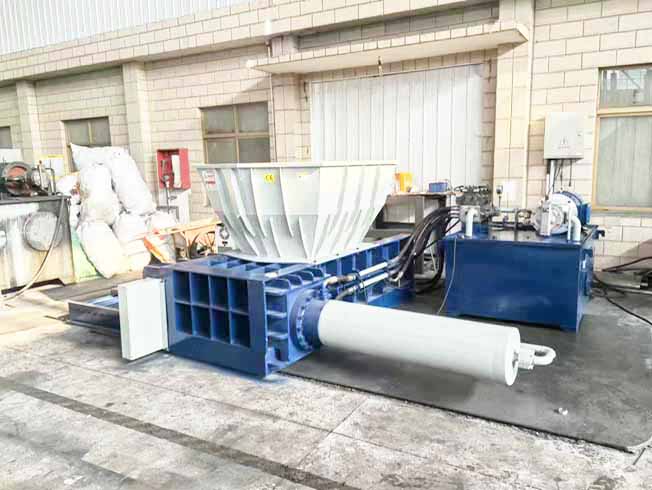

What Is an Aluminum Tin Scrap Compress Baler?

An aluminum tin scrap compress baler is a specialized hydraulic machine used in the recycling industry to compact loose aluminum and tin scrap—such as used beverage cans (UBCs), aluminum profiles, foil, and thin steel—into dense, regular-shaped bales . This process significantly reduces the volume of the material, making it easier to store, transport, and feed into melting furnaces.

The compression ratio can range from 4:1 to as high as 10:1, meaning a large volume of loose cans is reduced to a fraction of its original size . The resulting bales typically have a density between 600 to 700 kg/m³ for aluminum, which is the industry standard for efficient transportation and melting .

How It Works: Key Mechanisms

While designs vary by manufacturer, most aluminum can balers share a common operating principle based on hydraulic compression. Here are some key mechanisms found in modern machines:

Hydraulic Compression System: The core of the machine is a powerful hydraulic system that applies high pressure—often ranging from 100 to 315 tons or more—to compress the scrap . The force is delivered through hydraulic cylinders, which push a compression ram against the material inside a baling chamber.

Feeding Mechanisms: There are two common feeding methods. Hopper or funnel-type balers allow for continuous or semi-continuous feeding, where scrap is dropped into a large hopper that feeds into the compression chamber . Lid-type balers use a top-loading chamber where material is loaded, then compressed by a lid cylinder before the main compression cycle begins .

Shearing Integration: Many balers designed for metal scrap are equipped with integrated shearing blades. This allows the machine to cut oversized or tangled materials—such as long wires, steel springs, or large aluminum profiles—during the compression cycle, preventing jams and ensuring uniform bales .

Advanced Control Systems: Most industrial balers now feature Programmable Logic Controller (PLC) systems with touch-screen interfaces, often from brands like Siemens or Schneider . These systems allow for fully automatic operation, real-time monitoring, and diagnostic alerts to minimize downtime.

Dual and Triple Compression: To achieve the highest possible density, some balers employ multi-stage compression. For example, a machine may use one cylinder for pre-compression, another for main compression, and a third for final bale shaping, all in a single cycle .

Types and Examples of Machines

Aluminum tin scrap balers come in various sizes and configurations to suit different operational scales. Here are examples from different manufacturers:

ENERPAT AMB-L2014-315

This is a large-scale horizontal baler designed for high-volume operations. It features a 315-ton hydraulic force and can process over 15 tons per hour of aluminum cans and light iron scrap . It uses a patented door-cover structure and integrated shear system to handle challenging materials like long steel turnings. A key benefit is its efficiency—it can bale a full truckload of aluminum cans in about 60 minutes .

Starshine Funnel-Type Metal Baler

This machine features a funnel-shaped feeding structure specifically designed for loose, lightweight, and easily tangled materials like long aluminum coils or fine copper scrap . The design improves feeding efficiency by 30-50% compared to traditional horizontal models. It uses a compact body that occupies only 5-8 square meters, making it suitable for smaller sites or workshop corners .

CMS Series Baler (e.g., CMS160)

Representing a mid-range option, models like the CMS160 offer a 160-ton force and produce bales around 350x350mm weighing 18-30 kg . They operate with a 37 kW motor and achieve a density of 700 kg/m³. These machines typically offer both automatic PLC control and manual control for easy debugging and maintenance .

Key Benefits of Using a Baler

Investing in an aluminum tin scrap compress baler provides several operational and financial advantages :

Space Optimization: By compressing loose cans into dense bales, storage space is reduced by up to 80% or more, freeing up valuable floor space .

Cost Savings: Baled scrap occupies less volume, meaning fewer truckloads are required for transportation. This can lower freight costs by 30-60% . Additionally, high-density bales often command a 5-15% premium in the scrap market compared to loose or loosely baled material .

Improved Recycling Efficiency: Dense, uniform bales are easier to handle and can be fed directly into melting furnaces, optimizing the melting process and reducing energy consumption .

Reduced Environmental Impact: Lower transportation needs and improved logistics efficiency contribute to a smaller carbon footprint for the recycling operation .

Streamlined Operations: Modern balers with automatic controls reduce manual labor requirements. A single operator can often monitor the machine, freeing up staff for other tasks .

Installation and Maintenance Considerations

Proper installation and regular maintenance are essential for safe and efficient operation :

Installation: The machine requires a dedicated space with appropriate electrical and hydraulic connections. Some larger models may require a reinforced concrete foundation, while compact units can be placed on a standard workshop floor . Manufacturer guidelines should always be followed.

Maintenance: Routine checks should include inspecting hydraulic fluid levels and quality, lubricating moving parts, checking wear plates (often made of durable materials like NM450 or HARDOX steel), and ensuring electrical connections are secure .

Safety: Operators must receive proper training. Safety protocols should be implemented to prevent accidents, and regular inspections should be conducted to identify potential hazards. Machines typically feature emergency stop buttons and safety interlocks
