Here is a comprehensive overview of Vertical Briquetting Press Machines for Brass Chips, covering their purpose, how they work, key features, benefits, and considerations.

1. What is it?

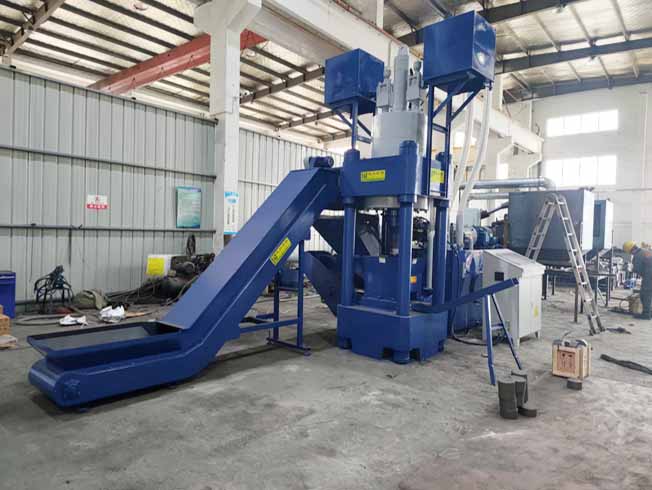

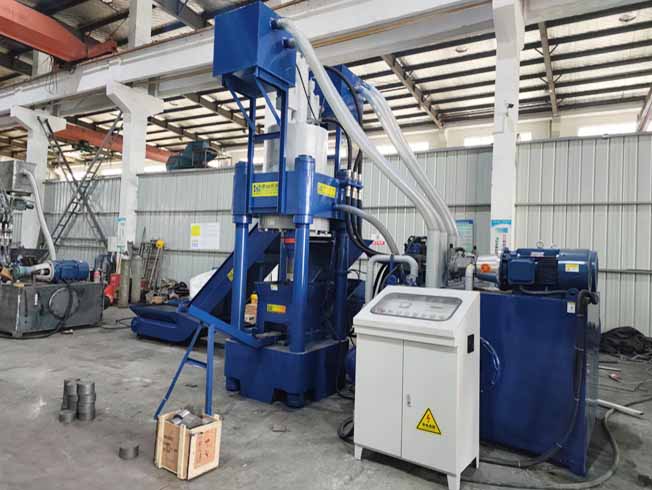

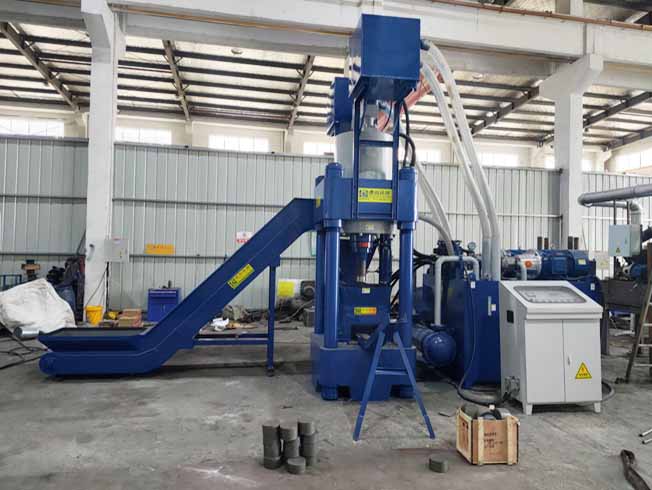

A vertical briquetting press is a hydraulic machine that compresses loose, often oily metal chips, turnings, and swarf (specifically brass in this case) into solid, dense, dry blocks called "briquettes." The vertical design refers to the orientation of the main hydraulic cylinder, which applies pressure from the top down.

2. Why Briquetting Brass Chips is Essential

Volume Reduction: Loose chips can take up 10-15 times more space. Briquetting reduces volume by up to 90%, drastically cutting storage and hauling costs.

Value Recovery: Briquettes are a clean, high-density feedstock for foundries and smelters. They command a significantly higher price per ton compared to loose, oily chips—often close to the price of clean scrap.

Coolant/Oil Recovery: The intense pressure (typically 250-450 bar) squeezes out up to 95% of the cutting fluids (oil or coolant). This fluid can be collected, filtered, and reused, saving money and reducing hazardous waste.

Clean & Safe Handling: Briquettes are dry, stackable, and easy to handle. They eliminate the mess, slip hazards, and fire risks associated with piles of oily chips.

Environmental Benefits: Reduces the waste stream, promotes recycling, and minimizes the carbon footprint associated with transporting air.

3. How a Vertical Briquetting Press Works (Process)

Feeding: Brass chips are fed manually or via a conveyor/auger system into the pressing chamber (a steel mold or "die").

Pre-compaction (Optional): Some models have a pre-compaction cylinder to pre-compress the material for a larger initial charge.

Main Compaction: The powerful main hydraulic cylinder descends, applying extreme pressure (e.g., 100-300 tons force). This forces the chips to interlock and deform, releasing trapped fluids.

Ejection: After reaching the preset pressure or position, the cylinder retracts. A separate ejector cylinder at the bottom pushes the finished briquette up and out of the chamber.

Cycle Repeat: The machine is ready for the next cycle, which is fully automated and controlled by a PLC.

4. Key Features & Specifications for Brass Chips

High Pressure: Essential for non-ferrous metals like brass. Look for systems capable of 250 to 450 bar.

Cylinder Force: Ranges from 60 tons (for smaller shops) to 300+ tons (for high-volume producers).

Briquette Size/Weight: Common briquette diameters are 80mm to 180mm. Weight can range from 0.5kg to 5kg each.

Cycle Time: Typically between 30 to 60 seconds, depending on size and material.

Motor Power: Typically from 15 kW to 45 kW.

Material-Specific Design: The die geometry and pressure profile are optimized for the plasticity and density of brass alloys.

PLC Control: For automated, consistent cycles with diagnostics and pressure monitoring.

Oil Recovery System: Includes a drip tray, oil collection tank, and often a filtration unit.

5. Advantages of Vertical vs. Horizontal Presses for Brass

Smaller Footprint: Vertical presses take up less floor space, ideal for workshops with space constraints.

Easier Maintenance: Major components like the main cylinder are more accessible from above.

Gravity-Assisted Feeding: Chips can fall directly into the die, simplifying the feed system.

Good for Medium Volumes: Often the preferred choice for machine shops and small-to-medium foundries.

6. Important Considerations When Choosing a Machine

Chip Volume & Type: Estimate your daily/weekly volume of brass chips (in kg or cubic meters). Are they long, stringy turnings or fine, granular chips?

Moisture/Oil Content: Know the type and percentage of cutting fluid used. This determines the required pressure and oil recovery efficiency.

Desired Briquette Density: Higher density briquettes are better for recycling. Discuss your target density with the manufacturer.

Automation Level: Decide if you need a fully automated system with conveyors and hoppers, or a manual-feed machine.

Manufacturer Reputation & Support: Look for manufacturers with experience in non-ferrous metals, particularly brass. Good after-sales service and spare parts availability are critical.

7. Typical Applications

Brass valve and fitting manufacturers

CNC machining centers specializing in brass parts

Brass forging and extrusion industries

Metal recycling yards handling non-ferrous scrap

Popular Manufacturers/Brands

RUF (Germany/USA),PRAB (USA),ANDRITZ MeWa (Germany),EcoBriq / Briquetting Systems Inc. (USA),Hunkeler Systeme,AG (Switzerland)

Several reputable Chinese and Indian manufacturers (often offering more budget-friendly options).

Conclusion:
Investing in a vertical briquetting press for brass chips is a smart operational and financial decision for any business generating significant brass swarf. It transforms a costly, messy waste product into a compact, valuable commodity, with a typical payback period of 1 to 2 years based on scrap value recovery and waste handling savings.

Always request a material test from the manufacturer using your actual brass chips to verify briquette quality, density, and oil recovery before purchasing.
