What It Is

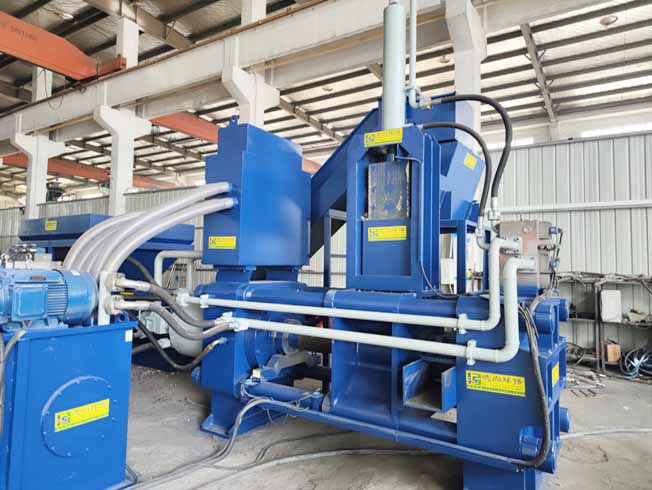

This is a machine designed to compress loose, often oily, metal chips, turnings, and borings (from machining operations like milling, turning, drilling) into dense, dry, solid blocks called "briquettes" or "pucks."

Heavy-Duty: Built for continuous industrial use, handling large volumes with high pressure (typically 200 to 500+ tons of force). Constructed from robust materials to withstand harsh environments.

Automatic: Features a programmable logic controller (PLC) for a fully automated cycle: feed, compression, ejection, and reset. May include auto-loading systems.

Hydraulic: Uses a high-pressure hydraulic system (pump, cylinders, valves) to generate the immense, controllable force needed to compact the metal.

Scrap Metal Chip: Its primary feedstock is low-density metallic waste from machining processes, often mixed with cutting oils or coolants.

Briquetting: The core process of densification into a compact, manageable shape.

How It Works (The Process)

Collection & Feeding: Metal chips are conveyed (often by a drag conveyor or auger) from collection points (like hoppers under machine tools) into the main compression chamber of the briquetting machine.

Compression Chamber Filling: A pre-measured volume of chips is fed into the chamber.

The Main Squeeze: The hydraulic ram advances with extreme force, compressing the chips. This force:

Densifies: Reduces volume by up to 90% (e.g., from a loose pile to a solid 10-12 inch diameter puck).

Extracts Liquids: Squeezes out up to 95% of the trapped cutting oils or coolants, which are collected for recycling or disposal.

Ejection: The ram retracts, and an ejection mechanism pushes the solid briquette out of the chamber.

Cycle Repeat: The process automatically repeats.

Key Advantages & Benefits

Massive Volume Reduction: The #1 benefit. Dramatically reduces the space needed for storage and the frequency of haulage. Cuts logistics and disposal costs.

Fluid Recovery: Recovers valuable cutting oils, improving fluid economics and reducing the hazardous waste stream. Briquettes are "dry" and handle cleanly.

Increased Scrap Value: Briquettes are a premium-grade scrap product. They are dense, low in moisture, and have a high metal-to-contaminant ratio. They fetch a significantly higher price per ton compared to loose, oily chips and are preferred by foundries and smelters.

Improved Safety & Housekeeping: Eliminates slippery, oily piles of sharp chips. Creates a cleaner, safer shop floor and reduces fire risk.

Environmental Compliance: Makes fluid management and scrap handling more controlled and compliant with environmental regulations.

Automation: Saves labor, ensures consistent output, and allows for integration into automated factory systems.

Typical Applications

Automotive Manufacturing: Engine plants, transmission shops.

Aerospace Manufacturing: Machining of aluminum, titanium, and alloy steels.

Bearings & Gears Manufacturing: High-volume steel and cast iron chip generation.

Job Shops & Contract Machinists: Any facility producing large quantities of metal turnings.

Common Briquette Shapes & Sizes

Pucks/Disks: Most common (e.g., 10" diameter x 2-3" thick).

Blocks/Rectangles: For very large systems.

Egg-shaped or Coconut-shaped: Some specialized designs.

Weight can range from 5 to 25 lbs per briquette, depending on the machine and material.

Popular Manufacturers/Brands

RUF (German, a leader in the field),PRAB (USA),NESTRO (Germany),Sweed (USA),Briquetting Systems Inc. (BSI) (USA),JMC Recycling Systems (UK)

Considerations When Purchasing/Using One

Chip Type & Material: Different metals (steel, aluminum, brass, titanium) have different compression characteristics.

Throughput Capacity: Measured in lbs/hour or tons/shift.

Initial Oil Content: Determines fluid recovery system needs.

Floor Space & Power Requirements: These are large machines requiring significant plant services (hydraulic power, electrical, fluid collection).

Integration: How will chips be conveyed to it? Where will briquettes be stored?

In summary, this machine is a strategic investment for any serious metalworking operation. It turns a problematic waste stream (messy, costly to dispose of) into a clean, compact, and profitable commodity, while dramatically improving shop floor efficiency and environmental performance.
