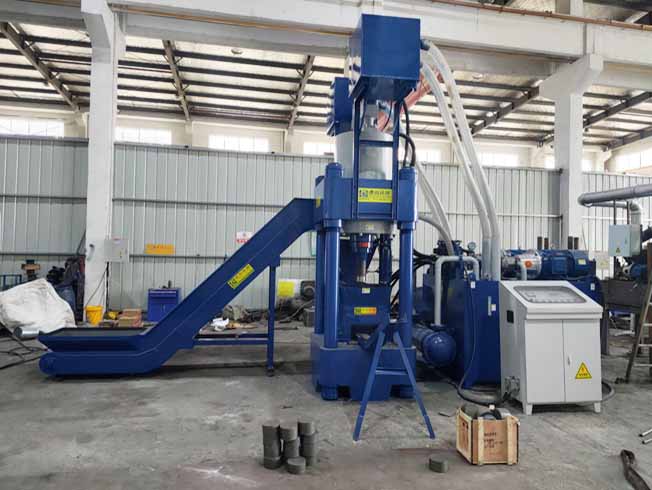

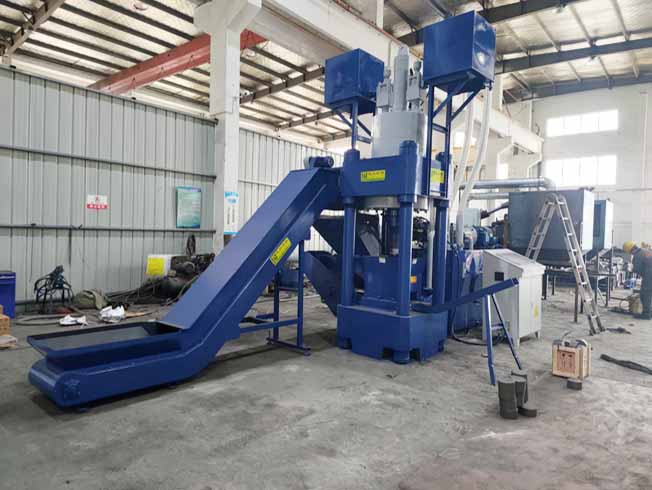

A Copper Turning Scrap Chips Briquette Pressing Machine is a specialized industrial equipment used to compress loose copper turnings, chips, or swarf generated during machining processes (such as milling, turning, or drilling) into dense, uniform briquettes. This process enhances the value and handling efficiency of recycled copper scrap.

Key Features & Functions:

1. High-Pressure Compression:

- Uses hydraulic pressure (typically 10–50 tons or more) to compact copper chips into solid briquettes.Achieves high density (up to 7–8 g/cm³), reducing volume by up to 80%.

2. Automatic Operation:

- Fully automatic cycle: loading → pressing → ejection → ready for next cycle.Often includes PLC control for monitoring and safety.

3. Customizable Briquette Size:

- Common shapes: cylindrical, rectangular, or square.Standard sizes: e.g., 100mm × 100mm × 150mm or custom dimensions based on customer needs.

4. No Binders Required:

- Copper chips are compressed using pressure alone—no chemical binders or adhesives needed.Ensures pure copper content ideal for smelting and recycling.

5. Material Compatibility:

- Designed specifically for copper, but some models can handle brass, aluminum, or mixed non-ferrous metals with adjustments.

6. Energy Efficient & Eco-Friendly:

- Reduces transportation costs due to volume reduction.Minimizes waste and supports circular economy practices.

7. Safety & Durability:

- Heavy-duty steel frame with wear-resistant parts.Safety guards, emergency stop, and overload protection.

Benefits of Using a Copper Chip Briquette Press:

| Benefit | Description |

| Higher Melting Value | Dense briquettes fetch better prices in scrap markets. |

| Easier Handling & Storage | Compact size reduces warehouse space needs. |

| Faster Smelting | Uniform briquettes melt faster and more efficiently in furnaces. |

| Reduced Contamination | Clean compression keeps out dirt and coolant residues. |

| Lower Transport Costs | Fewer trips needed due to reduced volume. |

Typical Applications:

- CNC machining shops.Automotive manufacturing plants.Aerospace component makers.Metal fabrication and recycling centers

Common Specifications (Example):

| Parameter | Specification |

| Capacity | 50–300 kg/hour |

| Press Force | 15–50 tons |

| Briquette Size | 100×100×150 mm (customizable) |

| Power Supply | 3-phase 380V / 50Hz |

| Motor Power | 5.5–11 kW |

| Control System | PLC + HMI touch screen |

| Material | High-strength alloy steel construction |

Why Choose This Machine?

If you're dealing with large volumes of copper turnings, this machine transforms low-value, bulky scrap into high-purity, high-density briquettes — boosting profitability and sustainability.
