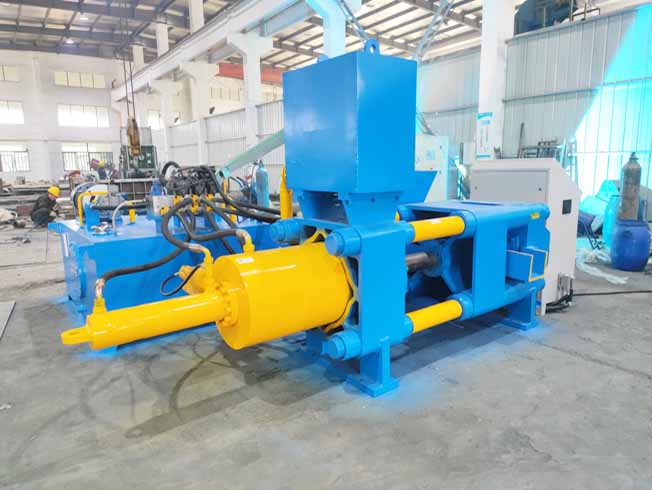

What is a Hydraulic Chip Metal Compactor?

It's a machine that uses high-pressure hydraulic force to compress loose, often oily, metal chips (swarf) and turnings into dense, dry briquettes (pucks or logs). This process simultaneously recovers valuable cutting fluid (coolant or oil) and reduces the volume of the scrap.

How It Works (The Process)

Loading: Loose chips are fed into a large charging chamber, either manually, by conveyor, or automatically.

Compaction: A powerful hydraulic ram exerts extreme pressure (often measured in tons of force) on the chips, squeezing them against a fixed head.

Liquid Extraction: The pressure forces the trapped cutting fluids out of the chips. These fluids are drained, filtered, and can often be recycled back into the machining process.

Ejection: The solid, compacted briquette (typically 60-80% the density of the solid metal) is ejected from the chamber.

Cycle Repeat: The cycle restarts. Modern systems are fully automated.

Key Components

Heavy-Duty Steel Frame: Withstands high cyclic pressures.

Hydraulic Power Unit: Provides the high-pressure force via cylinders.

Compaction Chamber: Where the chips are loaded and pressed.

Ram / Platen: The moving face that applies the pressure.

Fluid Collection & Filtration System: Captures and cleans extracted coolants/oils.

Control System: Often a PLC for automated operation and monitoring.

Primary Benefits & Why Companies Use Them

Recover Cutting Fluids: Saves up to 90% of the coolant/oil, drastically reducing purchasing and disposal costs. This is often the #1 financial justification.

Reduce Scrap Volume: Can achieve a 10:1 volume reduction (e.g., 10 full chip tubs become 1 briquette tub). This saves on:

Transportation Costs: Fewer hauls for scrap dealers.

Floor Space: Less in-plant storage needed.

Handling Labor & Safety: Fewer trips moving loose, sharp, and slippery chips.

Increase Scrap Value: Briquettes are "cleaner" (lower moisture and oil content) and more dense. Scrap yards pay a premium (often 10-40% more) per ton compared to loose, wet chips because they are more efficient to melt.

Environmental & Safety Improvements:

Eliminates leaks and spills from wet chip handling.

Creates a cleaner, safer shop floor.

Reduces the facility's hazardous waste stream (oily chips).

Promotes recycling (fluid and metal).

Applications & Industries

High-Volume Machining: Automotive, aerospace, bearing manufacturing, job shops.

Any operation using CNC mills, lathes, or screw machines that generate large amounts of chips.

Materials: Steel, cast iron, aluminum, brass, copper, and high-temperature alloys. (Note: Some materials like stainless steel may require specialized or more powerful compactors).

Key Considerations When Selecting a Machine

Chip Type & Material: Long, stringy "birds nest" turnings vs. small chips. This affects chamber design and required force.

Throughput Required: Measured in lbs/kg or cubic yards per hour. Match the machine to your daily chip generation.

Hydraulic Pressure (Tonnage): Higher tonnage (e.g., 50-ton, 100-ton, 200-ton) handles tougher materials and achieves higher density.

Briquette Size & Shape: Round pucks, rectangular blocks, or logs.

Fluid Recovery Rate: The efficiency of the fluid extraction system.

Automation Level: Manual lid, semi-automatic, or fully automatic with integrated conveyors.

Footprint & Power Requirements: Does it fit in your available space?

Leading Manufacturers (for reference)

PRAB: A major global player with a wide range of compactors and chip processing systems.

Mayfran International: Well-known for conveyor systems and chip processing equipment.

Nederman: Focuses on industrial environmental solutions, including chip management.

Jorgensen Conveyors: Offers heavy-duty briquetters and systems.

RUF GmbH & Co. KG: A leading specialist in briquetting systems.

Others: Metso, Lanner, Anode, and many regional manufacturers.

Alternative: Centrifugal Chip Wringer

For operations primarily focused on drying chips (not volume reduction), a centrifugal chip wringer (spinner) is another option. It spins chips at high speed to remove fluid but doesn't create a dense briquette.

In summary, a Hydraulic Chip Metal Compactor is a smart investment for any serious metalworking operation. It transforms a waste stream (wet, messy chips) into a source of revenue (dry, dense briquettes and recovered coolant), pays for itself through savings and increased scrap value, and improves the overall shop environment.
