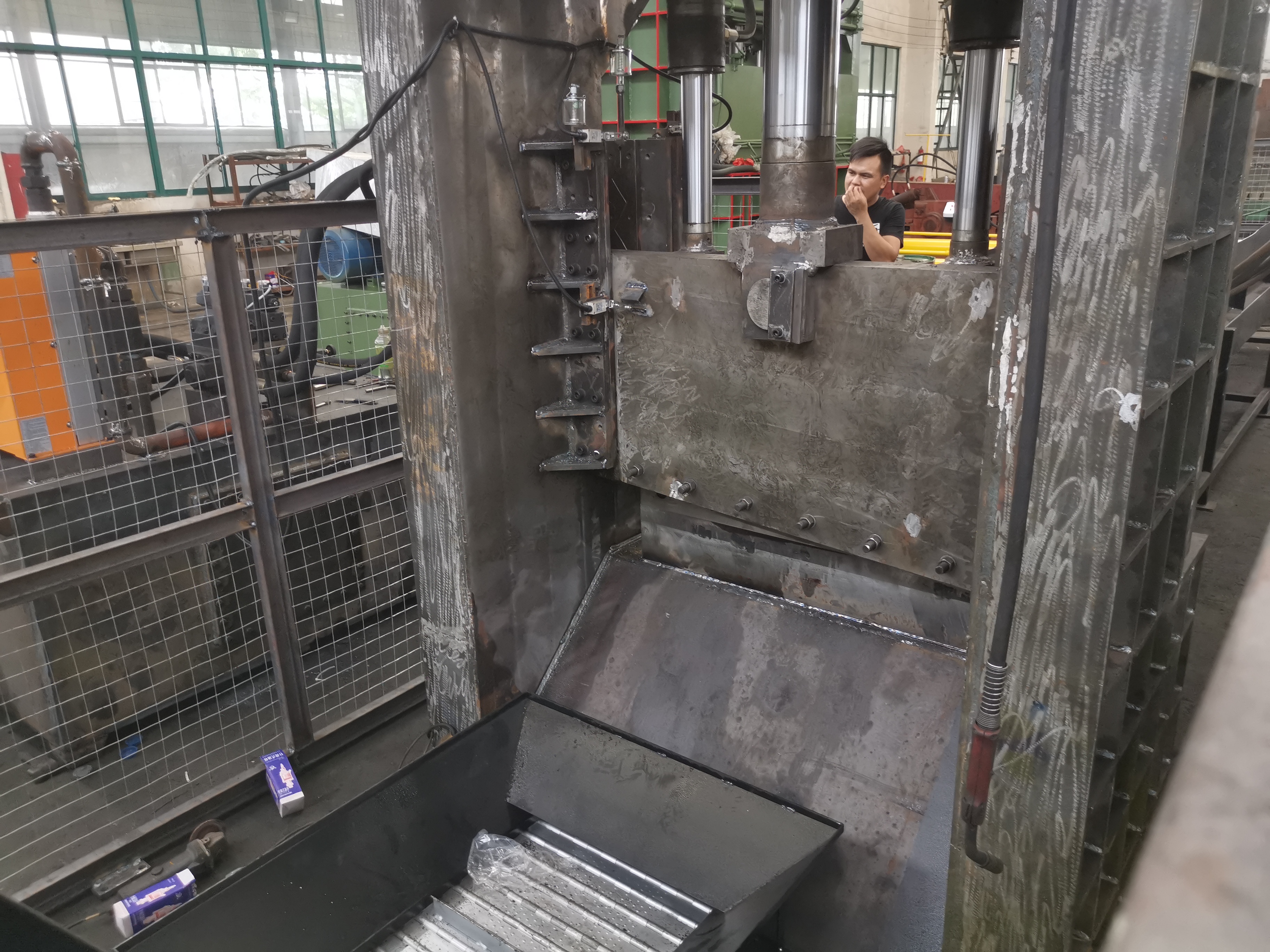

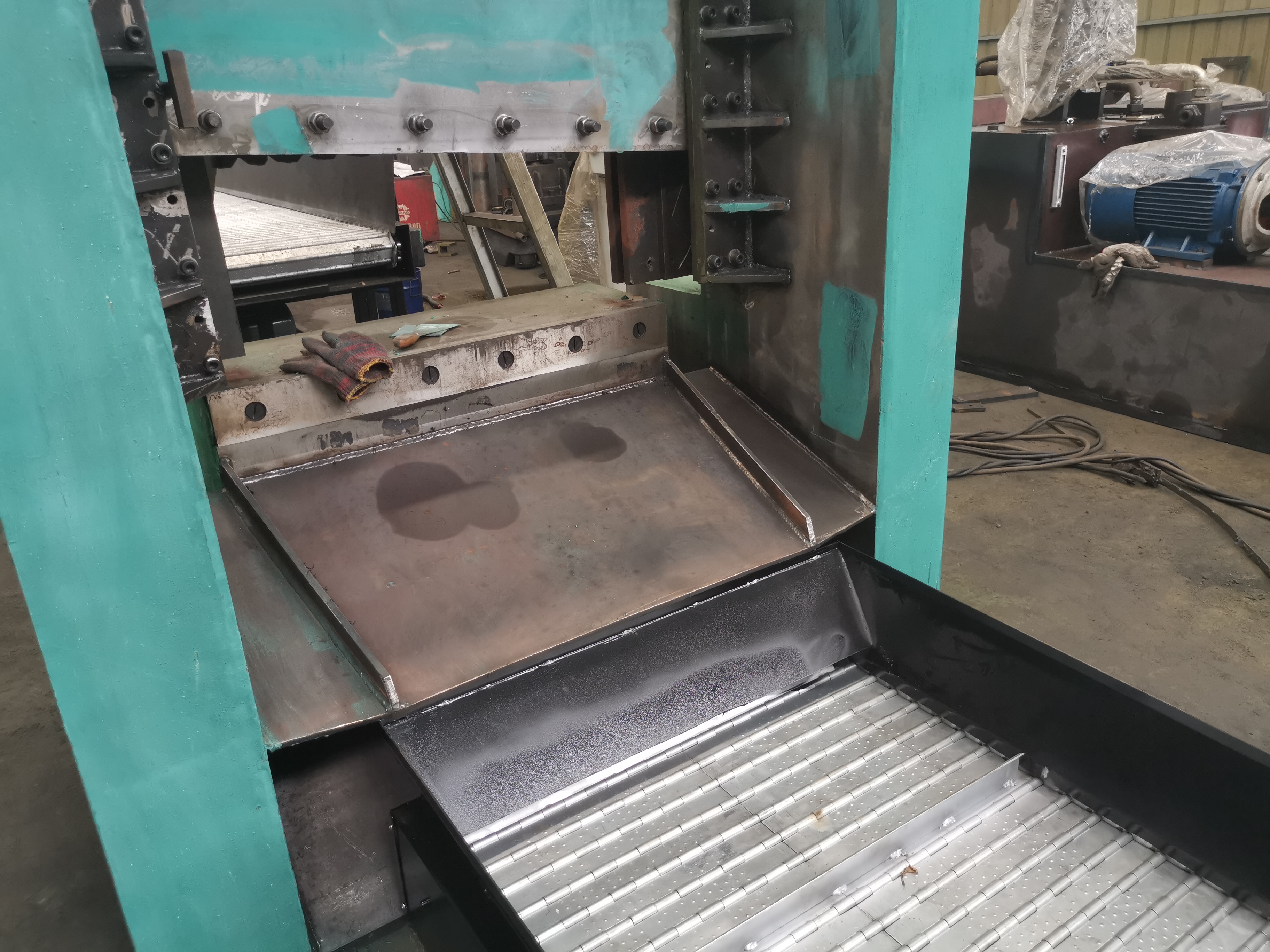

Hydraulic Metal Scrap Vertical Shears are heavy-duty industrial machines designed to cut and shred metal scrap into smaller, manageable pieces. They are widely used in recycling facilities, scrapyards, metal processing plants, and manufacturing industries for efficient material handling and preparation.

Key Features of Hydraulic Metal Scrap Vertical Shears:

1. Vertical Design:

- The shearing mechanism operates vertically, allowing gravity to assist in feeding scrap material into the cutting chamber,Enables efficient handling of large or irregularly shaped metal waste (e.g., I-beams, pipes, sheets, auto frames).

2. Hydraulic Power System:

- High-pressure hydraulic cylinders provide powerful, consistent cutting force (often ranging from 50 to 300+ tons),Smooth operation with minimal operator effort and high reliability.

3. Heavy-Duty Construction:

- Made from forged steel and wear-resistant materials,Reinforced frame and cutting blades withstand continuous operation and tough materials.

4. Adjustable Cutting Gap & Blade Settings:

- Allows customization based on material thickness and desired output size,Blades can be adjusted or replaced easily for maintenance.

5. Safety Features:

- Emergency stop buttons,Interlock systems preventing operation when guards are open,Safety light curtains or sensors (in advanced models),Anti-rebound mechanisms.

6. High Throughput Capacity:

- Processes large volumes of scrap quickly, improving recycling efficiency and reducing downtime.

7. Optional Automation:

- Some models include automated feeding systems (conveyor belts, grab buckets) or PLC controls for semi-automated operation.

8. Blade Types:

- Fixed blades: For consistent cutting; ideal for uniform scrap,Adjustable or movable blades: For variable material thicknesses,Tungsten carbide-tipped blades: For extended life when cutting hard or abrasive metals.

Typical Applications:

- Recycling of automotive shredder residue (ASR),Processing steel beams, structural profiles, and rebar,Shredding aluminum, copper, and other non-ferrous metals,Pre-processing scrap before melting or baling,Reducing volume of bulky metal waste for easier transport

Technical Specifications (General Range):

| Feature | Typical Range |

| Cutting Capacity | 10–300 tons (safety-rated) |

| Max Material Thickness | 10 mm – 100 mm (depending on model) |

| Blade Length | 1.2 m – 3.0 m |

| Feed Height | 1.5 m – 3.0 m |

| Motor Power | 30 kW – 150 kW |

| Hydraulic Pressure | 200–350 bar |

| Control System | Manual / PLC / Touchscreen HMI |

Benefits:

- Increases scrap value by producing uniform, marketable fragments,Reduces transportation costs due to volume reduction,Improves safety compared to manual cutting,Enhances productivity and workflow efficiency,Supports circular economy goals by enabling effective metal recycling.

Maintenance Tips:

- Regularly inspect and lubricate hydraulic components,Check blade alignment and wear; replace as needed,Clean debris from the cutting chamber after each use,Monitor hydraulic fluid levels and filter condition,Conduct routine safety system checks.

Consider:

- Type and size of scrap material,Desired output size,Throughput requirements (tons/hour),Available space and installation environment,Budget and long-term ROI

If you’re looking to purchase, customize, or maintain a hydraulic vertical shear, it’s best to consult with an experienced supplier or engineer who can match the machine to your specific needs.

Let me know if you’d like:

- A comparison chart of top models,Supplier recommendations by region,Technical drawings or CAD specs,Help calculating throughput needs
