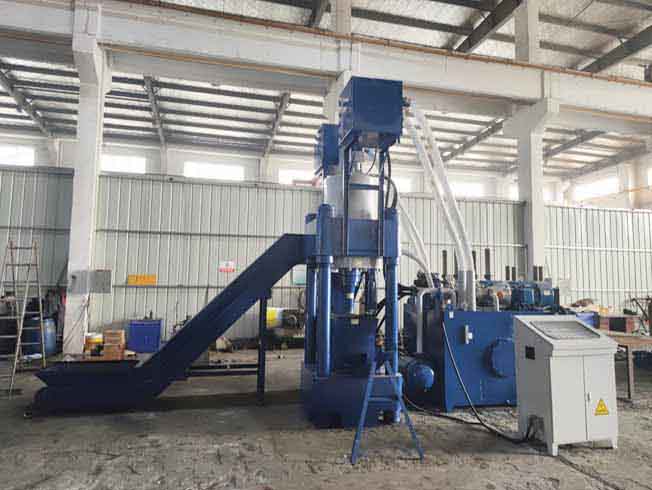

A Waste Iron Chip Block Making Machine is a specialized industrial equipment designed to compress and compact waste iron chips, turnings, or metal scrap into dense, manageable blocks (also known as "iron briquettes" or "metal pellets"). This process enhances recycling efficiency, reduces transportation costs, improves storage, and increases the value of scrap metal for reprocessing in steel mills or foundries.

Key Features of a Waste Iron Chip Block Making Machine:

1. High-Pressure Compression:

- Uses hydraulic pressure (typically 10–50 MPa) to compress loose iron chips into solid blocks.Ensures high density and structural integrity.

2. Automatic Feeding System:

- Often includes a hopper and conveyor system to feed iron chips continuously into the press.

3. Hydraulic Drive System:

- Provides consistent and powerful compression force.Offers safety features like overload protection and pressure regulation.

4. Die & Punch Assembly:

- Customizable molds (cylindrical, rectangular, etc.) to produce blocks of specific size and shape.Made from wear-resistant materials (e.g., hardened steel or tungsten carbide).

5. Low or No Binders Required:

- Some machines use natural compaction under pressure; others may use minimal binders (like bentonite or resin) if needed for better cohesion.

6. Compact & Efficient Design:

- Space-saving layout ideal for workshops, scrapyards, or on-site recycling operations.

7. Control Panel with PLC/Touchscreen Interface:

- Allows monitoring of cycle time, pressure, block weight, and machine status.

8. Safety Features:

- Emergency stop buttons, protective guards, and interlocks to prevent accidents.

Typical Output:

- Block dimensions: 100–300 mm long × 80–150 mm diameter (customizable).Weight per block: 10–50 kg (depending on design).Density: Up to 6–7 g/cm³ (close to solid iron).

Benefits of Using a Waste Iron Chip Block Making Machine:

| Benefit | Description |

| Higher Recycling Value | Dense blocks are preferred by steel mills and fetch higher prices than loose scrap. |

| Reduced Transportation Cost | Smaller volume = fewer trips, lower fuel cost. |

| Improved Handling & Storage | Blocks are easier to stack, store, and load. |

| Environmental Impact | Reduces landfill use and supports circular economy. |

| Automation & Labor Savings | Minimizes manual labor and increases throughput. |

Applications:

- Automotive manufacturing plants.Metal machining shops (CNC, lathes, milling).Scrap yards and recycling centers.Foundries and steel reprocessing facilities

Common Types of Machines:

1. Single-Station Hydraulic Press: For small to medium-scale operations.

2. Multi-Station Automatic Briquetting Machines: High-capacity systems for large-volume production.

3. Mobile/Portable Units: Ideal for remote or temporary sites.

Tips for Optimal Performance:

- Ensure iron chips are clean (free from oil, coolant, dirt).Use dry chips whenever possible—moisture can reduce compaction quality.Regular maintenance of dies, hydraulic systems, and filters.Consider pre-drying or cleaning if chips are oily.

Where to Buy?

You can find these machines from manufacturers in:China (major suppliers – e.g., Shandong, Guangdong).India.Germany (high-end precision models).Turkey, Poland, USA

Platforms like Alibaba, Made-in-China, or industry-specific trade shows are good sources.
