Working Principle, Application Scope and Advantages of Hydraulic Metal Balers

As the volume of scrap metal generated by manufacturing, construction, automotive dismantling and recycling industries continues to increase, efficient material handling has become increasingly important. Loose metal scrap occupies considerable space, is difficult to transport and can create safety and housekeeping problems.

A hydraulic metal baler compresses loose scrap into compact, uniform bales, helping recycling companies reduce material volume, simplify handling and improve overall operational efficiency. It is widely used in scrap yards, steel mills, foundries, metal-processing factories and recycling centers.

What Is a Hydraulic Metal Baler?

A hydraulic metal baler is an industrial recycling machine that uses hydraulic pressure to compress loose metal scrap into dense rectangular, cylindrical or customized bales.

Depending on its chamber design and discharge method, the equipment can process materials such as:Scrap steel and light iron.Aluminum sheets, cans and profiles.Copper wire and copper scrap.Brass scrap and machining waste.Stainless-steel offcuts.Metal.stampings and punching waste.Automotive body panels.Used appliances and light structural scrap.Paint cans, drums and other thin metal products

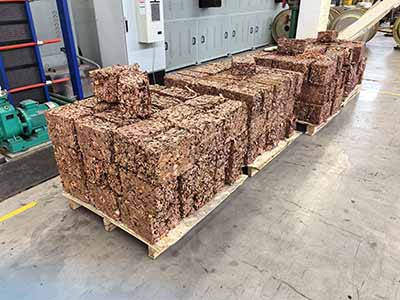

The finished bales are more convenient to store, load, transport and charge into melting furnaces. Bale dimensions, pressing force and production capacity can be selected according to the raw material and the customer’s recycling requirements.

Working Principle of a Hydraulic Metal Baler

A hydraulic metal baler operates through a coordinated process involving material feeding, hydraulic compression, bale formation and bale discharge.

1. Material Feeding

Loose metal scrap is loaded into the compression chamber manually or by conveyor, grab crane, forklift or other feeding equipment.

The amount of material loaded during each cycle should match the capacity of the chamber. Large or irregular scrap may require cutting or pre-processing before feeding.

2. Hydraulic Pressure Generation

After the chamber cover is closed, the hydraulic pump sends pressurized oil into the cylinders. The hydraulic cylinders convert the oil pressure into mechanical compression force.

The required pressure depends on the type, thickness and density of the scrap. Light aluminum generally requires a different pressure setting from heavy steel offcuts or structural scrap.

3. Multi-Directional Compression

Many metal balers use two-stage or three-stage compression.

The cover cylinder first presses the material downward. Side cylinders then compress the scrap horizontally, and the main compression cylinder completes the final bale-forming process. Multi-directional compression helps produce dense bales with consistent dimensions.

4. Pressure Holding and Bale Formation

When the material reaches the preset compression position, the hydraulic system maintains pressure for a short period. This allows the scrap to settle and helps the bale retain its shape after the chamber is opened.

The pressure-holding time can be adjusted according to the material characteristics.

5. Automatic or Manual Bale Discharge

After compression, the chamber opens and the completed bale is removed.

Common discharge methods include:Front push-out.Side push-out.Bale turn-out.Automatic conveyor discharge

Side push-out and front push-out systems are suitable for continuous production because they simplify bale removal and reduce manual handling.

6. PLC-Controlled Cycle

Modern hydraulic metal balers can be equipped with a PLC control system. Operators can set the compression sequence, pressure-holding time and discharge process through the control panel.

Sensors monitor the position of each cylinder and help ensure that every movement follows the correct sequence. This improves operating consistency, reduces labor requirements and provides additional protection against incorrect operation.

Application Scope of Hydraulic Metal Balers

Scrap-Metal Recycling Centers

Recycling centers handle different types of loose and irregular metal scrap. A baler reduces the volume of collected material and makes it easier to classify, stack and transport.

Compact bales also help recycling companies load more material into each truck or shipping container.

Steel Mills and Foundries

Steel mills and foundries can use metal balers to prepare scrap for furnace charging. Uniform bales are easier to handle with lifting equipment and can support a more controlled feeding process.

The final suitability of a bale for direct furnace charging should be confirmed according to the furnace type, material composition and production requirements.

Parameter or Description

Automotive Dismantling Facilities

Vehicle dismantling generates body panels, doors, sheet metal, aluminum components and other bulky scrap. Hydraulic balers compress these materials into manageable packages, reducing the space required for temporary storage.

Metal-Processing Factories

Stamping, cutting, punching and fabrication operations produce offcuts and thin metal waste every day. Installing a baler near the production area can reduce internal material-handling requirements and keep the workplace cleaner.

Aluminum and Non-Ferrous Metal Plants

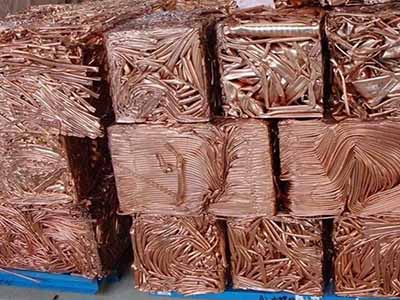

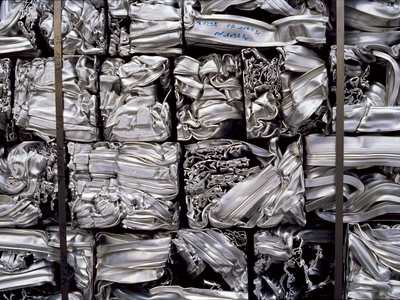

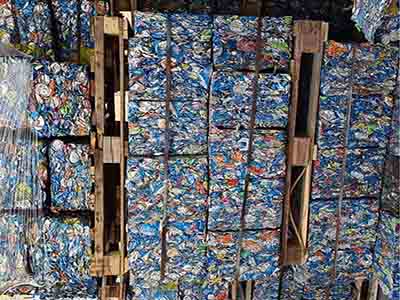

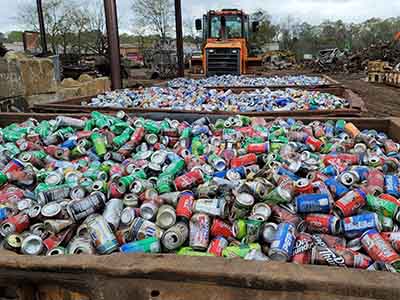

Aluminum sheets, profiles, cans, copper wires and brass offcuts are often light but bulky. Compressing them into bales makes material classification, weighing, storage and transportation more efficient.

Metal powders and small machining chips may require a dedicated briquetting press rather than a conventional baler. The correct equipment should be selected after evaluating the particle size, bulk density and moisture or oil content of the material.

Main Advantages of Hydraulic Metal Balers

Significant Volume Reduction

The primary advantage is the reduction of loose-scrap volume. Compact bales occupy less floor space and allow recycling companies to use their warehouses and outdoor storage areas more efficiently.

Lower Transportation Costs

Loose scrap contains large amounts of empty space. After baling, more material can generally be loaded into a truck or container, potentially reducing the number of transportation trips required.

Actual loading results depend on the material type, bale density, legal vehicle-weight limits and container dimensions.

Easier Handling and Storage

Uniform bales are easier to stack, weigh, label and move with forklifts or cranes. Organized storage also makes material inventory and classification more manageable.

Improved Workplace Safety

Loose metal may have sharp edges and can spread across production or storage areas. Compressing it into controlled packages helps reduce clutter and supports safer material handling.

Operators must still follow the machine manufacturer’s safety procedures and use appropriate personal protective equipment.

Improved Recycling Efficiency

Dense, uniform bales can simplify sorting, transportation and furnace feeding. This creates a more organized flow from scrap collection to final remelting.

Flexible Equipment Configuration

Hydraulic metal balers can be customized with different:Compression forces.Chamber dimensions.Bale sizes.Motor powers.Feeding methods.Bale-discharge systems.Cooling systems.Voltage and electrical standards.Manual or PLC automatic controls

This flexibility allows the machine to serve small recycling yards as well as large industrial processing facilities.

Customer Application Case

A metal-recycling company was processing loose aluminum profiles, thin aluminum sheets and mixed aluminum production scrap. Before installing a hydraulic metal baler, the material occupied a large outdoor storage area and required frequent truck collection.

The customer selected a side-push hydraulic baler configured for lightweight non-ferrous scrap. A grab crane was used to load material into the compression chamber, while the PLC system controlled compression and bale discharge.

After commissioning, the company was able to convert irregular scrap into consistent rectangular bales. The main operational improvements included:More organized storage of aluminum scrap.Easier forklift handling and truck loading.Less loose material scattered around the work area.More efficient use of available storage space.Reduced manual handling during bale removal.Better preparation of material for transportation and downstream recycling

The chamber size and bale dimensions were selected according to the customer’s raw material, forklift capacity and truck-loading requirements. Before manufacturing the equipment, the supplier reviewed scrap photographs, material dimensions, daily processing volume and the required discharge method.

This case demonstrates why machine configuration should be based on the customer’s actual material rather than on pressing force alone. Two customers processing the same weight of scrap may require different chamber sizes or compression structures if their material shapes and bulk densities are different.

Our Brand Advantages

Customized Equipment Selection

We evaluate the material type, scrap dimensions, bulk density, required capacity and preferred bale size before recommending a machine. This helps customers avoid selecting equipment that is too small, unnecessarily large or unsuitable for their material.

Strong Hydraulic System

Our machines use an industrial hydraulic design developed for stable pressure and continuous recycling operations. Key components can be selected according to the customer’s operating environment, working hours and local maintenance requirements.

Durable Machine Structure

The compression chamber and main frame are manufactured for heavy-duty use. Reinforced structures and wear-resistant components can be applied in high-contact areas to extend service life when processing abrasive or irregular scrap.

PLC Automatic Control

Optional PLC control provides a clear operating sequence and convenient parameter adjustment. Automatic compression and bale discharge reduce repetitive manual work and help maintain consistent production.

Multiple Discharge Options

We provide side push-out, front push-out and bale turn-out configurations. The most suitable method is selected according to the factory layout, handling equipment and desired level of automation.

Support for International Projects

Voltage, motor frequency, electrical components, control language and safety configuration can be adapted to the destination market. We can also provide equipment drawings, operating manuals, installation guidance and remote technical support.

Material Testing and Technical Confirmation

When necessary, customers can provide scrap samples, photographs or videos for technical evaluation. Material testing helps confirm the appropriate chamber design, pressing force and expected bale-forming performance before production.

Complete Recycling Solutions

In addition to standalone hydraulic balers, we can provide supporting equipment such as conveyors, feeding systems, grab cranes and customized discharge systems. This allows customers to build a more complete and efficient scrap-processing line.

How to Choose the Right Hydraulic Metal Baler

Before requesting a quotation, prepare the following information:Type and composition of the metal scrap.Maximum dimensions of the raw material.Required processing capacity per hour or per day.Desired bale dimensions and approximate bale weight.Available power supply.Daily operating hours.Preferred feeding and discharge methods.Factory space and equipment-layout limitations.Destination country and applicable safety requirements

Required level of automation

Photos or videos of the actual scrap are especially useful. They allow the manufacturer to evaluate the material shape and recommend a more accurate machine configuration.

Conclusion

Hydraulic metal balers provide an efficient solution for compressing loose scrap into compact, manageable bales. Through hydraulic compression and optional PLC automation, they can reduce material volume, simplify handling, improve storage organization and support more economical transportation.

The best machine is not determined by pressing force alone. Raw-material characteristics, chamber size, bale dimensions, capacity, factory layout and discharge method should all be considered.

With customized engineering, durable construction and comprehensive technical support, our hydraulic metal balers can be configured for different scrap-processing applications. Contact us with your material photos, required capacity and preferred bale size to receive a suitable machine recommendation and quotation.
