I. What is a hydraulic aluminum shavings press?

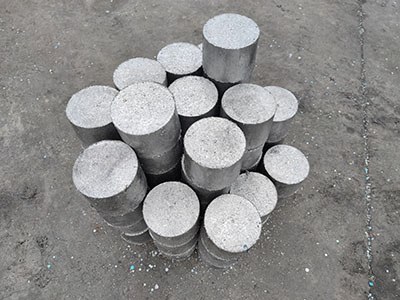

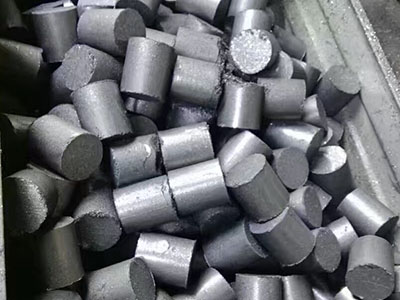

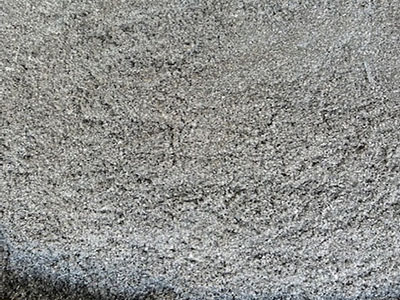

It is a machine that uses a hydraulic system to generate enormous pressure, compressing loose, fluffy aluminum shavings (or copper shavings, steel shavings, etc.) produced by lathes, milling machines, and CNC machining centers into high-density, regular block-shaped (cake-like) blocks. Its core purpose is to reduce volume, facilitate transportation, improve smelting efficiency, and recover valuable cutting fluid.

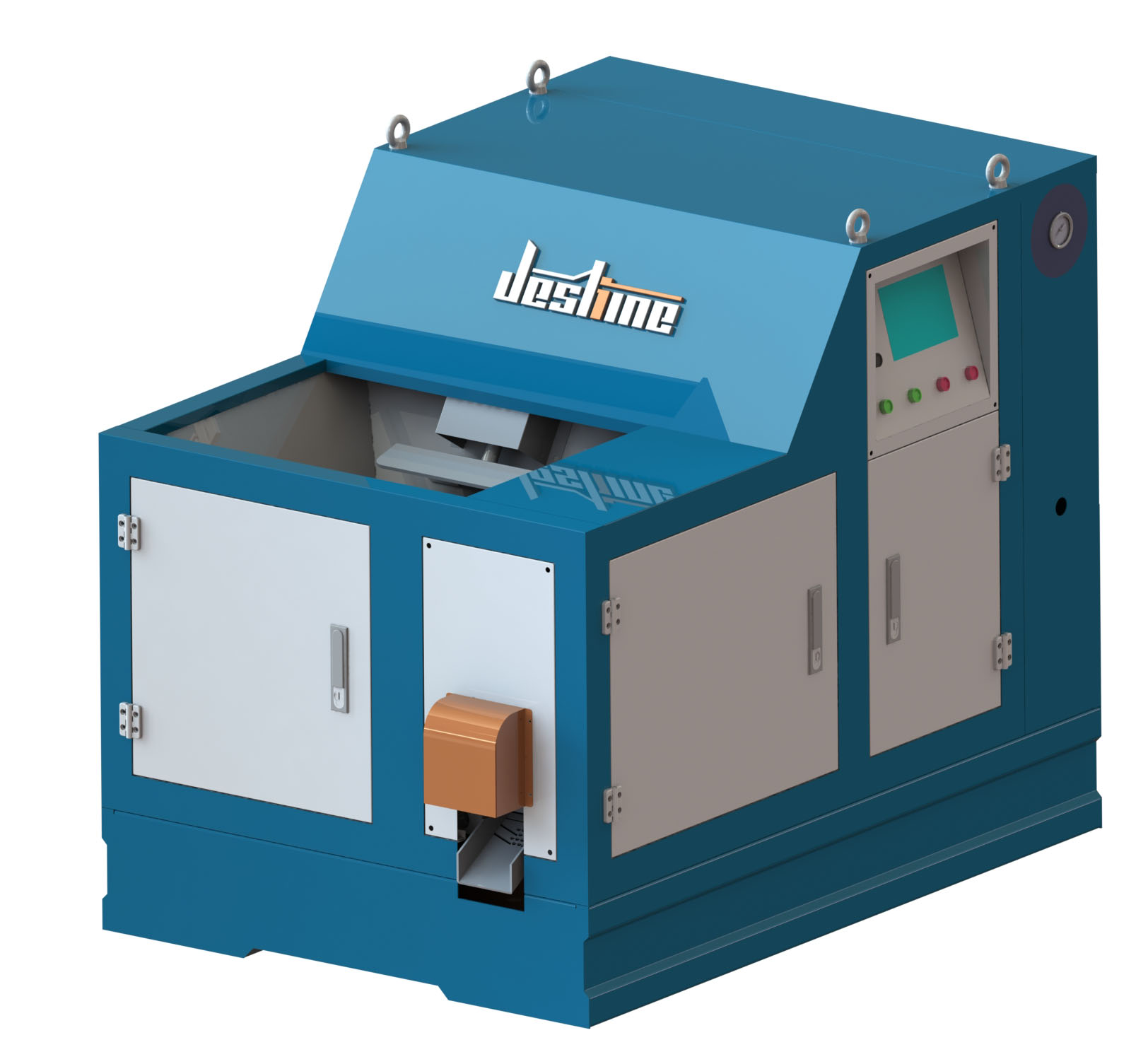

II. Main Structure and Working Principle

Structural Components:

Hydraulic System: The core power unit, including a motor, hydraulic pump, cylinders, control valves, and oil tank.

Pressure Head (Main Cylinder): Applyes the main downward pressure.

Compression Chamber (Hopper): The space that holds the aluminum shavings to be compressed.

Die/Discharge Port: Determines the shape (cylindrical, square, etc.) and size of the compressed cake.

Side Cylinder/Pusher Cylinder (Optional): Used to push out the compressed cake.

Frame: A robust steel structure that withstands enormous working pressure.

Electrical Control System: Controls the entire pressing cycle (automatic/manual).

Workflow:

Feeding: Aluminum shavings are poured into the compression chamber.

Pre-compression/Pressure Holding: The pressure head descends, initially compacting the loose aluminum shavings.

Main Pressure/Pressure Holding: The hydraulic system rises to the highest pressure (typically several hundred tons), compressing the aluminum shavings to the maximum, while simultaneously squeezing out the contained cutting fluid.

Pressure relief and return stroke: The pressure head rises and returns to its initial position.

Pattern ejection: The side cylinder actuates, ejecting the pressed aluminum pattern from the mold.

Cycle: Enters the next work cycle.

III. Core Advantages

Significant Volume Reduction: Volume reduction ratio can reach 3:1 to 5:1, greatly reducing storage space and transportation costs.

Increased Smelting Profitability:

High slab density results in less floating and oxidation losses after entering the furnace.

More uniform material distribution within the furnace leads to faster heating and reduces bridging.

Reduced energy consumption during smelting (burn-off can be reduced by approximately 5-15%).

Drying Fluid Recovery: During compression, most of the cutting fluid (oil or water-based) adhering to the aluminum chips is squeezed out and collected, enabling waste liquid recovery and providing additional environmental benefits.

Safety and Environmental Protection:

Reduces the fire risk of loose aluminum chips during storage and transportation (especially oily chips).

Prevents aluminum chip scattering, keeping the workshop clean.

Neat slabs facilitate stacking and management.

High Automation: Enables continuous automated operation, reducing labor intensity.

IV. Key Selection Parameters

The following points need to be considered when purchasing:

Pressure (tonns): Determines the final density of the slab. Common capacity options include 100 tons, 200 tons, 315 tons, and 500 tons. The larger the production volume and the higher the required density, the larger the tonnage needed.

Processing Capacity (kg/cycle): The weight of aluminum scrap that can be processed per pressing cycle.

Palm Size and Shape: Customized molds based on your needs (e.g., furnace feed inlet size).

Compression Chamber Size: Affects the single-batch feeding capacity and equipment footprint.

Automation Level: Manual, semi-automatic, fully automatic. Fully automatic equipment can be connected to conveyor belts and elevators.

Oil/Drainage System: An effective liquid collection device is configured based on the oil/water content of the aluminum scraps.

V. Application Scenarios

Aluminum Alloy Parts Manufacturing Enterprises: Machining workshops for automobiles, motorcycles, aerospace, 3C products, etc.

Aluminum Profile Production and Recycling Enterprises

Professional Metal Scrap Recycling Companies

VI. Usage and Maintenance Precautions

Pre-treatment: Long, coiled aluminum shavings are best crushed or shredded before pressing for better cake formation.

Mixing is Strictly Prohibited: Shavings of different metals (such as aluminum, iron, and copper) must be pressed separately to prevent contamination and maintain their recycling value.

Safe Operation: The equipment operates at extremely high pressure. Safety procedures must be strictly followed during operation and maintenance, and all safety devices must be in good working order.

Regular Maintenance:

Check the hydraulic oil level and quality, and change it regularly.

Keep the filter clean.

Check all hydraulic line joints for leaks.

Lubricate moving parts such as the slider and guide rails regularly.

VII. Development Trends

Higher Automation and Intelligence: Integrates material conveying, weighing, pressing, and bundling/packaging systems, and is equipped with Internet of Things (IoT) functionality for remote monitoring of operating status and production data.

Higher Pressure and Energy Efficiency: Optimizes the hydraulic system and structural design to improve efficiency while reducing energy consumption.

Multifunctionality: One machine can process various types and materials of shavings.

In summary, hydraulic aluminum chip presses are essential equipment for the metal processing industry to achieve "waste-to-treasure," reduce costs, increase efficiency, and promote green production. Investing in a suitable press can typically recoup costs within 1-2 years through savings in transportation costs, increased smelting recovery rates, and the value of recovered cutting fluid.
