Core Function & Principle

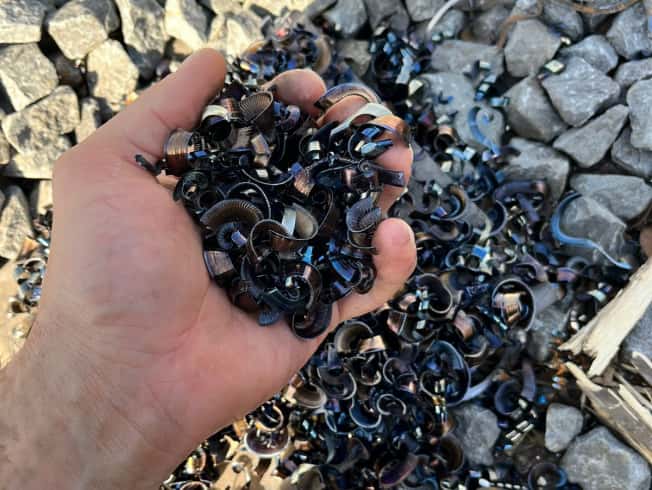

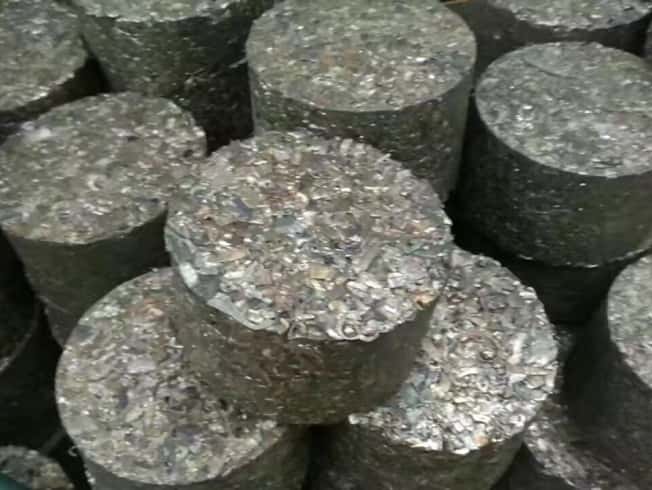

The Y83 press hydraulically compresses loose, messy metal chips (steel, cast iron, aluminum, brass, etc.), turning them into dense, dry "briquettes" or "cakes." This process simultaneously recovers valuable cutting fluid (coolant) and reduces the volume of scrap by 3x to 10x, depending on the material.

Key Components & How It Works

Hopper: Receives the loose chips, often loaded by a conveyor or manually.

Main Hydraulic Cylinder: Provides the primary pressing force (ranging from 63 tons to 1000+ tons in different models).

Mold / Compression Chamber: The area where chips are compressed into a specific briquette shape (usually cylindrical or rectangular).

Ejection Cylinder: Pushes the finished briquette out of the chamber.

Coolant/Oil Recovery System: The compressed chips release trapped cutting fluid, which is collected in a tank beneath the press for filtration and reuse.

Hydraulic Power Unit & Electrical Control Cabinet: Houses the pumps, valves, and PLC controls for automatic or semi-automatic operation.

Main Advantages & Benefits

Massive Volume Reduction: Drastically lowers storage space, handling costs, and freight expenses for scrap recycling.

Cutting Fluid Recovery: Recovers up to 95% of the trapped coolant, saving money and reducing hazardous waste disposal.

Increased Scrap Value: Briquettes are a "premium" scrap product. They are dense, low in moisture, and have a higher metal-to-contaminant ratio, fetching a better price from mills and foundries.

Cleaner & Safer Workshop: Eliminates piles of oily, slippery chips, improving workplace safety, hygiene, and housekeeping.

Environmental Compliance: Reduces the volume of oily waste, simplifying compliance with environmental regulations.

Fully Automatic Operation: Modern Y83 models feature PLC controls with automatic cycles for continuous feeding, pressing, and ejection.

Common Models in the Y83 Series

The series is typically defined by the maximum pressing force (in metric tons):

Y83-63: 63-ton force, for smaller workshops.

Y83-100: 100-ton force.

Y83-160: 160-ton force (a very common mid-range model).

Y83-200, Y83-315, Y83-400: Higher tonnage for large-volume operations and harder materials.

Y83-630, Y83-1000: Heavy-duty models for large-scale industrial use.

Typical Applications & Industries

Automotive Parts Manufacturing

Aerospace Machining Shops

Bearing & Gear Production

Metal Stamping and Forging

Any CNC machining facility generating significant volumes of turnings and chips.

Important Considerations Before Purchasing

Material Type: The required tonnage depends on the chip material. Aluminum chips compress easily (lower tonnage), while stainless steel or tough alloy chips require much higher pressure.

Volume/Capacity: Match the machine's cycle time and briquette size to your daily/weekly chip generation. Consider continuous feeding systems (conveyors) for high-volume setups.

Briquette Density & Size: Specify the desired density (which affects scrap value) and the physical briquette dimensions.

Coolant Type & Recovery Rate: Ensure the machine's filtration system is compatible with your specific coolant (synthetic, semi-synthetic, oil).

Automation Level: Decide between manual, semi-automatic, or fully automatic PLC-controlled systems with link conveyors.

Manufacturer & Support: The Y83 designation is common, but build quality, reliability, and after-sales service vary greatly between manufacturers (many are based in China). Look for established brands with good references.

Comparison to Alternatives

Centrifuges/Wringers: Only remove coolant; do not reduce volume significantly.

Shredders: Only crush long, stringy chips for easier handling; no volume reduction or coolant recovery.

Briquetting Presses (like Y83): The only solution that accomplishes volume reduction, coolant recovery, and scrap value increase in one step.

Conclusion

The Y83 Series Briquetting Press is a strategic investment for any metalworking facility looking to cut costs, improve cleanliness, and add value from what was once considered waste. Its ROI is often realized through a combination of saved disposal costs, recovered coolant, and increased scrap revenue.
