What is an aluminum scrap patty machine?

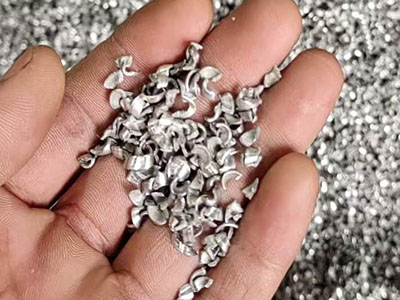

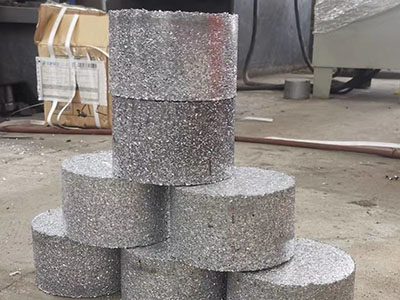

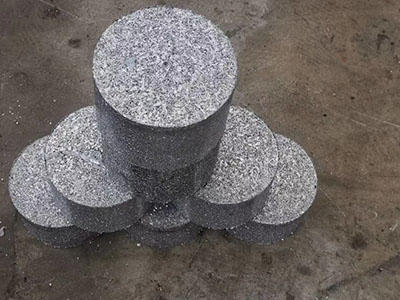

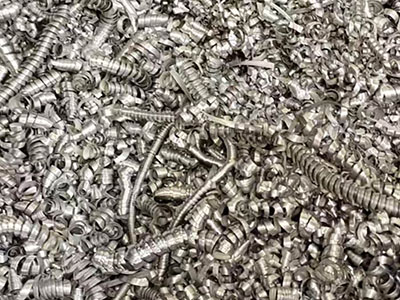

Aluminum chip briquetting machine, also known as aluminum chip baler or metal chip briquetting machine, is a machine used to compress loose, curled aluminum chips (or other metal chips) generated by lathes, milling machines, CNC machining centers, etc., into high-density briquettes (cylindrical or square) under high pressure.

Main Objectives and Benefits:

Reduced Volume and Cost Savings: Compresses aluminum shavings to 1/3 to 1/5 of their original volume, significantly reducing storage space and transportation frequency, and substantially lowering warehousing and logistics costs.

Easy Handling and Transportation: The compressed cakes are regular and compact, easy to handle and stack with forklifts, less prone to scattering, and transported safely and efficiently.

Increased Recycling Value:

Reduced Oxidation Loss: Loose aluminum shavings have a large surface area and are easily oxidized. Compressing reduces contact with air, lowering oxidation loss (burn-off rate) during smelting.

Improved Smelting Efficiency: The high density of the cakes allows for faster sinking and melting in the furnace, reducing slag and saving energy and time.

Cleaner and Environmentally Friendly: The pressing process squeezes out some cutting fluid, reducing pollution and resulting in cleaner recycled metal.

Automation and Improved Working Environment: Enables automated collection, lifting, pressing, and unloading of aluminum shavings, reducing manual labor intensity and maintaining a clean workshop.

Main Working Principle

Collection and Conveying: Dispersed aluminum shavings are collected into the hopper of the briquetting machine via a screw conveyor or elevator.

Pre-compression and Forming:

The main hydraulic cylinder drives the pressure head, pushing the aluminum shavings from the hopper into the mold cavity.

Under immense pressure (typically ranging from tens to hundreds of tons), the aluminum shavings are compressed and compacted.

Pressure Holding and Forming: The pressure is held briefly at the highest point to allow the briquette to solidify and stabilize its structure.

Expelling and Discharging: After compression, the discharge gate on the mold side opens, and another hydraulic cylinder (push cylinder) ejects the formed aluminum briquette, completing one work cycle.

Main Types of Equipment

Vertical Briquetting Machine: Compact structure, small footprint, suitable for small to medium production volumes and workshops with limited space.

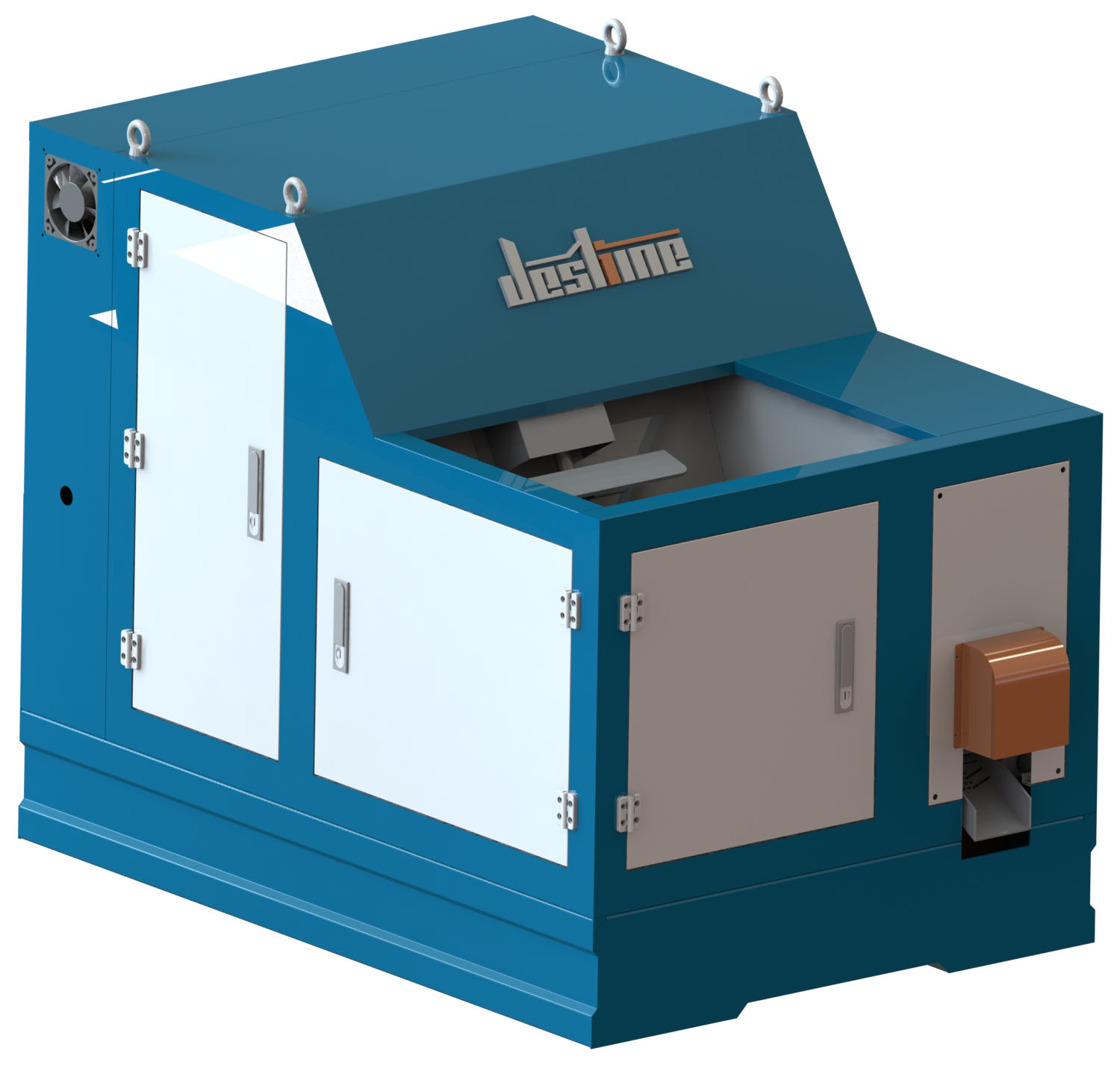

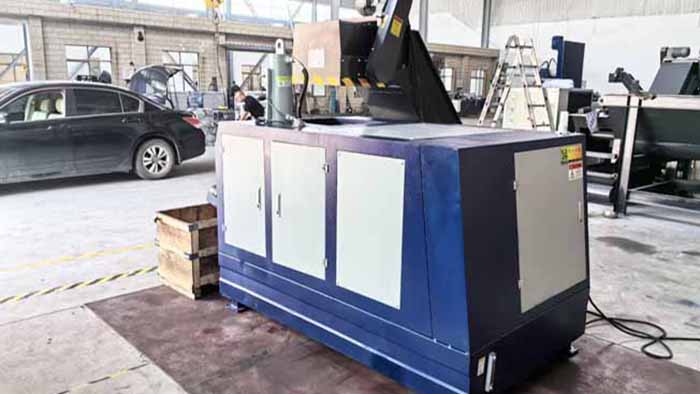

Horizontal Briquetting Machine: Good stability, easy to automate feeding and discharging, large processing capacity, the most common type in industry.

Based on Automation Level:

Manual/Semi-automatic: Requires manual assistance for feeding or cycle control.

Fully Automatic: Integrates with a centralized chip removal system and conveyor to achieve fully unmanned operation from chip removal to cake forming.

Core Components:

* Main Frame: Welded from high-strength steel plates, it withstands the main working pressure.

* Hydraulic System: The core power source, including a hydraulic pump station, cylinders, control valve groups, and pipelines. Its pressure and stability directly determine the density and quality of the cake.

* Mold (Cavity): Determines the shape (round cake or square brick) and size of the cake.

Electrical Control System: PLC controlled, enabling automatic cycling, adjustable parameters such as pressure and holding time, and equipped with safety interlocks and fault diagnosis functions.

Feeding System: (For automated models) Screw conveyor, elevator, etc

Key Selection Considerations

Processing Materials: Primarily for aluminum shavings (including aluminum alloys), but also suitable for copper shavings, cast iron shavings, etc. Different materials require different unit pressures; aluminum shavings require relatively lower pressure.

Output Requirements: Select the appropriate model based on the daily/hourly output of aluminum shavings (kg or cubic meters).

Pad Size and Density: Select the die and pressure rating based on the pad specifications (diameter, weight, density) required by the recycling plant or customer.

Automation Level: Decide whether to choose a semi-automatic or fully automatic production line based on budget and manpower availability.

Equipment Quality and Brand: Pay attention to the rigidity of the main frame, the brand of hydraulic components (e.g., Rexroth, Parker, etc.), and the stability of the electrical control system.

After-Sales Service: The reliability of installation, commissioning, training, and subsequent maintenance services is crucial.

Application Areas

Automotive Parts Manufacturers

Aerospace Parts Processing Plants

General Machining Workshops

Aluminum Alloy Profile and Product Manufacturers

Professional Metal Recycling Companies

Usage Precautions

Safety First: Never put your hands or tools into the extrusion area while the equipment is running. Ensure safety doors and photoelectric protection devices are effective.

Avoid material mixing: Avoid mixing and pressing shavings from different materials such as steel and aluminum to prevent affecting the purity of recycled materials.

Regular maintenance: Replace hydraulic oil and filters on time, check oil pipe joints, tighten bolts, and ensure long-term stable operation of the equipment.

Material pretreatment: Long shavings may need to be crushed by a crusher to ensure uniform and smooth pressing.

In summary, aluminum shaving pressing machines are one of the key pieces of equipment for modern metal processing enterprises to achieve cost reduction, efficiency improvement, cleaner production, and resource recycling. Investing in a suitable pressing machine can not only quickly recover the investment through reduced losses and transportation costs, but also improve the factory's automation level and environmental image.
