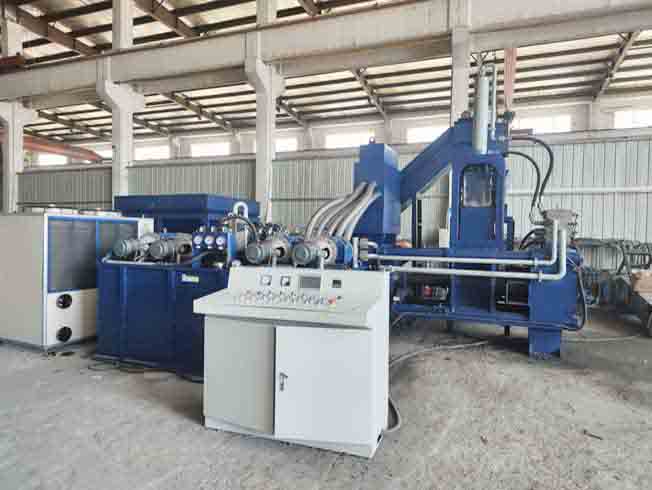

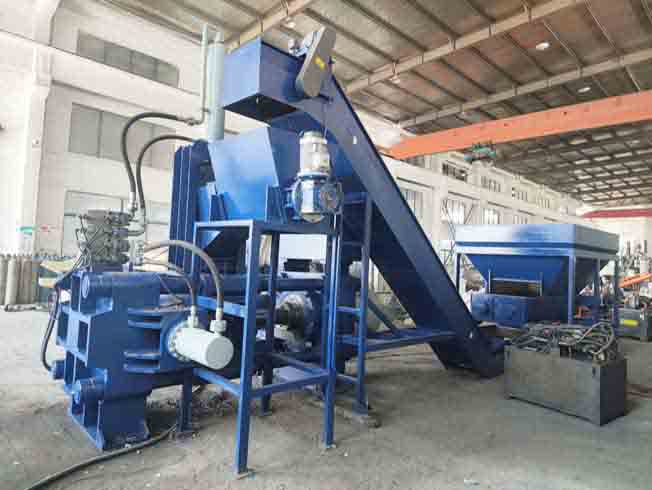

A Metal Chip Shredder and Compactor Machine is a heavy-duty industrial equipment designed to process metal chips, swarf, and other metal waste generated during machining operations (such as milling, turning, drilling, etc.). Its primary purpose is to reduce the volume of scrap metal, improve handling, recycling efficiency, and lower transportation and disposal costs.

Here’s a comprehensive overview of this machine:

Key Features & Functions

1. Shredding Capability

- Breaks down large or irregularly shaped metal chips into smaller, uniform fragments.Uses high-torque cutting blades or hammers to shred ferrous (e.g., steel, iron) and non-ferrous metals (e.g., aluminum, copper).

2. Compaction/Compression

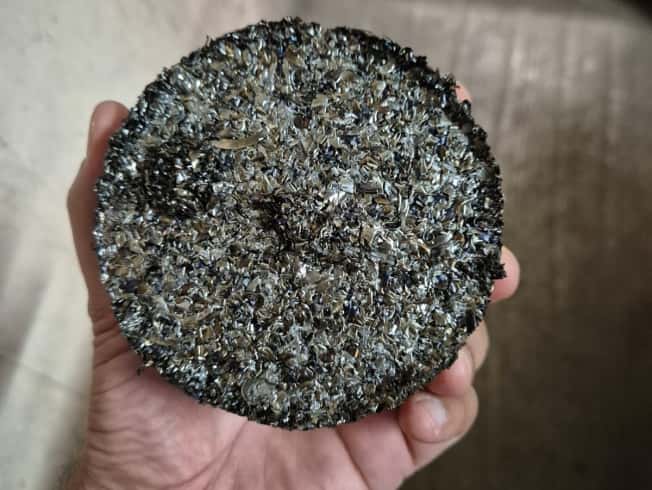

- Compresses shredded metal into dense, manageable bales or blocks.Increases material density by up to 80%, reducing volume significantly.

3. High Efficiency & Throughput

- Designed for continuous operation in production environments.Can handle tons of metal per hour depending on model size.

4. Versatile Material Handling

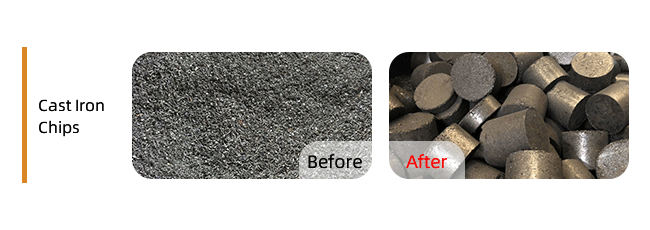

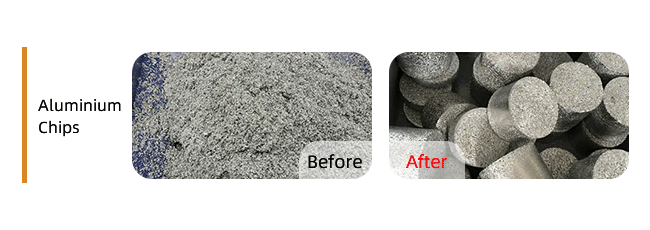

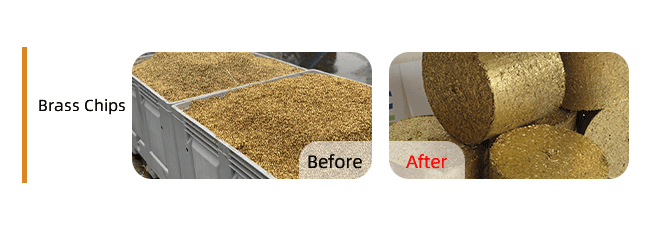

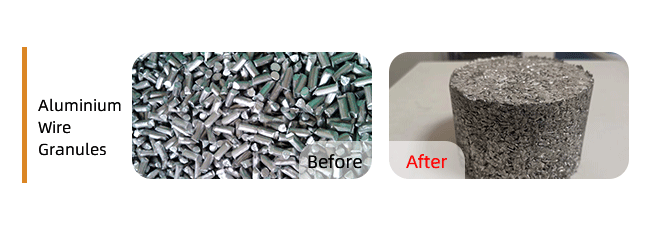

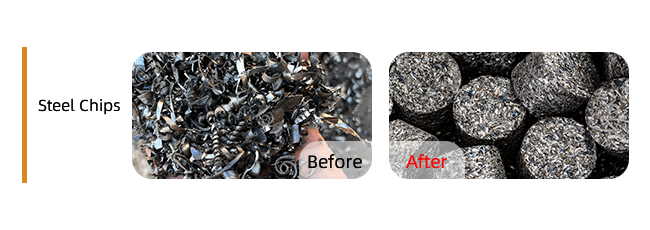

- Processes various types of metal waste:Steel.Aluminum.Brass.Stainless steel.Cast iron.Handles both dry and oily chips (some models include oil separation systems).

5. Automated Operation

- Fully automated feeding systems (conveyor belts, hopper feeders).PLC (Programmable Logic Controller) for precise control and monitoring.

6. Safety & Durability

- Heavy-duty construction with wear-resistant components.Safety interlocks, emergency stops, and protective guards.Designed for harsh industrial environments.

7. Oil Separation Option (Optional)

- Some advanced models include centrifugal or gravity-based oil extraction systems.Recovers valuable coolant/oil for reuse, reducing waste and environmental impact.

Common Applications

- Automotive manufacturing plants.Aerospace and defense industries.Metal fabrication shops.Recycling centers.Machinery and tooling facilities

Types of Machines

| Type | Description |

| Single-Shaft Shredder + Compactor | Ideal for mixed metal scrap; combines shredding and compaction in one unit. |

| Double-Shaft Shredder | Used for higher capacity processing; better for tough materials like thick steel. |

| Hydraulic Baler + Shredder Combo | Shreds first, then compresses into bales for easy transport. |

| Continuous Feed Systems | For high-volume production lines with automatic feeding. |

Benefits of Using a Metal Chip Shredder & Compactor

- Reduces storage space needed for scrap metal.Lowers transportation costs due to compacted weight/volume ratio.Increases resale value of scrap metal (denser = more profitable).Improves workplace safety by eliminating loose, sharp metal debris.Supports sustainability by enabling efficient recycling.Minimizes environmental impact through oil recovery and reduced landfill use.

Technical Specifications (Example – General Range)

| Parameter | Typical Value |

| Capacity | 1–10 tons/hour |

| Power Requirement | 30–150 kW |

| Feed Size | Up to 150 mm (varies by model) |

| Output Density | 1.5–2.5 tons/m³ |

| Hydraulic Pressure | 150–250 bar |

| Control System | PLC + HMI touchscreen |

| Noise Level | <85 dB(A) |

Tips When Choosing One

1. Assess your scrap volume and type – Match machine capacity to your daily output.

2. Consider oil content – If your chips are oily, opt for an oil separation system.

3. Check blade durability – Look for hardened steel or replaceable blades.

4. Service & support availability – Ensure local technical support and spare parts access.

5. Energy efficiency – Choose machines with variable speed drives (VSD) for energy savings.

Maintenance Tips

- Regularly inspect and sharpen/replace cutting blades.Lubricate moving parts and hydraulic systems. Clean oil separation units if equipped.Monitor motor temperature and vibration levels.Follow manufacturer’s maintenance schedule.
